When the forming section runs fast but punching cannot keep up, material piles up. When the line stops for cutting and restarts after each cut, output drops. No matter how fast the forming section runs, if the downstream steps cannot keep pace, the whole shelf forming machine production line loses capacity.

The real question is whether punching, cutting, and collecting are integrated into a continuous process.

Applications for This Shelf Forming Machine Production Line

This shelf forming machine production line forms rack uprights in two common profiles: 65×80mm and 65×100mm. I

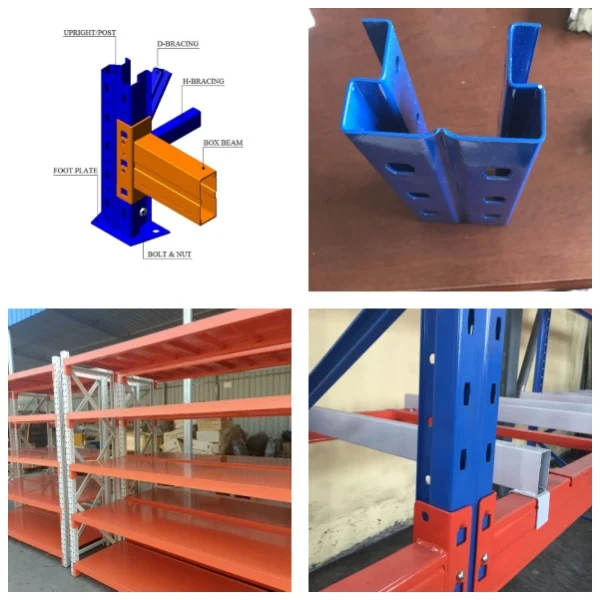

The profiles produced by this equipment are used in:

• Rack uprights and beams, which form the vertical and horizontal framework of the entire rack system

• Shelves and support bars, which carry loads and enhance stability

• Storage racks for logistics centers, e-commerce warehouses, and retail supermarkets

In short, this line produces the profiles that rack manufacturers need for logistics, retail display, and industrial manufacturing.

Advantages

• Online punching happens simultaneously with forming.

• Servo tracking shear cuts on the move.

• Adjustable dies serve both profile sizes.

• Hydraulic collecting table receives finished pieces.

• PLC coordinates all stations.

Technical Specifications

The following parameters come from the equipment configuration data:

How Punching, Tracking Shear, and Collecting Work Together on a Shelf Forming Machine Production Line

These three functions operate in sequence along the same shelf forming machine production line.

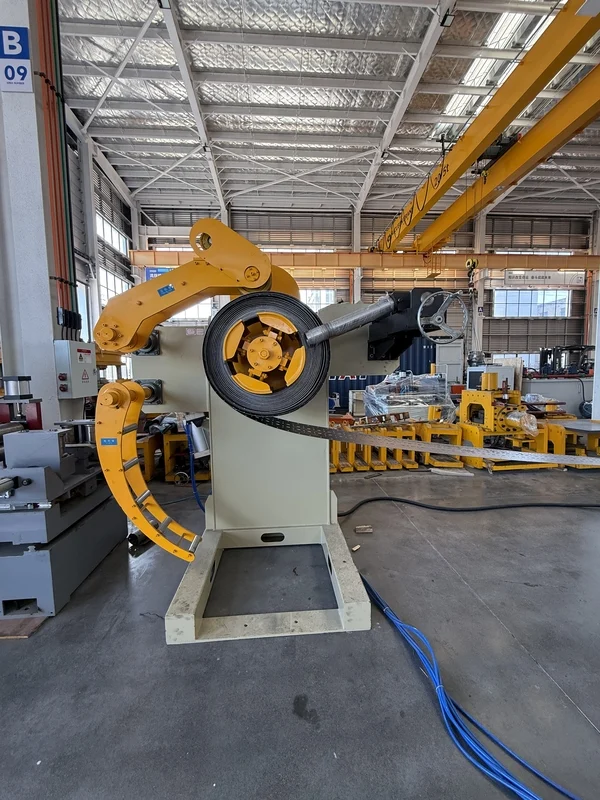

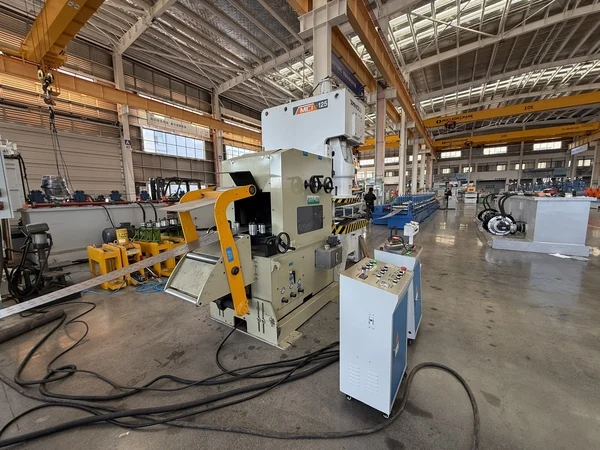

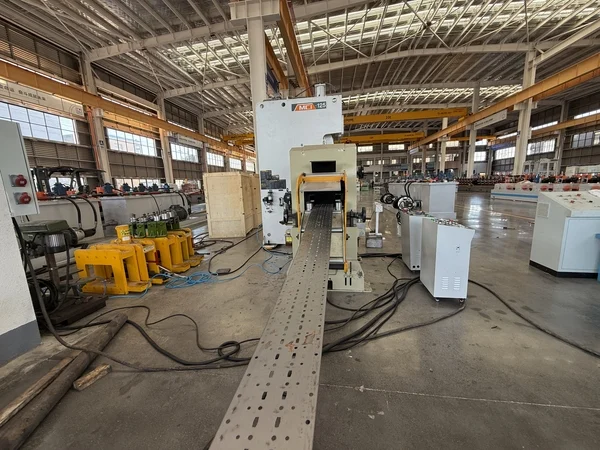

Material feeds from the decoiler through leveling and enters the punch press. The servo tracking shear cuts it to length on the move, and cut pieces drop onto the hydraulic collecting table.

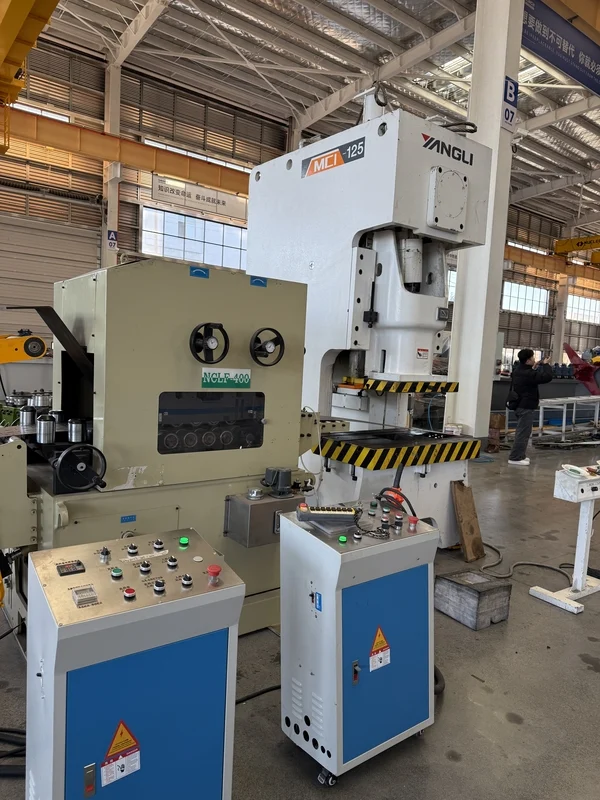

The punch press uses a die set that adjusts for the two section sizes. The line changes from 65×80 to 65×100 through the PLC.

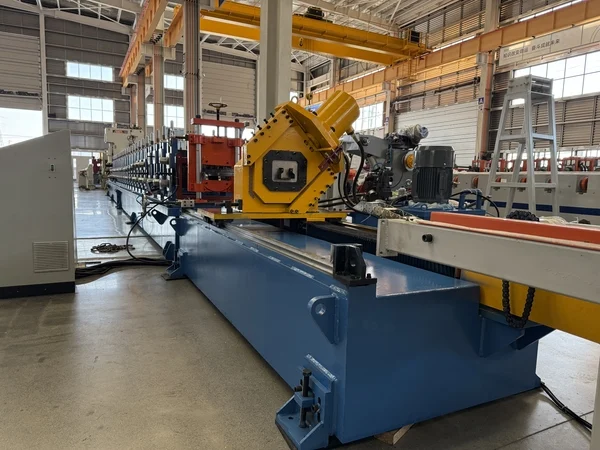

The tracking shear uses an encoder to measure length. It triggers the cut while the material continues moving, so the line maintains speed during cutting.

The collecting table receives pieces as they come off the shear, reducing manual handling at the end of the line.

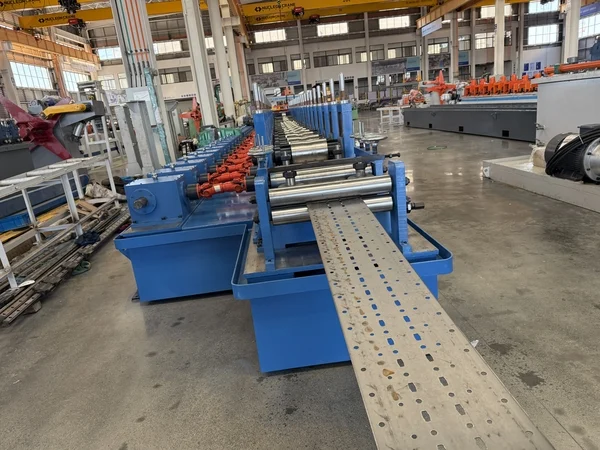

The line uses PLC coordinated control. Speed signals from the forming section feed back to the punch press and shear, so each station adjusts to match the others.

A shelf column tile rollforming machine produces similar components, though this line focuses on uprights with integrated punching and cutting. Other equipment types like pillar making machine t-beam forming machine serve different profile needs in the rack manufacturing process.

Evaluating a Continuous Production Line

When evaluating a continuous production line, the key point is not just the forming speed. Check whether the punch press can keep up with the forming speed, whether the tracking shear can cut accurately at full line speed, and whether the collecting table can handle the output rate.

These are the factors that determine whether a shelf forming machine production line delivers its rated capacity in real production conditions.

Back to the earlier point: a shelf forming machine production line is only as good as its ability to run continuously. Forming speed matters, but if punching, cutting, and collecting cannot keep up, the line will not deliver its potential. Look at how these functions work together, not just at the forming section alone.
