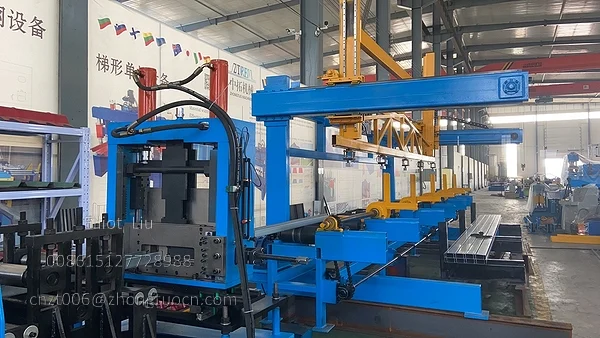

A fabrication shop running C and Z purlin orders faces a familiar problem. One day it is wall girts for a warehouse. The next day it is roof purlins for a solar mounting structure. Every order brings different sections, widths, and hole patterns. A c z solar purlin roll forming machine needs to handle these changes without losing a full shift to changeovers. This equipment is built exactly for that kind of mixed production environment.

C Purlin and Z Purlin – What Makes Them Different

C and Z purlins serve different structural roles. C purlins have both flanges on the same side, making them straightforward to install for wall girts and small to medium span roofs. Z purlins have flanges facing opposite directions, which allows lapping at supports to create continuous beam action over long spans.

Applications – Industries and Projects Using This Machine

This equipment produces C and Z purlins for the following industries and project types:

• Steel structure workshops: wall girts and roof purlins

• Logistics warehouses: rack support structures and roof systems

• Advertising structures: support frames for large billboards

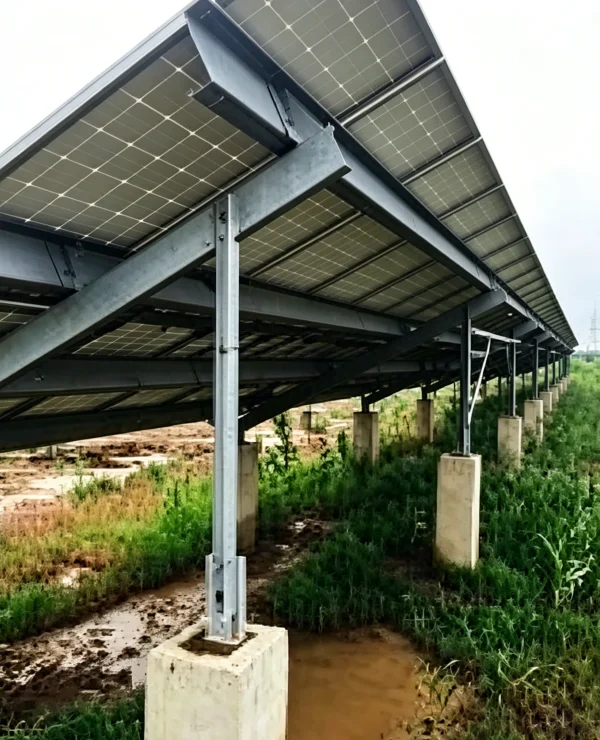

• Solar projects: mounting brackets and support frames for solar panels

• Agricultural facilities: greenhouse frames and livestock shelter structures

• Light steel buildings: wall studs and roof secondary structures

C purlins work well for walls and medium span roofs. Z purlins offer better load capacity through lapping, making them suitable for longer spans and higher wind pressure areas. Different applications require different sizes and hole patterns, which is why mixed production is unavoidable for most shops. An auto cz purlin machine is designed to handle exactly this kind of varied order environment.

Technical Parameters

Why Mixed Production Creates Production Problems

When a factory handles both C and Z purlin orders, the variety creates real operational drag. Each order can be a different section type, width, length, and hole pattern. The problems are straightforward:

Changeover time – switching from C to Z or from one width to another requires adjusting roller positions. Multiple changeovers per day add up to significant lost production time.

Operator skill requirements – different profiles need different roller settings. Workers must understand both C and Z parameters. Skilled operators are hard to find, and even harder to keep.

Scheduling friction – with frequent changeovers, the line stops and starts repeatedly. The more varied the orders, the less time the machine spends actually forming steel. A cz purlin roll forming machine fully automated addresses these issues by reducing the manual work involved in each changeover.

Advantages of the C Z Solar Purlin Roll Forming Machine

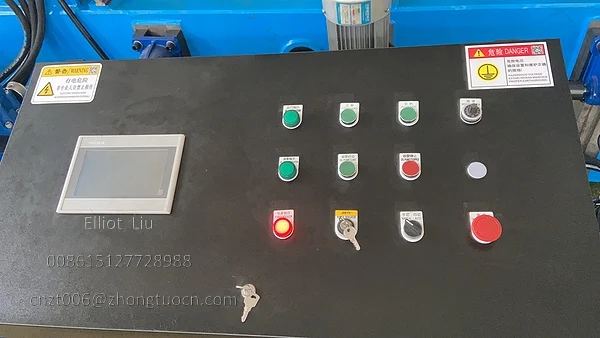

This equipment handles mixed profile production through PLC and touch screen integration. The system can be operated by a single person.

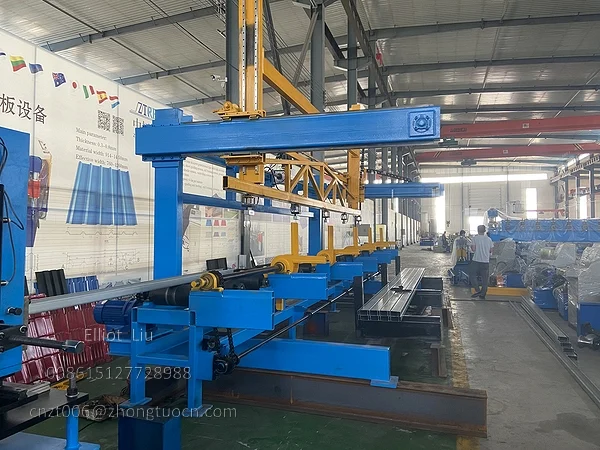

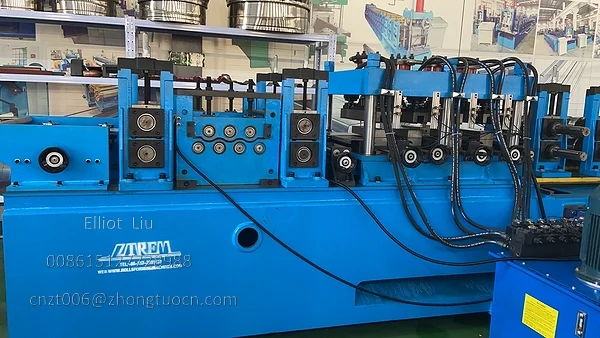

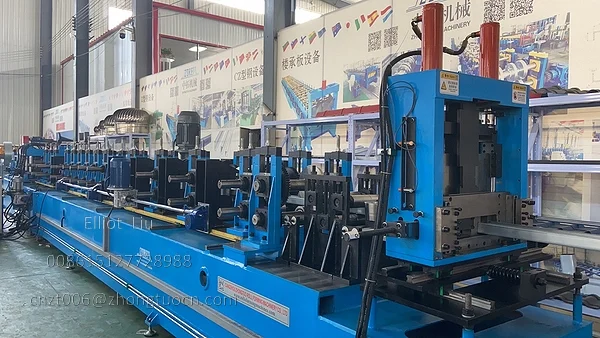

• PLC system controls decoiling, leveling, punching, forming, cutting, and stacking automatically

• Touch screen manages all parameters including profile type, width, length, and quantity

• One operator runs the whole line without additional station staff

• The system is designed for straightforward operation

• The cz interchangeable purlin machine adapts to different sections without reconfiguring hardware

How the Machine Supports Mixed C/Z Production

The equipment is designed specifically for shops running varied orders across different profile types.

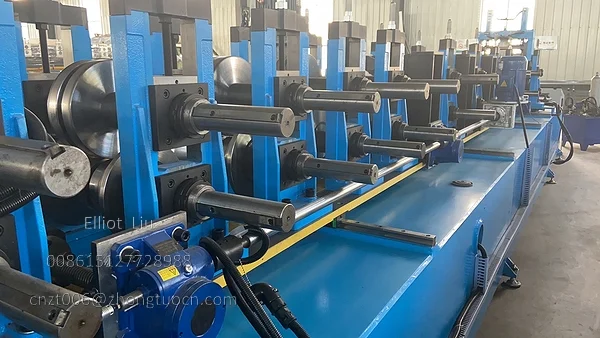

C/Z changeover without die changes

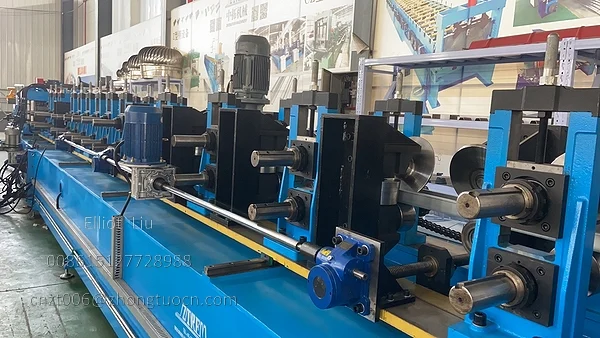

Switching between C and Z purlins does not require changing dies. The adjustable design moves roller positions to match different sizes. This reduces tooling change requirements compared to traditional setups.

Size range covers common profiles

The machine handles C purlin from 80 to 300 mm and Z purlin from 120 to 300 mm. Flange height, lip length, and thickness adjust to match most building and solar project specifications. The wide range means one machine covers what would otherwise require multiple setups.

Material flexibility

The system runs galvanized coil and low carbon steel across yield strengths from Q195 to Q355. This allows shops to take orders in different materials without equipment changes.

Decoiler capacity matches standard coils

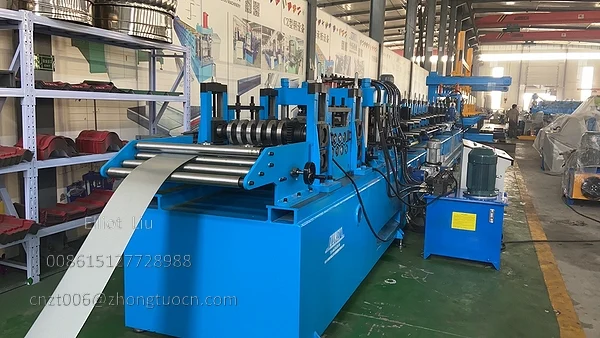

The decoiler handles 5 ton coils with inner diameters from 450 to 550 mm. Most standard coils load directly without additional handling equipment.

The challenge for most shops is not whether they can produce C or Z purlins. It is whether they can switch between them efficiently enough to stay profitable on mixed orders. A machine that adapts to different profiles without extensive downtime makes mixed production viable. With PLC control and touch screen operation, the c z solar purlin roll forming machine turns changeover from a bottleneck into a manageable part of the workflow.
