The upright pillar is the core load bearing part of any storage rack system. Many rack manufacturers face a common problem: when material thickness changes, the forming process becomes unstable. At 2.0mm it runs fine. Switch to 2.5mm and you get dimension deviations, surface scratches, or frame vibration. This is not the operator's fault. It comes down to whether the equipment design actually covers that thickness range.

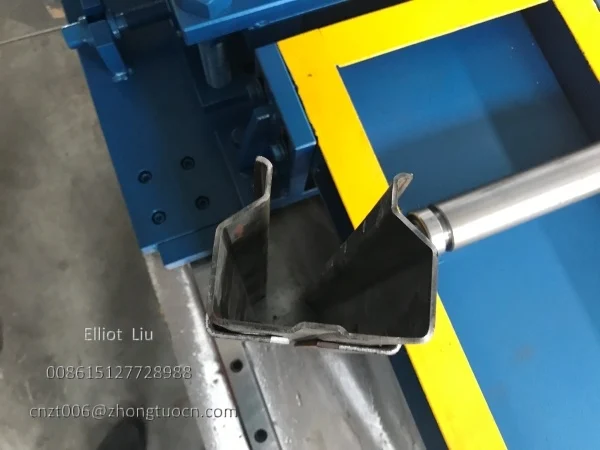

Our shelf uprights forming machine works with the 2.0 to 2.5mm thickness range. Every detail, from roller material to frame structure, from hydraulic system to drive method, matches the load requirements of this thickness range. This shelf uprights forming machine produces two section sizes: 65×80mm and 65×100mm. The forming speed stays consistent, making it suitable for batch production. Below we look at material adaptability, power configuration, and structural design to help you decide if this shelf uprights forming machine fits your production needs.

Applications

The uprights produced by this storage shelf upright rack forming machine are used in various storage and shelving systems. Different applications have different standards for load capacity, dimensional accuracy, and surface quality.

• Pallet racks and heavy duty racks in logistics centers

• High bay racks and automated warehouses in ecommerce fulfillment centers

• Raw material and finished goods storage in manufacturing plants

• Adjustable rack systems in third party logistics warehouses

• Display shelving in supermarkets and retail distribution centers

For each application, upright dimensional accuracy and load capacity affect rack safety and service life. The shelf uprights forming machine needs to maintain consistent output across different production runs. Different application scenarios place different demands on the machine's processing capability.

Advantages of This Shelf Uprights Forming Machine

This shelf uprights forming machine offers several practical advantages:

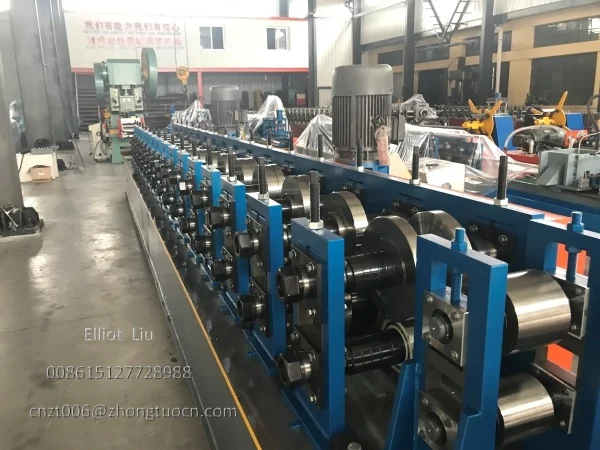

• 20 roller stations forming gradually. Each station takes only a small part of the total deformation. The material gets uniform pressure. The finished upright stays dimensionally stable. Beams lock in smoothly during assembly.

• Gcr12 hardened rollers for 2.0 to 2.5mm production. The rollers are hardened and wear resistant. The upright surface comes out smooth. The galvanized coating stays intact.

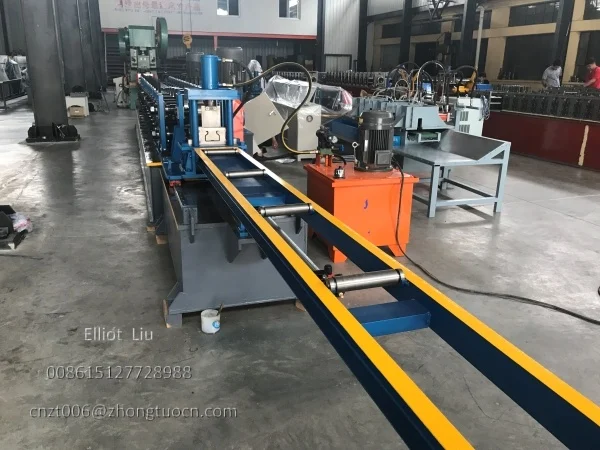

• Servo tracking shear. The shear moves with the strip during cutting. The shelf uprights forming machine keeps running at full speed. Output per shift is consistent.

• Two sections on one machine. Switch between 65×80mm and 65×100mm sections by recalling saved parameters from the PLC. No second production line needed. No frequent mold changes.



What Materials Can This Machine Process

This upright rack roll forming machine processes cold rolled steel and galvanized steel. The material thickness range is 2.0 to 2.5mm.

Thicker material needs higher forming force. A 2.5mm strip weighs more per meter than a 2.0mm strip. The pressure on rollers and the load on the frame both increase during forming.

Galvanized steel requires attention to the roller surface. The zinc coating is softer than the base material. If the roller surface is not smooth enough, it will leave scratches on the upright and damage the coating. The Gcr12 rollers are ground and polished so the shelf uprights forming machine can process galvanized steel without damaging the surface.

Why Material Thickness Matters for Equipment Selection

There is only 0.5mm between 2.0mm and 2.5mm, but the impact on the shelf uprights forming machine is real.

Thicker material means higher forming difficulty. Long term production of 2.5mm material puts higher demands on frame rigidity, roller hardness, and drive system torque than 2.0mm material.

Look at the machine's stability at your target thickness, not just the maximum thickness it claims to handle. This shelf uprights forming machine covers the 2.0 to 2.5mm thickness range. The combination of Gcr12 hardened rollers and a cast steel frame supports stability across this thickness range.

Key Components

Hydraulic System

The hydraulic system handles two tasks on this shelf uprights forming machine: decoiler tensioning and cutting action.

The decoiler tensioning uses hydraulic power to grip the inner ring of the steel coil. The tension stays constant. The coil does not loosen. The cutting action uses hydraulic power to drive the blade holder. The 11kW hydraulic power provides pressure for both operations. When the hydraulic system runs steadily, the shelf uprights forming machine does not stop from coil loosening or incomplete cuts.

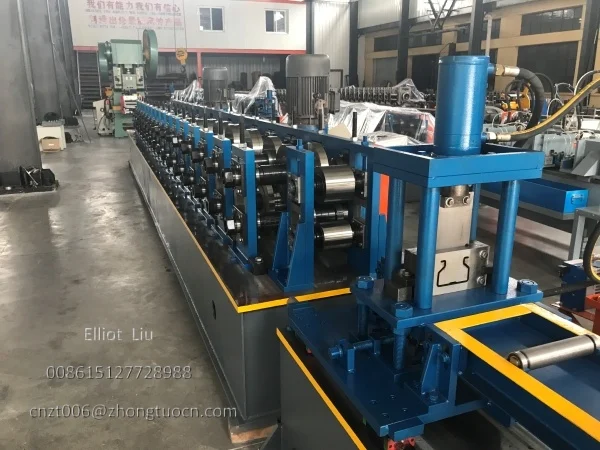

Forming Main Unit

The structure of the forming main unit affects the equipment's long term stability.

The forming main unit uses a cast steel frame. The drive system uses gearbox transmission. The combination supports stable operation during long term production of 2.0 to 2.5mm material on this shelf uprights forming machine.

Technical Specifications

About Our Company

We were founded in 2014. We specialize in the design and manufacturing of cold roll forming equipment. Our company provides forming solutions for the rack manufacturing industry. We also manufacture the shelf system steel upright rack making machine and other equipment for rack production. Our equipment exports to multiple countries and regions.

In addition to the shelf uprights forming machine, we also offer:

• Shelf Beam Roll Forming Machine

• Pallet Rack Upright Forming Machine

• C Purlin Roll Forming Machine

• Decking Roll Forming Machine

• Brace and Support Forming Machine

• Storage Rack Accessories Roll Forming Line



If you are evaluating a shelf uprights forming machine, bring your material thickness, section size, and daily output target. We can help confirm the right configuration. Voltage can be customized to your local standard. The control system supports multiple languages.
