At high bay or automated warehouse sites, a common issue is upright length deviation or hole position shifting from continuous processing. This makes beam insertion hard and slows down installation. Precision affects both efficiency and assembly quality. A good shelf upright machine focuses not just on forming speed, but on controlling length tolerance and hole accuracy through its configuration.

Applications

Uprights are the core load bearing frame. In automated warehouses, ecommerce high bay racks, and heavy duty pallet racks, dimensional consistency is key for smooth assembly.

These systems need more than accurate uprights. They also require compatible parts from a shelf support roll forming machine. Large hole deviations in continuous production will affect on site assembly.

Fittings from a shelf support bar machine must also align properly. Controlling forming and punching accuracy at the source supports project delivery.

Machine Advantages

To support precision demands, this equipment matches its mechanical structure and control system:

• Delta PLC and encoder record and feedback feed length data for length control.

• Servo tracking shear cuts on the fly at high speed without stopping the line.

• An 80 ton pneumatic press with adjustable dies handles punching for different profiles.

• The cast steel frame and gearbox drive provide rigid support for continuous operation.



Technical Specifications

Here are the basic specifications for this rack upright production line. Based on your workshop and production needs, some parameters can be customized upon evaluation.

Length and Hole Position Control

Managing cumulative errors from long lengths is the main challenge in size control.

Length control
The servo feed system and encoder measure material movement. Before the strip enters the forming unit, the system tracks the distance. When it reaches the PLC set value, it triggers the shear. The servo tracking shear cuts while moving with the material. The design target for length tolerance is 3m ± 1.5mm under specific operating conditions.

Hole position control

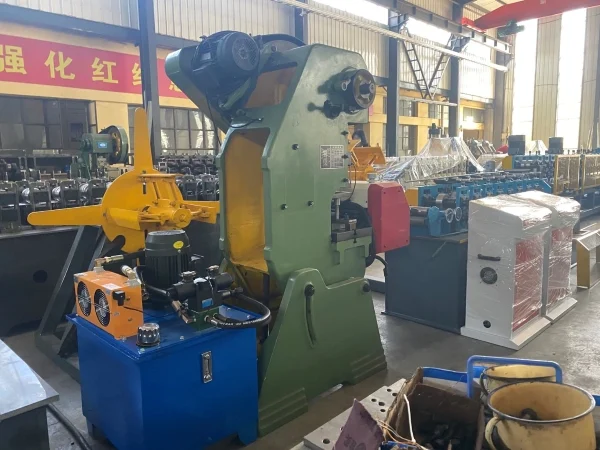

The 80 ton pneumatic press punches when it gets the position signal. The adjustable punching dies let one machine match different hole spacing requirements. The seven roller leveler helps remove internal stress from the coil. This reduces the chance of twist during forming, which helps maintain hole alignment.

Customization Options

Every client has different workshop space, output targets, and profiles. Therefore, the parameter settings for this equipment need evaluation based on actual conditions.

Beyond the core structure, layout, speed, profiles, and voltage can be customized. This flexible adaptation helps the machine fit your existing environment, minimizing modification trouble from space or power mismatch. Exact customization capabilities depend on your specific technical requirements.

Precision Checks and Maintenance

Precision relies on daily maintenance, not just factory settings. During setup and the first run, using calipers and gauges to spot check upright length and hole spacing helps keep sizes stable.

Managing wear parts is another key. The Cr12MoV shear blades and punching dies wear after long high frequency use. The free spare parts kit (including relays, travel switches, and encoders) and regular lubrication help the machine keep good cutting and punching quality over time.

When evaluating a shelf upright machine, speed is just one part of capacity. The real key to smooth on site assembly is how the servo length setting, encoder measurement, and punching system work together. Bring your target profiles, length requirements, and hole needs, and we can check and customize a full production plan for you.
