In shelf upright production, material and finished length are two requirements you cannot avoid. Some factories run into problems when they switch material thickness. Cold rolled steel runs fine, but galvanized steel leaves scratches. Or the uprights come out a few millimeters different in length, and workers have to sort them one by one during installation. These problems are not the operator's fault. They come down to whether the shelf pillar machine can match the material and hold length accuracy.

This shelf pillar machine is designed for cold rolled and galvanized steel from 2.0 to 2.5mm. Finished length is controlled automatically by PLC, with 3m length tolerance held within 1.5mm. Below we cover applications, machine advantages, material matching, length accuracy, and parameter configuration.

Applications Rack Upright Production Scenarios

This shelf pillar machine is used in continuous upright forming lines at rack manufacturing plants. The upright is the vertical support frame of a rack. Volume production demands clear material matching and length consistency.

The uprights it produces go into the following rack systems:

• Pallet racks and heavy duty racks in logistics centers

• High bay racks and automated warehouses in ecommerce fulfillment centers

• Raw material and finished goods storage in industrial plants

• Adjustable rack systems in third party logistics warehouses

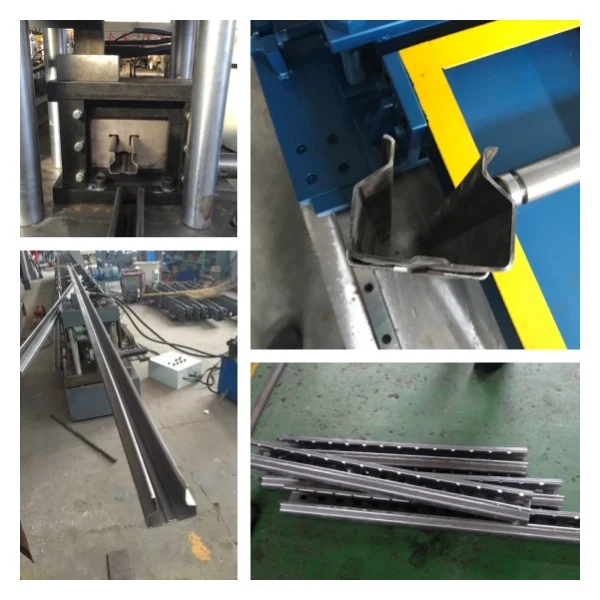

An upright rack roll forming machine produces these uprights, which later go through welding, assembly, and installation at the warehouse site. The dimensional accuracy of the upright affects how smoothly the rack system goes together.

Machine Advantages How This Machine Matches Material and Precision

Here is how this shelf pillar machine matches material and precision requirements.

• Servo tracking shear cuts to the set length while the material keeps moving, so the line does not stop for each cut.

• PLC length control supports consistent length for uprights in the same batch.

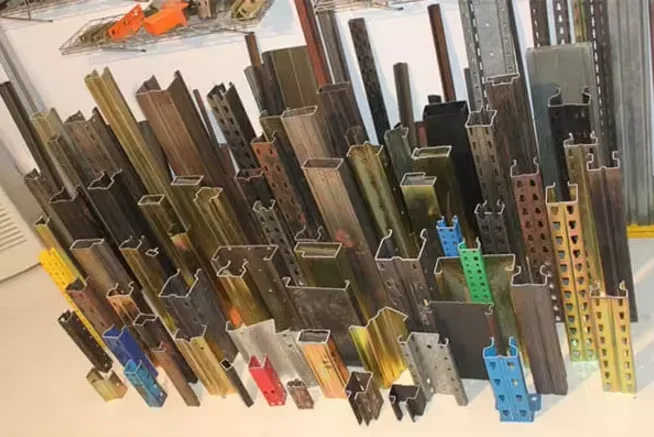

• Two sizes on one machine lets you switch between 65×80 and 65×100 by recalling saved parameters.

A storage shelf upright rack forming machine can meet both material matching and length accuracy requirements. For factories that run multiple upright sizes, one machine covers two profiles.

Material Matching Cold Rolled and Galvanized Steel Processing

This machine performs upright rack roll forming on cold rolled and galvanized steel from 2.0 to 2.5mm. Different material thickness and surface treatment place different demands on the equipment.

2.0 to 2.5mm Thickness Production Significance

A 2.5mm sheet is thicker than a 2.0mm sheet. During forming, the pressure on the rollers and the load on the frame both increase. If the frame lacks rigidity or the rollers lack hardness, long term production of thicker material may lead to dimension drift. The 20 rollers and cast steel frame of this machine are designed for this thickness range.

Surface Protection for Galvanized Steel

The zinc coating is softer than the base material. If the roller surface is not smooth enough, it may leave scratches on the upright and damage the coating. This shelf pillar machine uses Gcr12 quenched rollers for forming galvanized steel.

Length Accuracy Why 3m Plus or Minus 1.5mm Matters for Installation

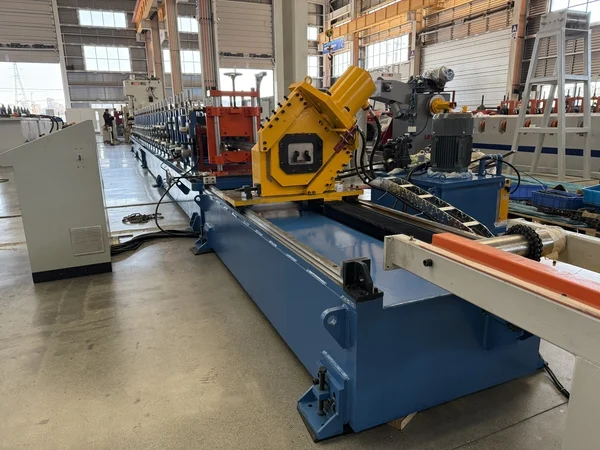

The shelf pillar machine holds a 3m length tolerance within 1.5mm. This directly affects installation efficiency. If uprights in the same batch differ in length, workers have to reposition them repeatedly during assembly. A tight tolerance means uprights in the same batch are basically the same length.

How Length Tolerance Affects Rack Assembly

When tolerance is too large, the connection between upright and beam may have gaps or misalignment. Length consistency supports smoother rack assembly and installation.

Length Measurement and PLC Control

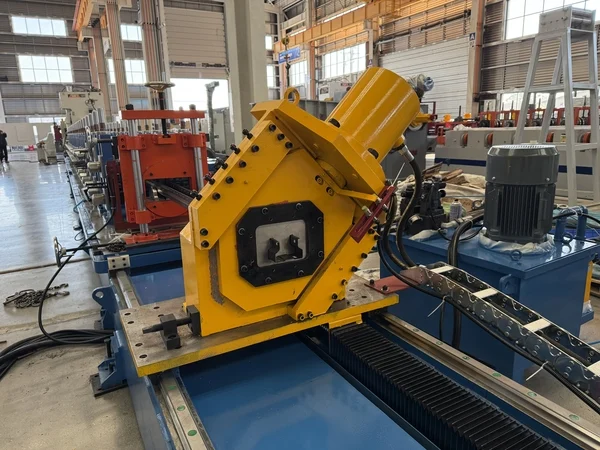

The shelf pillar machine uses a PLC to control length. The system measures the running length while the material moves. When the length reaches the value set in the PLC, the PLC sends a signal to trigger the cutting action. The whole process needs no manual measurement. The shear moves with the material and cuts on the move. Each upright is cut to the same length.

Technical Specifications

The table below lists the main specifications of the shelf pillar machine.

Voltage Adaptation 380V and Custom Options

The shelf pillar machine runs on 380V 50Hz three phase as standard. If the local voltage differs, customization is available. Voltage adaptation is an item to confirm at purchase. Tell the supplier your local voltage standard before production, and the machine will be configured accordingly.

Back to the opening question: do material thickness, finished length, and electrical conditions match? When evaluating a shelf pillar machine, check whether material matching, length accuracy, and electrical conditions fit your production needs. The specified length tolerance and the material thickness range determine whether the machine can produce qualified rack uprights.
