A steel slitting line solves the width difference between mill supplied coils and downstream production needs. Steel coils usually come in standard widths. But downstream lines often need strips of different widths for their dies, forming rollers, and welding units.

This width difference is why coil slitting exists. The machine slits wide coils lengthwise into narrow strips that downstream lines can use directly.

Why Wide Coils Need Slitting

Steel mills use continuous rolling and supply coils in standard widths. Downstream manufacturing equipment, dies, and forming roller sets are designed for specific widths. If the width does not match, the material cannot enter the production line directly.

Downstream factories have two choices. They can buy pre slit narrow strip from outside. Or they can set up a slitting line machine metal in house to handle the conversion.

Buying pre slit strip means depending on external suppliers for specifications and scheduling. Setting up an in house line improves flexibility in material specification adjustment and production scheduling.

Applications: Where Slit Strip Is Needed

Different industries need slit steel strip mainly because their production equipment only accepts specific widths:

• Automotive stamping: The feed width of stamping dies is fixed. Wide coils cannot go directly into the stamping line. They need to be slit to the width that matches the die.

• Welded tube production: Continuous welding requires accurate strip width. Consistent slit strip width helps maintain stable welding results.

• Construction C/Z purlins: Cold roll forming lines feed material at a fixed width. Uniform slit strip width allows the forming rollers to bite steadily.

• Electrical cores: Transformers and motor cores use stacked silicon steel strips. Width affects the stacking factor and magnetic circuit performance.

These industries all share one need. Their production lines only accept specific widths. A steel slitting line is the equipment that processes wide coils into those specific widths.

What a Slitting Machine Solves

Back to the original question: what is the purpose of a slitting machine?

The purpose is not simply to cut coils smaller. Its core value is to solve the width mismatch between wide coils and narrow strip needs. A steel slitting line helps factories with the following:

• Specification conversion: convert steel coils of standard mill width into various widths needed by downstream lines

• Reduced external dependence: in house slitting capability reduces reliance on external narrow strip supply

• Greater autonomy: more control over material specification adjustment and production scheduling

• Order flexibility: support strip width conversion for different orders

These points together describe the production purpose of a steel slitting line.

Machine Advantages

This automatic metal steel coil slitter machine offers several advantages through its configuration.

Dual looper buffer design: There is a looper between the uncoiler and the slitting head, and another between the slitting head and the recoiler. The loopers help balance speed differences between upstream and downstream processes.

A steel slitting line with width accuracy control within plus or minus 0.05mm produces strips with consistent width. This can reduce the need for additional processing.

PLC centralized control: The whole line uses PLC variable frequency control. The main control panel allows one button start. The control system helps manage speed changes.

Standardized wear parts: Seals, bearings, hydraulic fittings, and electrical components use standard specifications, making daily maintenance and replacement easier.

Material range: Both carbon steel and galvanized steel can be processed. Thickness covers 0.3mm to 3.5mm, and width covers 500mm to 1600mm.

These configurations help factories complete slitting with more stable quality and keep specification conversion capability in their own hands.

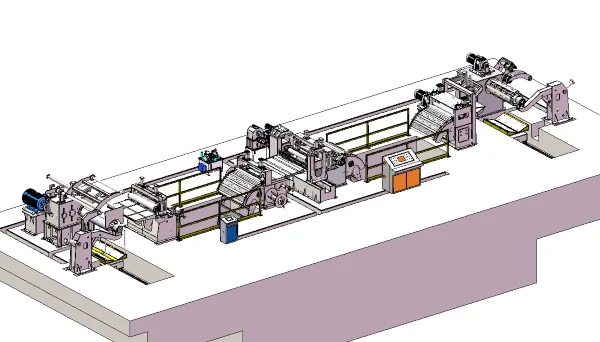

Basic Coil Slitting Process

The process runs continuously from coil entry to finished coil output in the following order:

• Entry coil car delivers the coil to the uncoiler

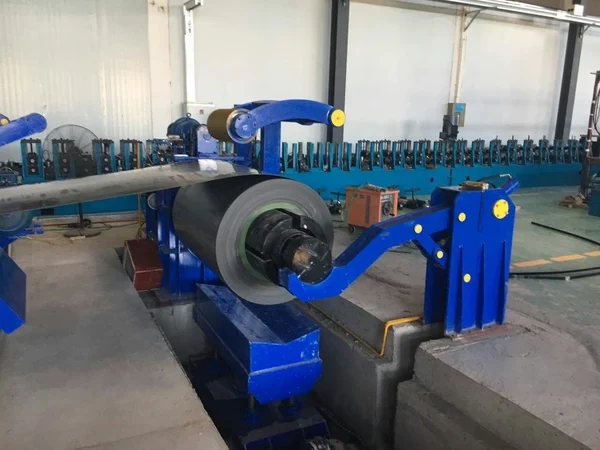

• Uncoiler expands from the coil inner diameter to secure it, then rotates to unwind

• Press and pinch device pushes the strip forward

• Hydraulic cutter trims the uneven coil head

• Looper 1 buffers speed difference between uncoiling and slitting

• Side guide device keeps the strip centered

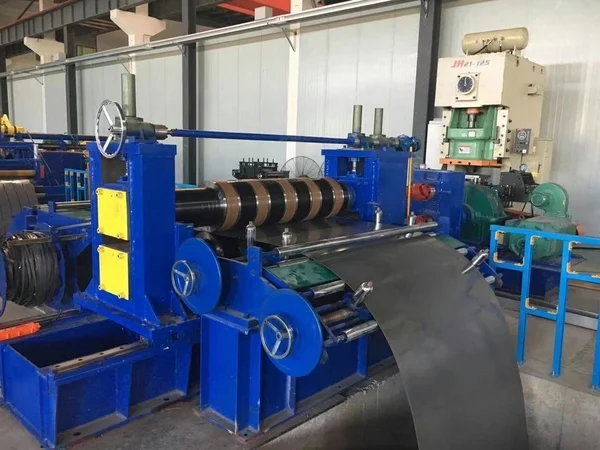

• Slitter uses circular blades to cut the strip lengthwise into multiple narrow strips

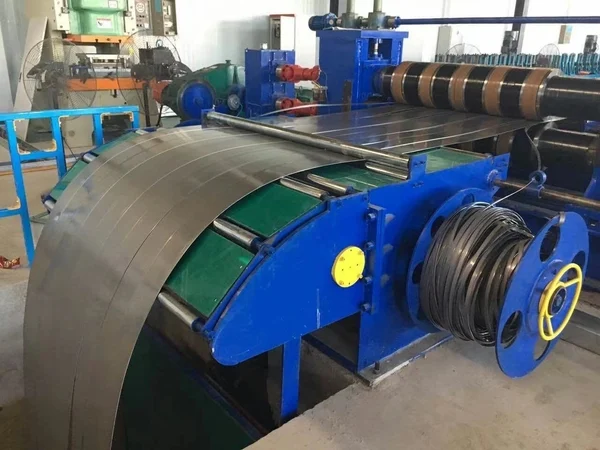

• Scrap winder collects edge trim from both sides

• Looper 2 buffers speed difference between slitting and recoiling

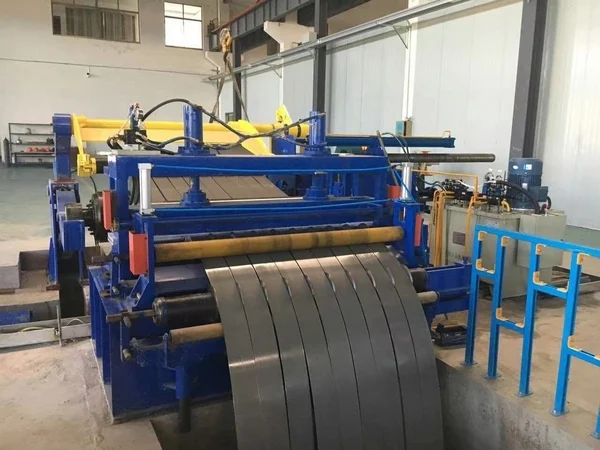

• Tension stand establishes stable recoiling tension

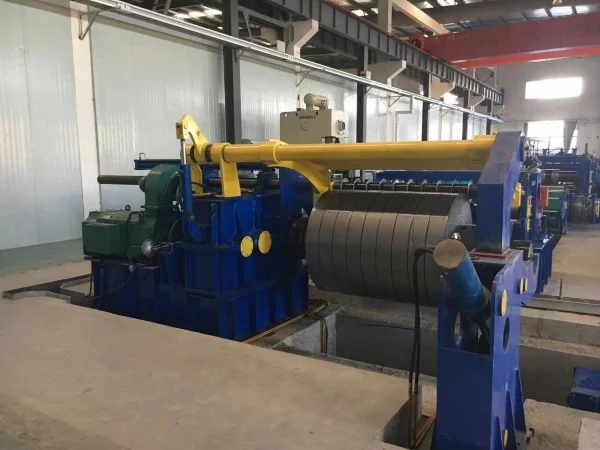

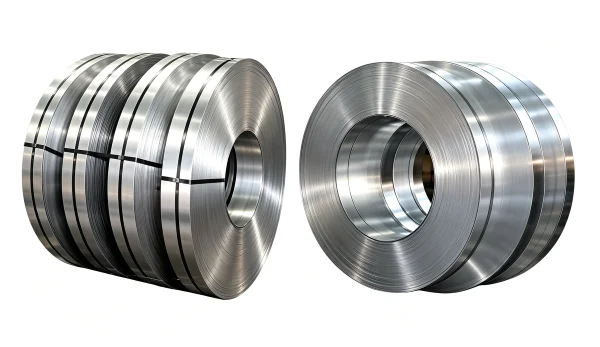

• Recoiler winds narrow strips into tight, uniform finished coils

• Exit coil car carries finished coils away

A steel slitting line performs these steps in sequence to complete lengthwise slitting and recoiling.

Machine Parameters

The following are actual production parameters of this steel slitting line:

These parameters define the machine's working range, including material thickness and width, coil size and weight, slitting accuracy, installation space, and operating requirements.

The purpose of a steel slitting line is to slit wide steel coils into narrow strips that meet the width requirements of downstream production lines. This width conversion allows different manufacturing processes to receive the coil specifications they need.
