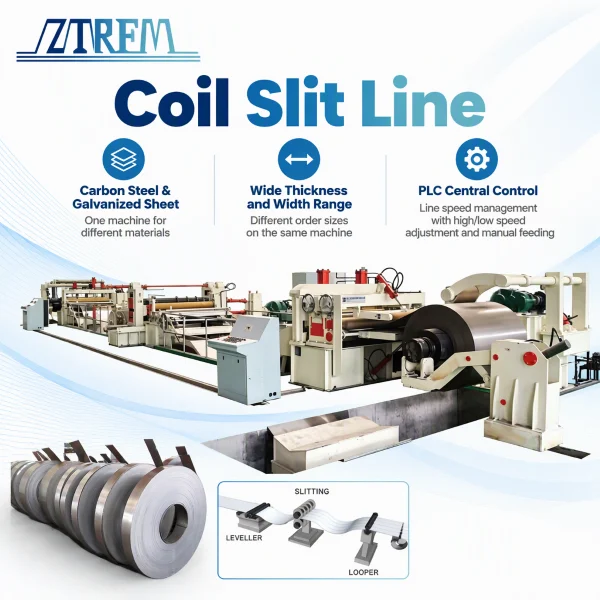

A coil slit line coordinates uncoiling, slitting, and recoiling. These three sections can show speed changes due to material and process conditions. Without buffer capacity between them, adjacent stations can interact directly through strip tension and material flow. This line is equipped with two loopers, one between uncoiling and slitting, and one between slitting and recoiling. The loopers provide material buffer capacity for short term speed variations.
Application Scenarios for Slit Narrow Strip
The narrow strips from this coil slit line go to typical downstream manufacturing scenarios:
-
Automotive stamping: raw material for body structural parts, exhaust pipes, and seat frames.
-
Welded tube production: continuous welding feedstock for round tubes, square tubes, and rectangular tubes.
-
Construction profile processing: base material for C purlins, Z purlins, roof panels, and wall panels.
-
Home appliance manufacturing: shells and internal structural parts for refrigerators, washing machines, and air conditioners.
Actual suitability depends on material specifications, strip requirements, and project conditions.
How Dual Loopers Help the Line Run in Coordination
On this coil slit line, Looper 1 sits after the hydraulic cutter and before the side guide device. It buffers the speed difference between uncoiling and slitting. The Looper 1 pit measures 4500mm by 2000mm by 3000mm, with 2 sets of photoelectric eyes to control speed buffering.
Looper 2 sits after the scrap winder and before the tension stand, buffering the speed difference between slitting and recoiling. Its pit measures 4000mm by 2000mm by 5000mm. The loopers provide buffer capacity within a certain control range, but do not eliminate speed differences. The tension stand handles tension control.
How Hydraulic and Electrical Systems Work Together
This coil slit line uses hydraulic power and electrical control. The hydraulic system includes a hydraulic station, pipes, and connectors, powering the uncoiler expansion, press and pinch device, hydraulic cutter, and looper lifting.
The electrical system uses PLC variable frequency control for line speed adjustment and centralized control. The main control panel provides high and low speed adjustment and manual feeding.
Hydraulics drive the actuators, while electrical control manages speed and coordination. The stability of a slitting line machine metal depends on how well these two systems work together.
Machine Advantages
Dual loopers reduce station speed interaction: Looper 1 and Looper 2 buffer speed differences between sections, supporting flexible coordination.
Hydraulic and electrical work as one team: Hydraulics drive the actuators, while electrical control manages line speed and centralized operation.
This automatic metal steel coil slitter machine covers carbon and galvanized steel: Thickness from 0.3mm to 3.5mm and width from 500mm to 1600mm suit different order requirements.
Centralized control simplifies daily operation: Operators manage the line from one main control panel, with manual feeding available for threading or abnormal handling.
Machine Parameters
| Parameter | Specification |
|---|---|
| Production line length | 23 meters |
| Production line width | 8 meters |
| Material thickness range | 0.3mm to 3.5mm |
| Material width range | 500mm to 1600mm |
| Maximum coil outer diameter | 1600mm |
| Maximum coil weight | 15 tons |
| Slitting width accuracy | ±0.05mm |
| Line direction | Right to left |
| Operators required | 1 mechanical engineer and 2 common workers |
Practical Impact on Station Coordination and Production Continuity
When orders need continuous runs, this coil slit line uses its dual loopers to reduce direct speed interaction between adjacent sections. Material in Looper 1 keeps feeding the slitter during uncoiler speed adjustments, and Looper 2 absorbs slitter fluctuations so the recoiler does not adjust constantly.
During coil changes and specification changes, the loopers provide buffer capacity between sections. Actual operation follows the production process. Looper buffering does not mean automatic specification changes or operation without stopping. How this slitting line machine metal performs during these operations depends on the process and site coordination.
Summary
The hydraulic system provides power output for the relevant actuators, and the electrical system handles line speed adjustment and centralized control. Looper 1 buffers the speed difference between uncoiling and slitting, and Looper 2 buffers the speed difference between slitting and recoiling. Together, the two loopers give the three sections some adjustment room. The configuration of this coil slit line centers on line coordination and continuity.
