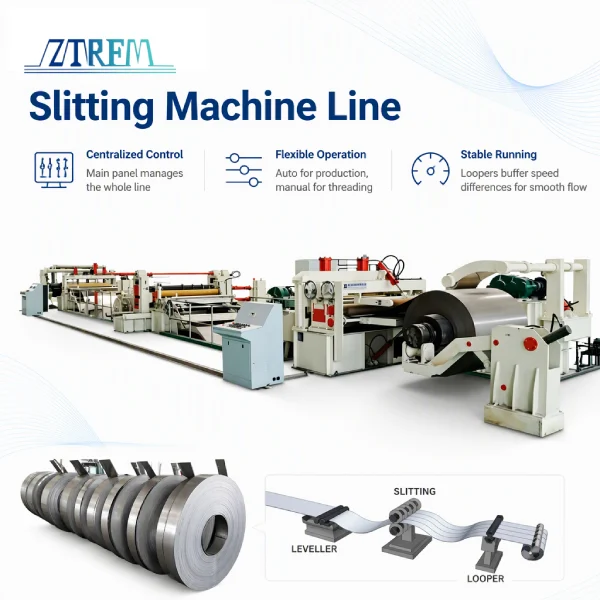

A slitting machine line moves a steel coil from loading to finished coil unloading through a series of units. If the units don't work together well, operators step in often. When specs change or delivery is tight, manpower becomes a problem. This automation solves that production organization issue.

This slitting machine line uses centralized PLC control. The following sections explain how automation runs from uncoiling to recoiling, how PLC control simplifies daily work, and what value these configurations bring to production organization.

What Production Scenarios Need Full Line Automation

These production scenarios have high requirements for continuous and stable operation:

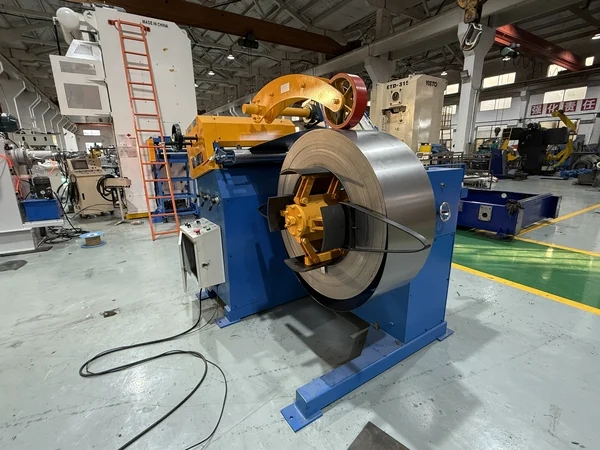

• Automotive stamping feed: A stamping line needs continuous feed once it starts. Stable feed and narrow strip width that matches the die keep the stamping line running.

• Welded tube production: Continuous welding needs steady strip feed. Consistent output width from the slitting line helps keep welding stable.

• Construction profile processing: When a cold roll forming line runs continuously, operators focus on forming quality. Stable feed and uniform width from the slitting line mean operators don't have to split their attention.

These scenarios share one point: the line can't just cut. It also needs to minimize manual intervention during coil changes and speed adjustments. The full line design of a slitting machine line is built around this goal.

How the Slitting Machine Line Works from Coil to Finished Coil

Full line automation depends on each unit doing its job and connecting in a fixed order. This slitting line machine metal includes mechanical units plus hydraulic and electrical systems. The coil enters at one end, and finished coils exit at the other.

Unit Sequence

The unit sequence is as follows:

Entry coil car → Decoiler → Hydraulic press and pinch device → Hydraulic cutter → Looper 1 → Side guide device → Slitter → Scrap winder → Looper 2 → Tension stand → Recoiler → Exit coil car → Hydraulic system → Electrical system

The entry coil car sends the coil to the decoiler, which grips it from inside and unwinds. The press and pinch device pushes the strip forward, and the hydraulic cutter trims the uneven head. Looper 1 buffers between uncoiling and slitting. The side guide keeps the strip centered into the slitter. The slitter cuts the strip lengthwise into narrow strips. The scrap winder collects edge trim. Looper 2 buffers again. The tension stand builds tension, and the recoiler winds finished coils. The exit coil car carries them away. Hydraulic and electrical systems power and control the line.

Control Method

Running multiple units by pressing buttons one by one is not realistic. This slitting machine line uses PLC variable frequency control for line speed adjustment. The whole line uses centralized control. An operator manages the entire line from one main control panel.

The panel provides high and low speed adjustment and manual feeding. In normal production, the operator sets parameters and the line runs as set. For first threading or abnormal conditions, manual feeding can be used. Centralized control remains the main mode, with manual operation as backup.

Machine Parameters

The above parameters are the configuration data for this machine. Different projects can adjust them according to actual production needs.

Advantages of the Automatic Metal Steel Coil Slitter Machine

This automatic metal steel coil slitter machine brings these production values:

Centralized control reduces cross unit operations. Operators don't run between units to start each one. The main panel manages the whole line, cutting manual intervention.

Centralized control works with manual operation. Normal production uses centralized control. Threading or abnormal conditions uses manual feeding. These modes cover most situations.

Operation depends less on operator experience. PLC variable frequency control handles line speed. The panel provides high and low speed adjustment and manual feeding.

Loopers on this slitting line machine metal buffer speed differences between uncoiling, slitting, and recoiling. This supports smoother strip flow. For factories facing labor shortages, simpler operation means a lower hiring barrier.

Summary

The core value of full line automation is reducing production friction. Units connect in a fixed sequence. Centralized PLC control manages the line. Centralized and manual operation work together flexibly. These configurations don't aim for unmanned operation. They make operation easier, staffing more flexible, and order changes smoother. The design of a slitting machine line serves smooth and flexible production organization.
