Sheet metal shops often see this. After cut to length, the sheet length checks out. But on the laser table or at the press brake, the diagonal is off. One side is long, the other short. Gaps do not line up. Sometimes a whole batch needs rework. The first thought is the shear. The real cause is often more complex. Length accuracy and diagonal accuracy are two different things. The production steps that affect them are not the same either. On an aluminum coil cut to length machine, measuring, feeding, guiding, and shearing all shape the final sheet dimensions.

Applications Where Sheet Squareness Matters

Not every cut to length job is sensitive to diagonal accuracy. These setups pay close attention:

• Sheet metal fabrication. The sheet goes to bending, stamping, or welding. A bad diagonal causes assembly errors.

• Laser cutting preparation. The cutting head follows a program. Incoming diagonal error shifts part dimensions.

• Applications that need square and dimensionally consistent sheets. Squareness affects later positioning and connection.

These applications often run on a cut to length line machine that must deliver square sheets. The sheet must be right in length and square. Length accuracy controls the longitudinal direction. Diagonal accuracy controls the shape. They relate, but they are not the same.

Length Accuracy vs Diagonal Accuracy

Length accuracy measures whether the cut sheet size is consistent along the running direction. Diagonal accuracy measures whether the four corners are square and the two diagonals are equal.

On an aluminum coil cut to length machine, a line can hold length accuracy within ≤±1.5mm. But if the sheet shifts sideways, runs out of sync, or loses guide stability, the cut sheet can still show diagonal differences. A square sheet can still have length errors from measuring or feeding problems. Incoming sheet shape, leveling result, feeding stability, side guidance, and shear sync all affect the final sheet geometry.

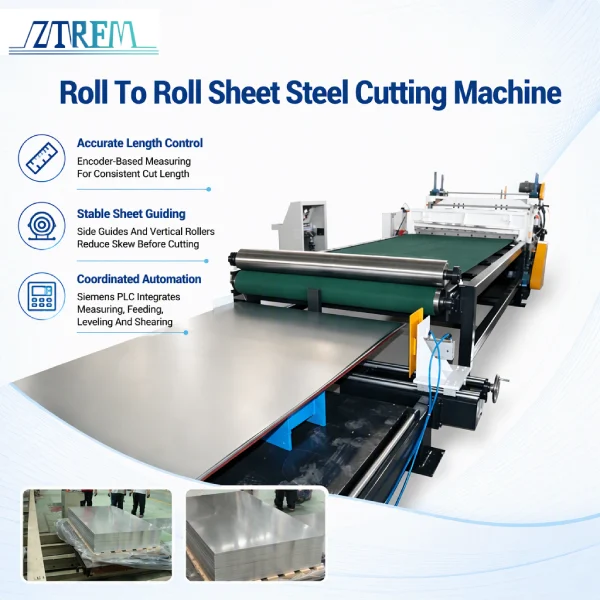

Machine Advantages

More consistent length measurement. The metal wheel encoder reduces slip risk during measuring, which supports stable cut length.

More stable sheet positioning. Side guides and vertical rollers keep the sheet aligned before leveling and shearing, lowering the risk of skew.

Coordinated automatic operation. Siemens PLC links measuring, feeding, leveling, and shearing, reducing manual intervention and helping maintain a steady production rhythm.

A cut to length coil machine with stable measuring and guiding brings these advantages to daily production.

How to Hold Diagonal Error Within ±2mm After Cut to Length

Diagonal error does not come from one part alone. From coil entry to stacked sheet, many steps affect final geometry. To control diagonal error, you need to work on measuring, feeding, guiding, and shearing at the same time.

A cut to length line machine depends on length measurement, but diagonal control needs more than a single signal.

Why Length Measurement Alone Cannot Decide Diagonal Accuracy

Length measurement answers how long the cut is. The encoder records sheet travel. The control sends a shear signal when the set length is reached. This controls the longitudinal direction.

But if the sheet shifts sideways during feeding, the cut sheet can be wide on one side and narrow on the other. The diagonal will not match. Length measurement is the base of cut to length. It is not the whole of diagonal accuracy.

Why a Precision Cut to Length Line Uses a Metal Wheel Encoder

Cut to length first needs stable and accurate detection of sheet travel. The encoder turns sheet motion into countable signals. The control uses these signals to decide when to shear.

On an aluminum coil cut to length machine, the encoder uses a metal wheel. The aim is to lower slip risk during measurement. A plain roller can slip or wear over long runs or when oil is on the surface. That makes the signal differ from actual sheet travel. A metal wheel suits this measuring job better in terms of wear and friction stability.

Keep in mind that the encoder is a key part of length measurement. Final shear accuracy also involves feeding stability, sheet condition, control system, and shear action. The encoder mainly solves length measurement. It cannot decide all final sheet accuracy alone.

How Side Guides and Vertical Rollers Steady Sheet Travel

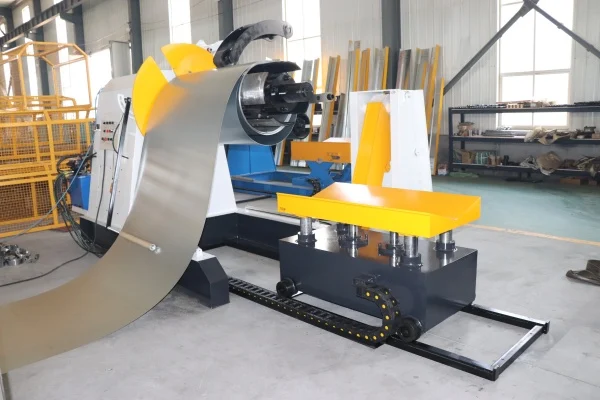

The sheet leaves the uncoiler and passes through the pinch and press side guide device before the leveler. The guide holds the sheet sideways and stops it from swinging left and right.

This machine uses two hydraulic cylinders to lift the rubber rollers. Vertical rollers on both sides guide the strip into the leveler. The guide width adjusts from 500 to 1250mm.

The vertical rollers press the sheet from both sides. The sheet runs in the set direction. If guidance is unstable, the sheet can skew as it enters the shear. The diagonal then suffers. Side guides and vertical rollers work as a pair. They are key to diagonal control from the infeed section.

Camber After Leveling and Machine Adjustment

Camber is a bend across the sheet width. The sheet is not straight along its length. It curves to one side. It belongs to sheet flatness or cross geometry.

Diagonal error is about the geometric consistency of the four corners after shear. They are not the same issue. Do not treat them as equal. But a sheet with clear camber runs less stable in feeding and shearing. That can further affect final sheet consistency.

This machine uses a 15 roller leveler, 7 top and 8 bottom. Roll material is 40Cr with high frequency quenching and chrome coating. Upper and lower roll gaps adjust by electric motor with handwheel control. Straightening precision is ±1.5mm. If incoming camber is heavy or leveling is not ideal, later feeding and shearing stability can suffer. In real production, watch incoming sheet condition and leveling result.

How Shearing Matches the Cut to Length Result

Shearing is the last step in cut to length. Even with accurate measuring, stable feeding, and good guidance, a poor shear signal match or wrong blade gap can hurt the final sheet.

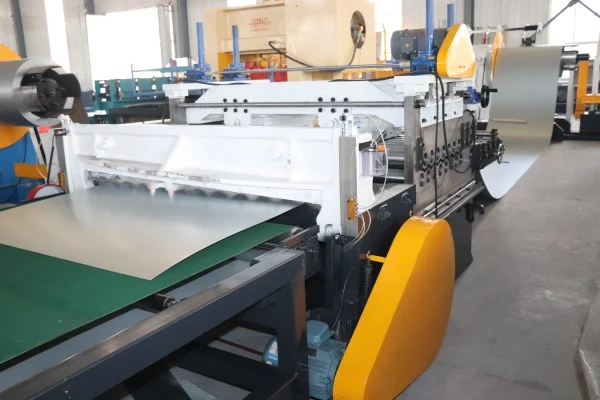

This cut to length coil machine uses a hydraulic shear with a 110 model double oil cylinder. It cuts from top to bottom. The shear action works with encoder signals for automatic cutting. For 1mm to 6mm sheet, the machine adjusts blade gap automatically. Different thickness needs a different gap to keep cut quality and protect the blade.

The blade is Cr12MoV, heat treated, with four usable sides. Length accuracy is ≤±1.5mm. Diagonal accuracy is ≤±2mm. These values describe the shear capability range in cut to length. Real accuracy also depends on sheet condition, thickness, width, and production conditions.

Line Coordination from Measuring to Shearing

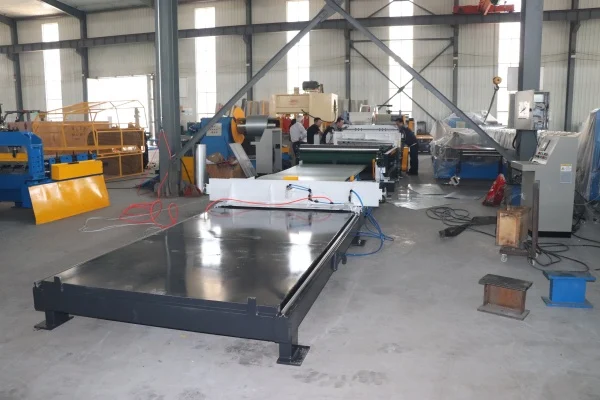

Cut to length accuracy is not a single step issue. The cut to length line machine runs through loading, uncoiling, leveling, cutting, stacking, and discharge.

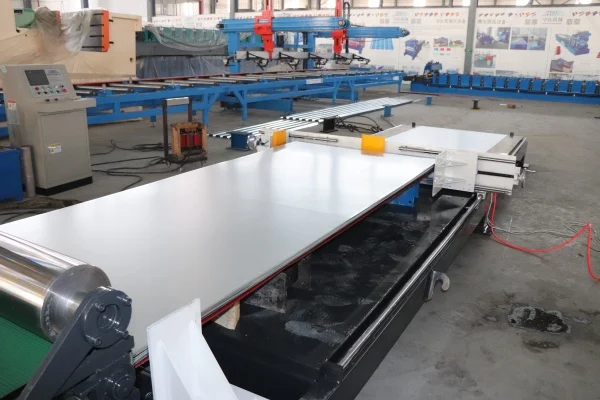

A cut to length conveyor moves cut sheets to the stacker after shearing. Guides and vertical rollers keep the sheet in line. Measuring uses the encoder. Shearing uses the shear and encoder signals.

Siemens PLC controls the line. The main console handles length setting, digital display, automatic counting, high and low speed adjustment, manual feeding, automatic feed, continuous shear, and fault alarm. The control system brings the steps into one rhythm.

Parameters

The aluminum coil cut to length machine parameters are listed below.

A correct cut length does not guarantee a matching diagonal. Measuring, feeding, guiding, sheet condition, control, and shearing all shape the final result. When selecting an aluminum coil cut to length machine, match the measuring and guiding setup to your material and accuracy needs.
