Steel door frame production is moving from single piece processing to continuous batch production. When order volumes rise and delivery pressure grows, production rhythm and continuous feeding become core concerns for factories. A steel door frame roll forming machine combines decoiling, leveling, forming, and cutting into one line to help factories meet batch order requirements.

Applications of Steel Door Frame Profiles

Steel door frame profiles serve as the structural frame in building openings. Different building types require different cross section shapes and strength levels.

Residential Door Frames

Residential entry doors and interior door frames use standard single rebate profiles to meet daily opening and hardware installation needs.

Commercial Door Frames

Office and shop door frames need more stable hardware mounting points, so the cross section often uses double rebate or reinforced designs.

Industrial Door Frames

Factory and warehouse doors are large and used frequently, so profiles need thicker material and stronger cross section load bearing capacity. This steel door frame roll forming machine handles these profile requirements through adjustable roller designs.

Different applications set different requirements for profile cross section shape and dimensional accuracy, and the forming stage decides that accuracy.

Production Demands When Door Frame Orders Increase

In some emerging markets, when residential, commercial, and industrial construction increases, door frame demand may shift from scattered production to more continuous batch production. Once order rhythm rises, production faces three practical requirements.

Higher Output and Delivery Pressure

More orders mean more profiles need to be produced in a given time. If forming speed cannot match the order rhythm, delivery pressure directly affects production scheduling. Factories need to maintain a stable output pace while keeping forming quality.

Continuous Material Feeding

Batch production requires equipment to run continuously and reduce downtime from coil changes, adjustments, or waiting. The decoiler system needs to hold enough coil weight to reduce coil change frequency and support long stable runs. A steel door frame roll forming machine with a passive decoiler supports this feeding pattern.

Stable Forming Across Long Runs

During long continuous runs, profile cross section dimensions need to stay consistent. If the equipment drifts in size after several hours, later batches need frequent adjustment, which affects overall production efficiency.

Machine Advantages for Continuous Door Frame Production

To meet these production requirements, this equipment provides solutions in the following areas.

Powerful Drive for Continuous Forming

This steel door frame roll forming machine uses two 7.5 kW main motors to provide the power base for continuous forming. The two motors drive the main forming machine together.

Synchronized Transmission for Consistent Speed

Gear transmission drives all passes in a synchronized way, which helps maintain a stable transmission rhythm across the line.

Continuous Coil Feeding Capability

A 3 ton passive decoiler supports continuous feeding of larger coils. The decoiler fits coil inner diameters from 450 to 550 mm and a maximum width of 300 mm, covering common coil sizes and reducing coil change frequency. This steel door frame roll forming machine suits factories that run long batches.

Adjustable Line Speed for Different Production Rhythms

Forming speed is adjustable from 0 to 20 m per minute to suit different production rhythms. Factories can choose a suitable speed based on order urgency and material characteristics.

Technical Parameters

The parameters below come from the equipment specification sheet, covering forming passes, core component materials, and production configuration.

These values come from the equipment specification sheet. A steel door frame roll forming machine with these parameters supports the production requirements described above.

Equipment Deployment and Production Start

In markets where local processing demand increases, whether equipment can be deployed and put into production quickly directly affects a factory's ability to take orders. The following explains the deployment path from equipment composition to installation and trial production.

Main Machine and Component Units

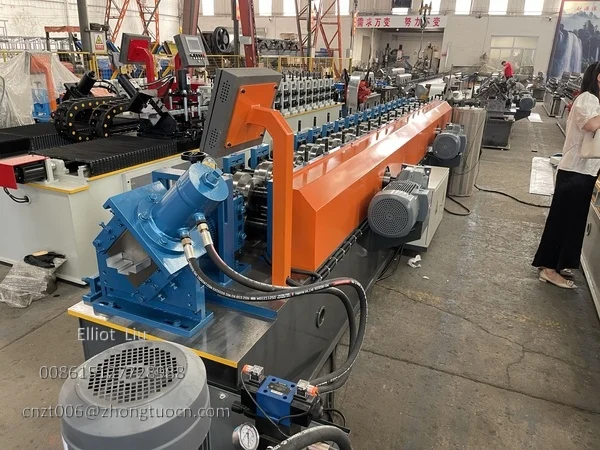

The complete line consists of a decoiler system, feeding and leveling, main roll forming system, hydraulic shear, products receiving table, hydraulic station, and electric control system. The strip links these units as it moves through the line.

Installation and Adjustment Support

We provide video guidance for installation and adjustment, and customers can also send personnel to our factory for training. The machine is prepared and inspected before shipment. After arrival, users position and connect each station according to the layout drawings, then start commissioning. Specific installation conditions need to be confirmed based on actual equipment configuration and site conditions. This steel door frame roll forming machine can be commissioned with remote guidance.

Training and Technical Support

The equipment comes with a one year warranty and lifetime technical support. Overseas on site service can be arranged in advance, and the specific service plan is determined by the customer site conditions and needs.

Why This Machine Suits Repeated Steel Door Frame Production

For factories that need to repeat the same or similar door frame specifications over the long term, continuous forming combines multiple production steps into one line, making batch order rhythm and delivery more controllable.

A machine to manufacture steel door frame delivers a continuous flow from coil to finished profile. This approach suits production scenarios that require repeated steel door frame production and continuous connection of multiple production steps.

For buyers who focus on continuous production capability, understanding this production logic helps more than comparing equipment prices alone. The same production approach supports manufacturers working to meet local demand. A steel door frame roll forming machine suits production scenarios that require repeated steel door frame production and continuous connection of multiple production steps.
