Have you ever wondered why wide steel coils from upstream mills become strips of different widths when they reach downstream factories?

Automotive brackets, appliance shells, construction C purlins, welded tube feedstock. All these products start with a slitting machine. What does a slitting machine do? Simply put, it takes wide metal coils and slits them lengthwise into multiple narrow strips for downstream use.

This liner slitting machine handles everything from uncoiling to slitting to recoiling in one continuous process. It turns large coils into the narrow strip widths your customers need, lowering material costs and improving utilization.

So which industries actually use these strips? Let's look at a few typical application areas.

Application Areas

The strips produced by this liner slitting machine supply several key metalworking industries:

• Automotive parts manufacturing: stamping blanks for body brackets, exhaust pipes, and seat frames

• Home appliance manufacturing: shells and internal structural parts for refrigerators, washing machines, and air conditioners

• Construction metal products: C purlins, Z purlins, and other structural sections

• Tube and pipe manufacturing: round tubes, square tubes, and rectangular tubes

• Electrical equipment manufacturing: transformer cores and motor stators and rotors

Now that we've seen the applications, let's get back to the fundamental question.

What Is the Purpose of a Slitting Machine?

This question really asks two things: what problems does this liner slitting machine solve, and how do I tell if it's any good.

A slitting machine does more than just "cut things." The core problem this liner slitting machine solves is this: upstream coil widths are fixed, but downstream requirements vary endlessly. Without a slitting machine, you have to buy pre slit strips at specific widths. That means higher costs and less control over delivery times. With this liner slitting machine, you buy wide coils and cut them to whatever width you need. You get flexible inventory and faster response to orders.

To judge if this liner slitting machine is good, look at three things. Does it hold accurate strip width (affects whether downstream can use it). Does the line run steady without stops (affects delivery). Does it switch specifications quickly (affects how many order types you can take).

So how does this liner slitting machine actually deliver on those three points? Let's walk through its process design.

Continuous Flow Design

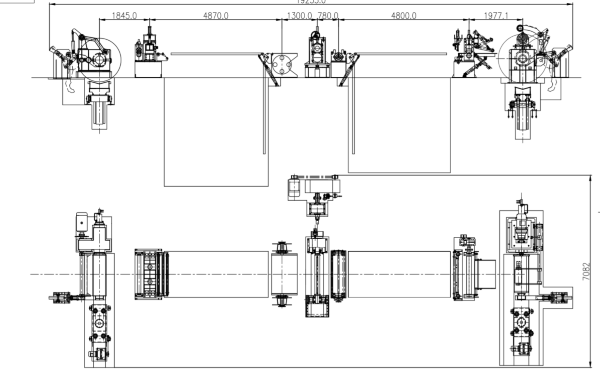

This liner slitting machine uses a straight line layout from right to left, with all units arranged in sequence.

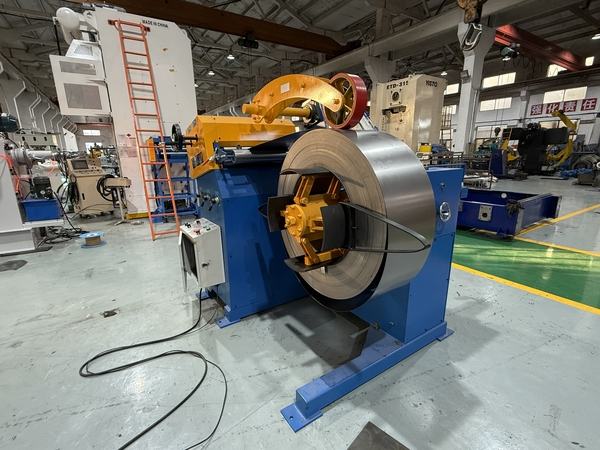

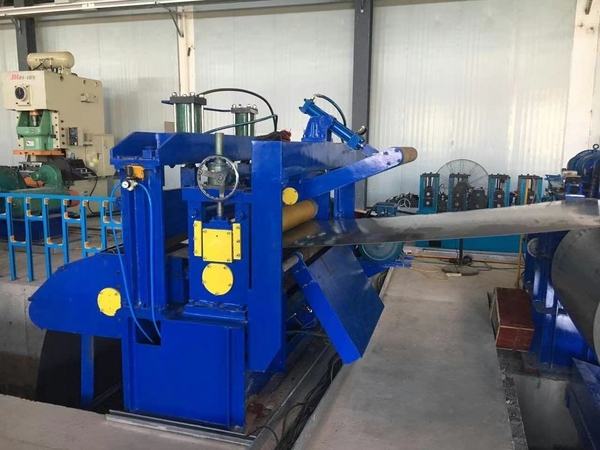

From right to left are: Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter→Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand →Recoielr →Exit coil car

You might worry about stopping during coil changes. This liner slitting machine has loopers placed after the uncoiler, before the slitter, after the slitter, and before the recoiler. When you change a coil, the loopers hold extra strip material to keep the slitter running. The whole line needs only three operators and delivers about 40 tons of finished product in an eight hour shift.

Looper Buffering

The uncoiler feed speed and the slitter cutting speed can never stay perfectly matched. Without loopers, speed differences would stretch the strip or cause it to pile up and scratch.

This liner slitting machine uses loopers to solve this problem. When the uncoiler runs slow, the looper continues supplying material. When the uncoiler runs fast, the extra material stores in the looper. The slitter always has material to cut with no stops.

Now that speed is stable, there's another issue to address: the strip must stay centered before entering the main unit.

Side Guide and Slitting Accuracy

The strip passes through the side guide device before entering the slitter. Vertical rollers on both sides hold the strip centered to prevent wandering.

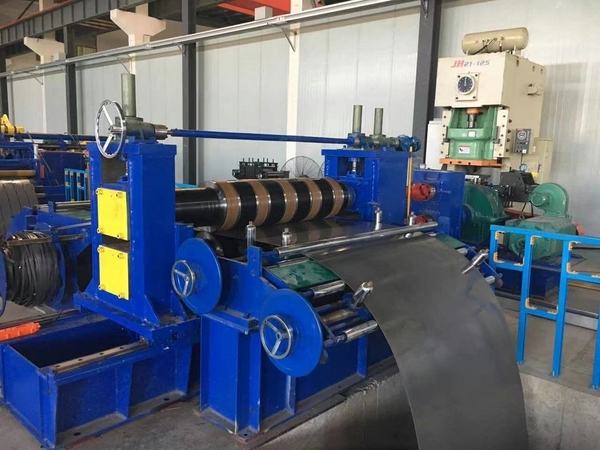

Then the strip enters the slitter, where circular blades cut it into multiple narrow strips along the length direction. The blade gap adjusts based on material thickness. Thick material needs a larger gap; thin material needs a smaller gap. This liner slitting machine holds slitting width accuracy within plus or minus 0.05 millimeters, with smooth edges and no burrs.

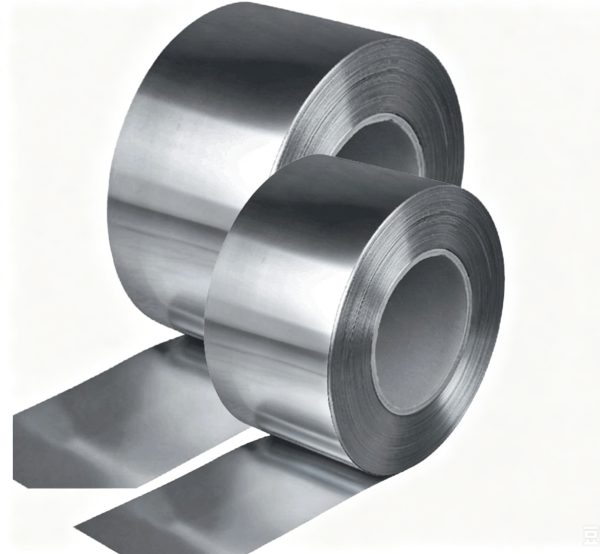

After slitting, these strips go through final recoiling and unloading to become finished coils.

Recoiling and Unloading

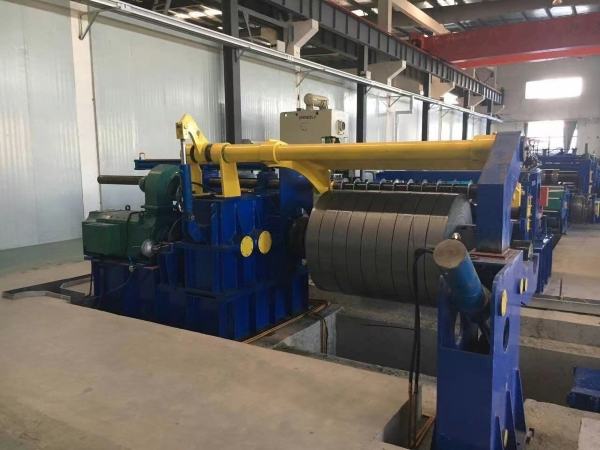

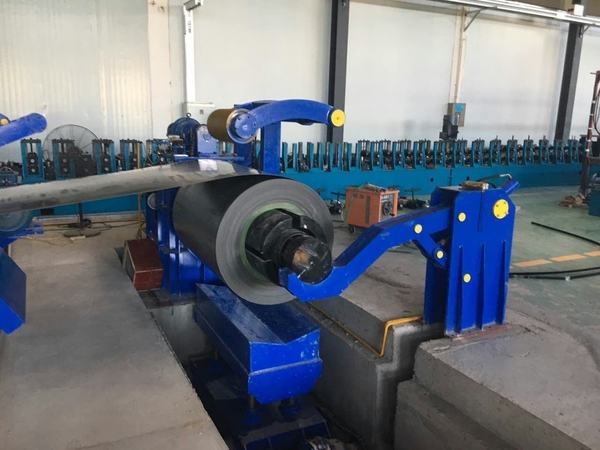

The slit strips pass through the second looper and the tension stand before entering the recoiler. The tension stand applies backward pull to keep the strips tight during recoiling. The recoiler winds the strips into tight, uniform coils. The expanding mandrel holds the coil core securely from inside. After winding, the mandrel releases and the exit coil car carries the finished coil away.

Have you dealt with loose coils that fall apart during unloading? Downstream customers require tightly wound coils. Loose coils cause feeding problems on their production lines. The tension stand paired with the hydraulic expanding recoiler keeps finished coils tight and neat, and the entire recoiling process on this liner slitting machine ensures consistent coil quality.

Now that we've covered the process flow, what about long term maintenance costs?

Easy Maintenance

Maintenance cost is a real concern after you buy equipment. The wear parts on this liner slitting machine, including seals, bearings, hydraulic fittings, and electrical components, all use standard off the shelf sizes.

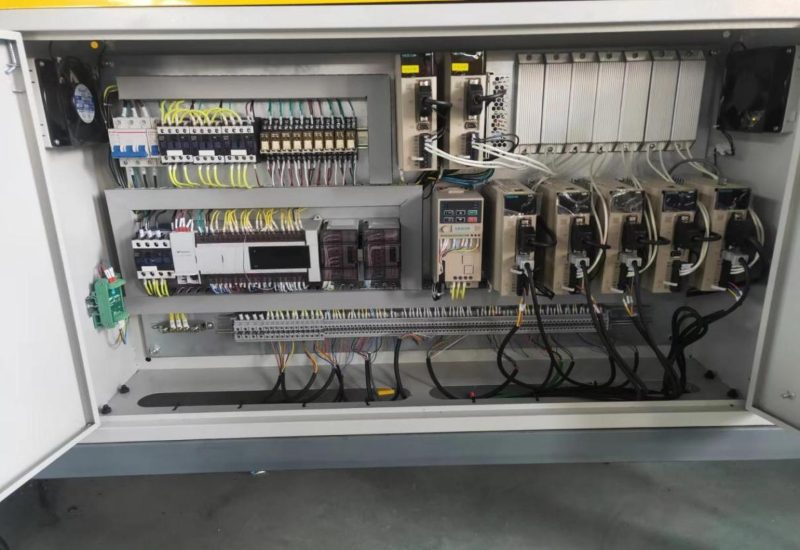

Your maintenance crew can buy replacements from local industrial supply shops. No need to wait for factory shipments. The hydraulic lines and electrical wiring are laid out clearly. When something goes wrong, you can find it quickly without removing multiple covers. This liner slitting machine is designed for straightforward maintenance.

Daily maintenance just needs regular lubrication and simple circuit checks. No complicated procedures. A regular mechanic can handle it.

Core Technical Parameters

Other Equipment

• Cut to length line

• Hydraulic decoiler

• Cable tray roll forming machine

• Storage rack upright roll forming machine

• CZ purlin roll forming machine

Besides the liner slitting machine, we also offer the above equipment for your reference. If you need more than just a slitting line, we can supply other cold roll forming equipment as well.

Company Profile

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. was established in 2014. We are a manufacturer dedicated to the design and production of various cold roll forming machines. We provide ODM, OEM, and one stop services, so from raw materials to finished machines and related accessories, you can source everything from us.

Our product range includes roof tile forming machines, C/Z purlin forming machines, light steel keel forming machines, metal embossing machines, door system forming lines, ceiling system forming lines, high frequency pipe welding machines, slitting lines, cut to length lines, shelf system forming machines, floor decking forming machines, and color stone tile production lines.

This liner slitting machine comes from a company with over a decade of experience in cold roll forming equipment manufacturing. Whatever your workshop location, size, or budget, we can offer recommendations based on your actual needs. Feel free to reach out anytime.
