Embossed metal plates are common in production. Equipment treads, truck floors, shelving decking, industrial walkways, those regular patterns on the surface are all pressed in. When you want to produce these plates yourself, the first question is usually: can this metal embossing machine process the plate I have?
Whether a plate can run on the machine depends on three conditions: material, thickness, and width. Below, starting from real applications, we explain what plates this equipment can process.
Applications of Embossed Metal Plates
Embossed metal plates are used in many places where slip resistance, load bearing, or surface texture is needed. A metal embossing machine produces these plates for different industries.
-
Equipment treads and stair treads
-
Truck floors
-
Shelving decking
-
Industrial walkways
These applications share some common requirements. Carbon steel is the main material. Thickness needs to fall within a certain range to press stable patterns. Width needs to match the equipment's processing capacity. Pattern uniformity and plate flatness are important factors affecting the finished product pass rate.
What Plates Can This Embossing and Leveling Line Process
This is the core question. Whether a plate can run on this metal embossing machine is not about a single parameter. Material, thickness, and width must all be met at the same time.
Material and Thickness
The confirmed material from the quote is carbon steel. It is a common material in industrial structural parts, with high strength, controllable cost, and good processing performance. A sheet metal embossing machine handles this material across the confirmed thickness range.
The thickness range is 1.2 to 5 mm. This range covers common industrial plates. Plate thickness is one of the conditions to confirm for suitability.
1520mm Processing Width in Real Production
1520mm is the maximum processing width of this metal embossing machine. In real production, this means plates up to 1520mm wide can pass through the machine in one go, without slitting or splicing.
Width and thickness need to be considered together. A carbon steel plate 1520mm wide and 5mm thick demands more from the embossing rollers than the same width at 1.2mm thick. The wider and thicker the plate, the greater the load on the machine.
In real production you also need to consider downstream processing allowance. If the final product width is close to 1520mm, the incoming material width needs extra allowance for edge trimming.
Thickness for Equipment Tread Plates
Equipment treads are a typical application for embossed plates. Thickness is usually chosen within the 1.2 to 5 mm range. Pattern type and plate thickness are application considerations.
Machine Advantages
The value of this metal embossing machine line comes from how the units work together.
Continuous Processing

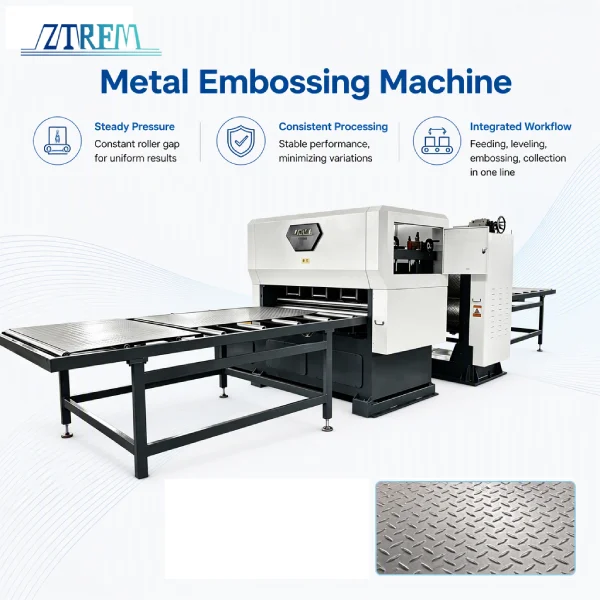

The input coil supporting table, embossing machine, leveling machine, and receiving table run as one line. A metal plate emboss machine keeps these units working together.
Repeatable Output
Mechanical processing helps support consistent output across different plates. This reduces the variation that comes with manual operation.
Integrated Leveling and Embossing
The leveling machine sits before the embossing machine. Plates are preprocessed before embossing.
Machine Parameters
| Parameter | Value |
|---|---|
| Processable material | Carbon steel |
| Material thickness range | 1.2 to 5 mm |
| Maximum processing width | ≤1520mm |
| Cutting length | Adjustable |
| Working speed | 5m/min |
| Input coil supporting table | 1 set, Length 5m |
| Embossing machine | 1 set |
| Leveling machine | 1 set |
| Receiving table | 1 set, Length 5m |
Why Width Alone Is Not Enough
Width determines whether a plate meets the processing width limit of a metal embossing machine. But suitability is not about that one condition.
Thickness affects the embossing conditions and machine load. Material must fall within the confirmed processing range of the equipment. The suitability of a metal sheet embossing machine is determined by all three conditions together.
Plate Suitability Check
Use these steps for a quick check:
-
Confirm material. The quote confirms carbon steel. Other materials need separate confirmation.
-
Confirm thickness. Within 1.2 to 5 mm can be preliminarily considered suitable.
-
Confirm width. Within ≤1520mm can be preliminarily considered suitable.
-
Confirm production requirements. Whether continuous batch production is needed, requirements for pattern consistency and plate flatness, and whether floor space fits the line layout.
Carbon steel, 1.2 to 5 mm, width up to 1520mm can serve as the basis for a preliminary suitability check. Specific target products still need confirmation based on actual production requirements. Equipment treads, truck floors, shelving decking, and industrial walkways can all be embossed on this metal embossing machine.
