Operating a T Bar Roll Forming Machine involves a straightforward workflow. From coil loading and strip feeding to roll forming and cutting, the process runs under PLC control. The main tasks for operators are setting parameters, monitoring the run, and changing coils.

This article explains the complete operation process in production order, including pre start preparation, strip feeding, parameter setting, roll forming and cutting, plus daily maintenance tips.

Common Applications of T Bar Profiles

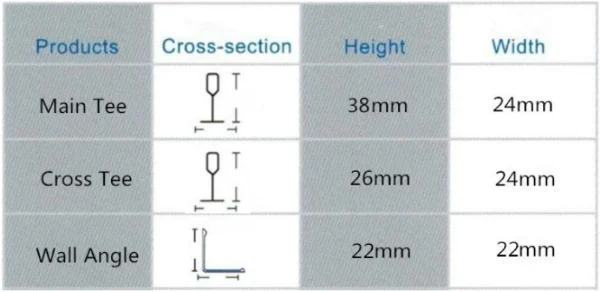

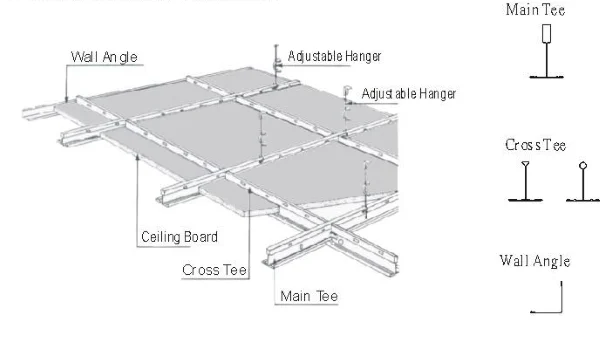

A T Bar Roll Forming Machine produces three types of T shaped ceiling profiles: Main Tee, Cross Tee, and Wall Angle. As an Automatic ceiling T Grid making machinery, these three profiles work together to form a complete suspended ceiling grid system.

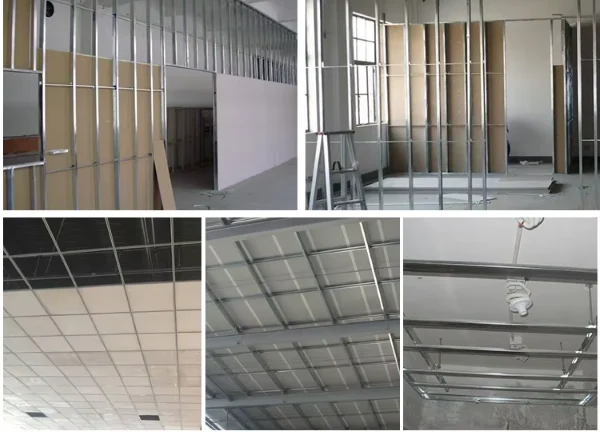

Typical application scenarios include:

• Ceiling systems for office buildings, shopping malls, and hotels

• Partitions and ceilings for hospitals, schools, and airports

• Residential interior walls and kitchen or bathroom ceilings

• Clean rooms and laboratories that demand high precision

• Large space ceilings for supermarkets, subway stations, and airport terminals

This equipment consists of three independent production lines: the main tee line, the cross tee line, and the wall angle line. The three lines run independently without interfering with each other. Users do not need to buy three separate machines or outsource components.

Advantages of the T Bar Roll Forming Machine

1. Three independent lines for flexible production scheduling
This equipment includes three independent production lines: the main tee line, the cross tee line, and the wall angle line. Each line runs independently, so you can switch production based on orders. Maintenance on one line does not stop the others.

2. Cast steel stands for stable operation
The machine uses cast steel independent stands that absorb vibration better than welded frames. Profiles stay straight at high speeds, reducing scrap rates and ensuring finished product quality. This Automatic ceiling T bar forming machine delivers consistent output even during long production runs.

3. Servo tracking cutting without stopping

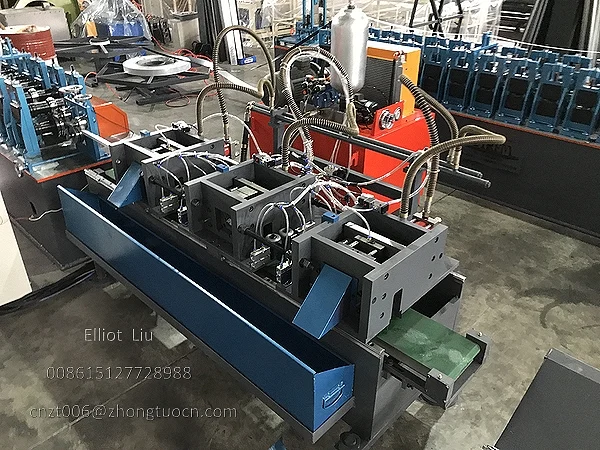

The main tee and cross tee lines use a servo tracking cutting system that cuts without stopping the line. Cut ends come out clean and flat with no indentations, eliminating secondary finishing and saving labor costs.

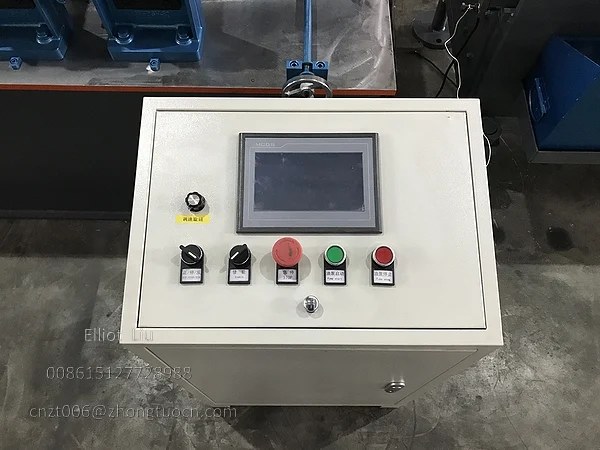

4. PLC control system for simple operation
Set length and quantity on the touch screen, and the equipment runs automatically and stops when finished. Operator training takes very little time, and one person can manage multiple lines.

Step by Step Operation Guide

Step 1: Material Preparation

• Check whether the steel coil specifications meet production requirements (width, thickness, material)

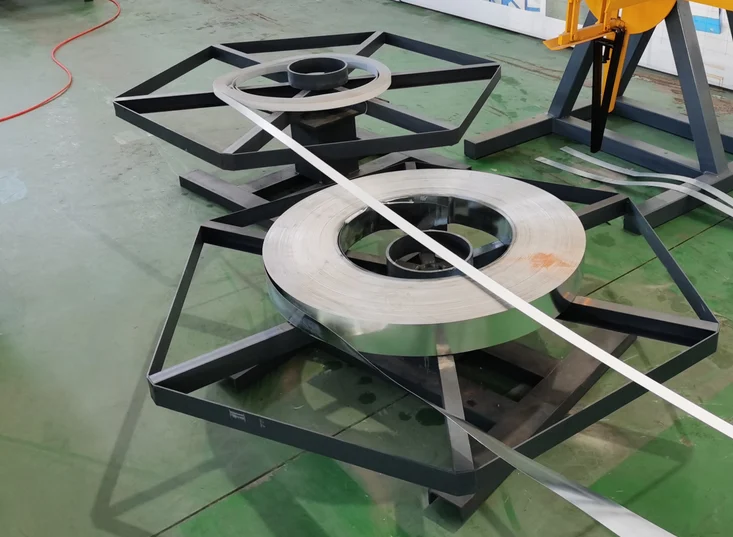

• Lift the steel coil onto the decoiler. Inner diameter 450 to 550 mm, max width 300 mm, capacity 1.5 tons

• Make sure the coil is secured firmly on the decoiler



Step 2: Strip Feeding

• Pull the strip from the decoiler and pass it through the entry beach

• The entry beach keeps the strip straight as it enters the forming head

• Manually feed the strip into the first forming roller

Step 3: PLC Parameter Setting

• Set the product length and quantity on the touch screen according to your order requirements

• Select the language (Chinese or English)

• Check the emergency stop switch and safety guards



Step 4: Start Production

• Press the start button to begin running

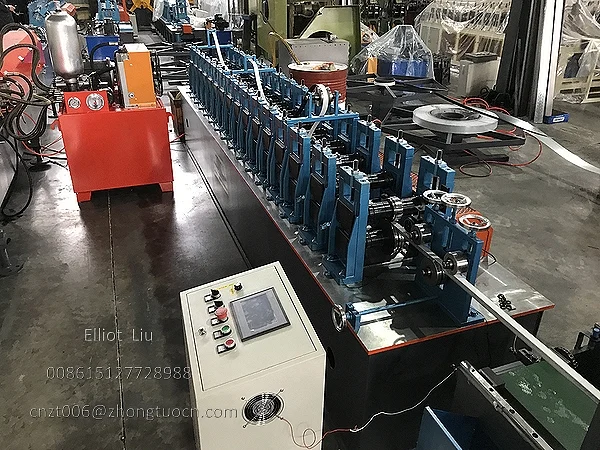

• The strip goes through multiple roller stations for continuous cold roll forming

• When it reaches the set length, the cutting system cuts automatically

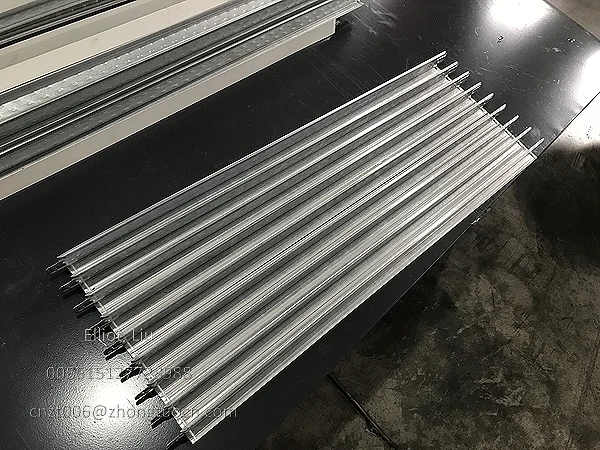

• Finished profiles slide onto the receiving table



Step 5: Monitor and Adjust

• Check the dimensions and appearance of the first few pieces

• If there is any deviation, fine tune parameters on the touch screen

• The machine counts automatically and stops when the set quantity is reached

Operator Preparation and Safety Checks

Operator requirements:

• Operators must receive training and be familiar with the operation process

• Know the emergency stop procedure and common troubleshooting steps

• Watch the machine running and pay attention to any unusual signs

Pre start safety checks:

• Check that all guards are in place

• Test whether the emergency stop switch works

• Check hydraulic lines for leaks

• Confirm the coil is secured firmly

• Check roller surfaces for debris

During operation:

• Never reach into the roller area while the machine is running

• Watch for strip deviation

• Stop immediately if you hear unusual noise or feel excessive vibration





Technical Parameters

Common Operation Mistakes and How to Avoid Them

1. Strip feeding deviation
If the entry beach is not adjusted correctly, the strip will run off track and cause弯曲 profiles. Check the entry beach position after each coil change.

2. Skipping daily checks
Failing to catch a faulty emergency stop switch or a hydraulic leak in time can lead to equipment damage or safety incidents.

3. Wrong parameter settings
Entering the wrong length or quantity ruins an entire batch. Double check the touch screen parameters before starting.

Get a Solution That Fits Your Production Needs

Whether this is your first time looking at a T Bar Roll Forming Machine or you need to add capacity to an existing line, we can offer suggestions based on your specific requirements. Tell us your target output, common material specifications, and workshop conditions, and we will provide a reference plan.
