On a high speed channel production line, the roll forming machine runs continuously. A high speed channel automatic stacker machine handles end of line stacking. Cut sections come out one after another, and the speed of end of line handling affects overall line output. Many factory owners have faced this problem. The line speeds up, but workers cannot keep up. Sections pile up on the floor, and the roll forming machine may need to slow down or wait.

Why High Speed Production Needs Automatic Handling

High speed continuous production is a common application for an automatic stacker. When the roll forming machine runs at high speed, cut sections come out without stopping. The end of the line needs stable collection and stacking to match that pace. A high speed channel automatic stacker machine supports this pace.

Large batch orders also need automatic handling. When order volumes are high and specifications are concentrated, the end of the line needs steady stacking capacity. Production lines with a higher level of automation benefit even more. The front end already runs automatic forming and cutting. If the end of the line depends on manual work, the whole line is not fully automated. A purlin stacker roll forming machine faces similar end of line handling needs in profile production.

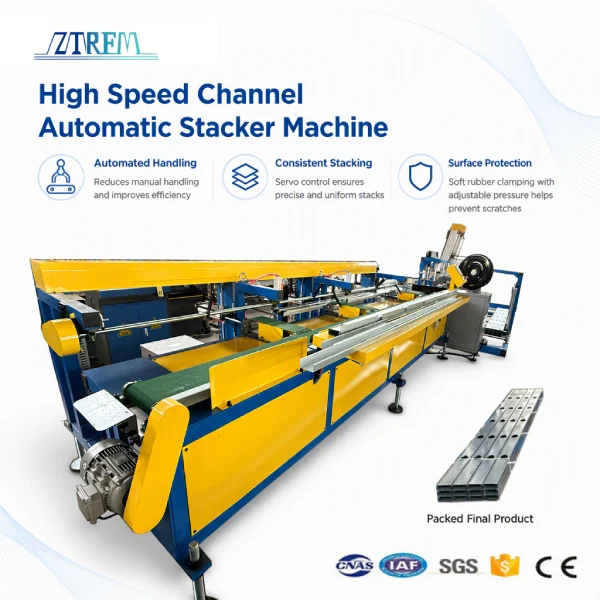

Machine Advantages of the High Speed Channel Automatic Stacker Machine

Less manual work. The high speed channel automatic stacker machine handles pulling and stacking automatically. Workers no longer need to stand at the output and catch each section.

Handles high speed production. This high speed channel automatic stacker machine takes over formed and cut sections and completes collection, alignment, and stacking.

Supports multiple specifications. The machine adapts to different channel lengths and packaging widths.

Technical Parameters

One Touch Operation and New Worker Start Up

The machine uses one touch operation. After start up, the machine completes the stacking process automatically. Workers only need to monitor the running status.

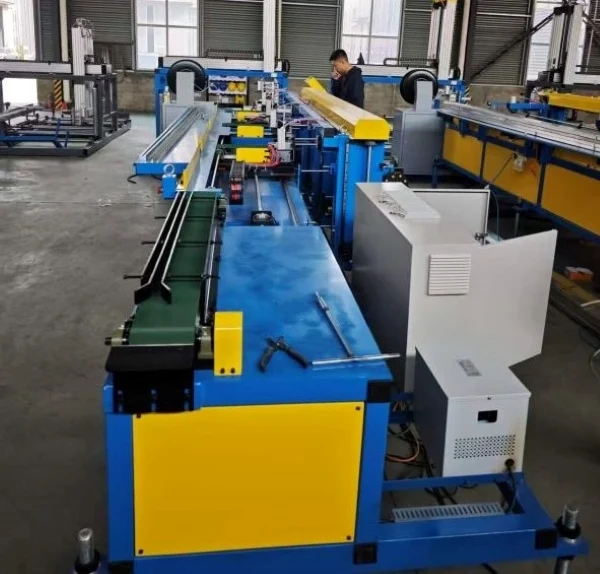

New workers can get started without long training. The interface supports English and Chinese, and the recipe storage system saves up to 50 channel types. A high speed channel automatic stacker machine with recipe storage helps new workers get started quickly. The system provides various alarm types.

Finished Product Handling and Delivery

After stacking, finished bundles are neat and firm. A high speed channel automatic stacker machine produces neat bundles that help with later steps such as moving, loading, and transport.

The stacking support plate uses folded forming instead of welding. The base uses 120 by 80mm square tubes. The machine uses PP strapping tape for secure bundling. A machine palletizer supports finished product handling and transfer, which helps with delivery.

Automation and Factory Production Organization

The level of automation reflects a factory's production organization. The high speed channel automatic stacker machine supports steady production flow. One touch operation and recipe storage reduce the impact of staff turnover on capacity.

Finished product handling runs from receiving to stacking with minimal manual input. The machine uses heavy duty drag chain, folded support plate, and a 120 by 80mm square tube base. These components support stable operation. Automated equipment is not just part of the line. It also shows a factory's production organization and order handling capability.

If you are upgrading a high speed channel production line, you can further evaluate how a high speed channel automatic stacker machine fits your product specifications, production pace, and site conditions. We can provide configuration suggestions based on your situation.
