A reliable gypsum board channel forming machine needs to handle multiple specifications while keeping forming quality consistent. If you work on renovation projects, you already know that every building comes with its own set of constraints. Existing floor heights, bay widths, and service layouts vary from one site to the next, and these differences place more complex demands on channel production than new construction does.

Applications of Gypsum Board Channel in Renovation and Retrofit Projects

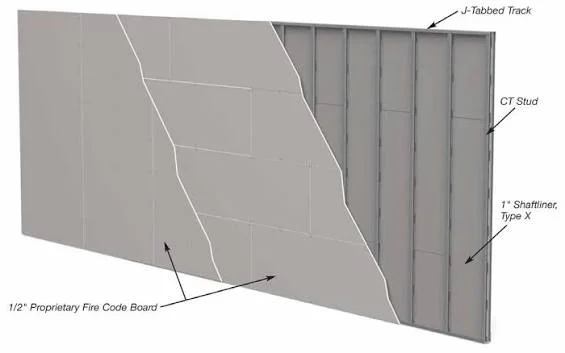

Gypsum board channel is a core framing material in light gauge steel partition and ceiling systems. Made from cold formed galvanized steel, it supports and secures gypsum boards to form wall and ceiling structures. In renovation work for offices, hotels, hospitals, and residential apartments, gypsum board channel is widely used for partition rebuilding, ceiling renovation, and service shaft enclosures. Because existing buildings differ in floor height, bay width, and service layout, each project calls for different channel specifications.

Renovation projects often involve small batches, many specifications, and tight deadlines. Manufacturers need a gypsum board channel forming machine that can handle different specification requirements while maintaining stable production efficiency.

These applications share common requirements for channel dimensional accuracy and forming quality. The channel cross section directly affects gypsum board installation fit, and dimensional deviations can cause problems on site. These requirements trace back to production: strip condition as it enters the forming section, deformation control across forming passes, and feed end guiding all influence finished channel dimensional consistency.

Renovation Project Demands on Equipment Layout and Production Organization

Renovation projects tend to bring a specific set of production challenges. Order specifications vary, and each project needs different channel cross section sizes. Batch sizes are often small, so production volume for a single specification stays limited. Delivery deadlines are tight, and renovation schedules rarely allow for long lead times. These factors place practical demands on production equipment. The machine needs to handle specification changes without excessive downtime.

Production organization needs to stay flexible enough to handle different order combinations. Equipment layout needs to fit different workshop sizes. For manufacturers, choosing a gypsum board channel forming machine that meets these requirements directly affects order capacity and delivery efficiency. How easily specifications can be adjusted and how stable the machine runs are practical factors to consider.

Machine Advantages: Configuration Features of the Gypsum Board Channel Forming Machine

This gypsum board channel forming machine provides practical value for manufacturers in the following ways:

• Multi specification production: The machine supports adjustable spacing for 3 specifications. Changeover between specifications is done by adjusting spacers.

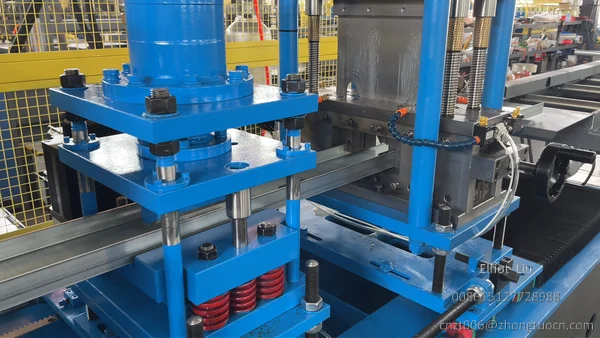

• Progressive forming configuration: The forming machine uses 32 pass forming. The strip passes through multiple roller groups and is gradually rolled into the target profile.

• Control method: PLC control with touchscreen HMI is used for parameter setting and machine status viewing.

Shaftwall CT Stud And Track Roll Forming Machine is a similar type of cold roll forming equipment used to produce CT studs and matching tracks.

Equipment Reference Specifications

The following specifications come from equipment configuration data

Matching the Gypsum Board Channel Forming Machine to Your Production Needs

Renovation and retrofit projects place production demands on gypsum board channel that come down to the machine's specification adaptability and production organization flexibility. Understanding the full chain from material condition to progressive forming to feed end guiding helps you judge whether a gypsum board channel forming machine can meet actual production requirements.

When confirming whether the equipment fits your project, check these areas:

• Product specifications: confirm the channel cross section sizes and specification range you need to produce. The machine supports adjustable spacing for 3 specifications.

• Material range: confirm whether the galvanized coil thickness and yield strength fall within the machine's working range (0.8 to 1.2mm, ≤350MPa).

• Production environment: confirm whether site power conditions and space conditions meet the equipment's requirements (480V, 60Hz, 3 phase, 4 wire).

For help matching a gypsum board channel forming machine to your specific product specifications and production conditions, feel free to reach out.
