Steel mills produce wide coils at fixed widths. Downstream factories need strips in many different widths. Automotive stamping requires one width, welded tubes need another, and C purlins call for something else. Without equipment to convert wide coils into narrow strips, manufacturers have to buy pre slit material at higher costs with less control over delivery.

A steel coil sheet slitting machine solves this problem. It uses circular blades to slit wide steel coils lengthwise into multiple narrow strips for direct downstream use. This article covers the basic definition, working process, main application industries, equipment advantages, and key configuration options for selection.

Applications of Steel Slitter Machines in Manufacturing

After the steel coil sheet slitting machine cuts wide coils into strips, these strips go into several downstream manufacturing sectors:

• Automotive manufacturing: raw material for body structural parts, exhaust pipes, seat frames, and other stampings

• Home appliance manufacturing: shells and internal structural parts for refrigerators, washing machines, and air conditioners

• Construction metal products: base material for C purlins, Z purlins, and other structural sections

• Tube and pipe manufacturing: continuous welding feedstock for round tubes, square tubes, and rectangular tubes

• Electrical equipment manufacturing: silicon steel strips for transformer cores and motor stators and rotors

These industries share similar requirements for the strips: accurate width, smooth edges, and tightly wound coils. The quality of strips from a liner slitting machine influences the efficiency of downstream processes.

Advantages of a Steel Coil Sheet Slitting Machine

This cutting slitting machine offers several practical advantages:

• Continuous operation during coil changes. Loopers after the uncoiler, before and after the slitter, and before the recoiler hold extra strip material so the line keeps running. Output is approximately 40 tons per eight hour shift.

• Reliable slitting accuracy within ±0.05mm ensures consistent width and clean edges.

• Low skill requirement with PLC one button start. New operators learn quickly. The line typically runs with one engineer and two general workers.

• Simple maintenance using standard wear parts including seals, bearings, hydraulic fittings, and electrical components.

• Wide material compatibility for thicknesses 0.3mm to 3.5mm and widths 500mm to 1600mm, processing carbon and galvanized steel.





How Does a Steel Coil Sheet Slitting Machine Work?

The working process of a steel coil sheet slitting machine follows three core steps: uncoiling, slitting, and recoiling.

The complete production line arranges from right to left. All units run continuously in the following sequence:

• Entry coil car delivers the coil to the uncoiler

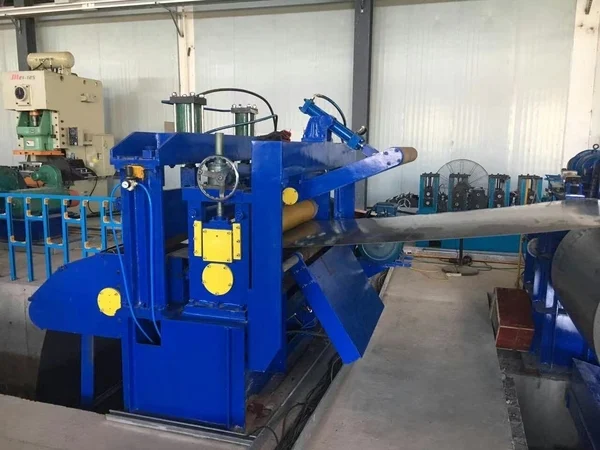

• Uncoiler unwinds the steel plate while the press and pinch device pushes it forward

• Hydraulic cutter trims the uneven coil head

• Looper 1 buffers the speed difference

• Side guide device ensures proper strip centering

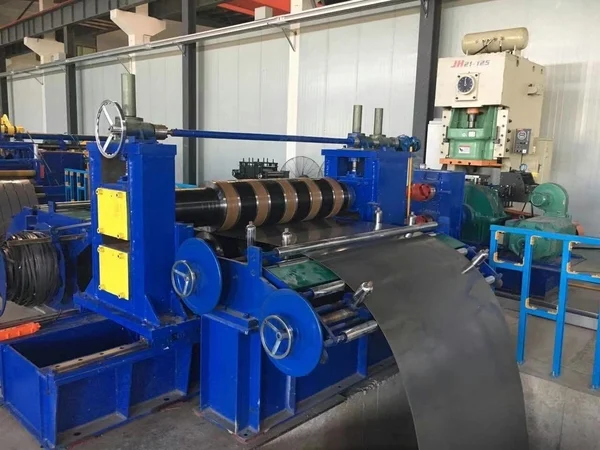

• Slitter uses circular blades to cut the steel plate into multiple narrow strips

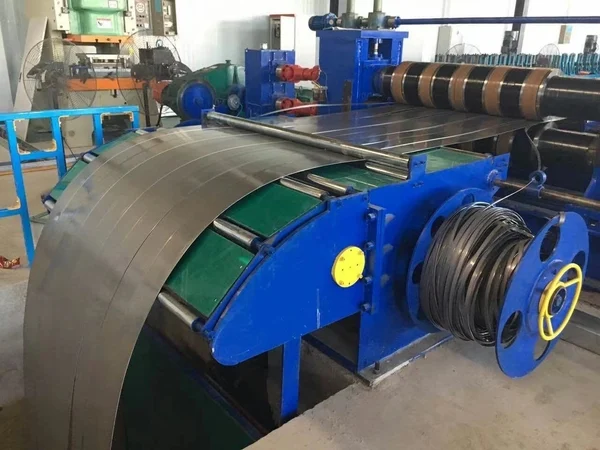

• Scrap winder collects the edge trim

• Looper 2 buffers again

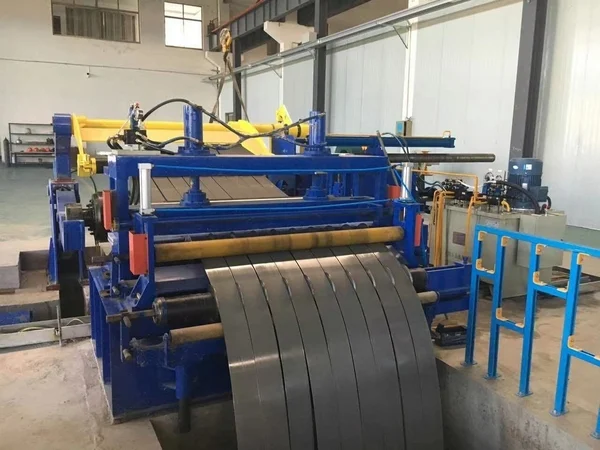

• Tension stand establishes recoiling tension

• Recoiler winds the strips into finished coils

• Exit coil car carries the finished coils away

The coil enters from one end, and finished strips come out the other end with continuous operation.

Technical Parameters of a Steel Slitting Line

The following parameters come from actual production test records of the equipment:

How to Choose a Suitable Steel Coil Sheet Slitting Machine

Selection involves more than just checking if the machine can run. You need to match it to your specific production conditions. Here are options we can provide based on actual equipment configuration:

• Voltage and frequency adaptation. Standard configuration is 380V/60Hz/3Phase. We can adjust to 380V/50Hz/3Phase or other voltages based on your local grid conditions.

• Material thickness range adjustment. Standard range is 0.3mm to 3.5mm. We can adapt beyond this range based on your actual processing requirements.

• Steel coil inner diameter compatibility. Supports 480mm to 520mm inner diameter, covering most common coil sizes on the market.

• Equipment color customization. Standard color is blue. We can customize to match your workshop's overall color scheme.

• Complete line delivery. All 14 units from entry coil car to exit coil car come as one package. You don't need to purchase additional auxiliary equipment from other suppliers.

• Installation and after sales support. We provide installation guidance (remote or on site) and operational test reports.



What Materials Can a Steel Slitting Machine Process?

• Material types: carbon steel, galvanized steel (GI)

• Thickness range: 0.3mm to 3.5mm (adaptable)

• Width range: 500mm to 1600mm

• Coil specifications: maximum outer diameter 1600mm, maximum weight 15 tons



Other Equipment from the Same Manufacturer

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. was established in 2014. We specialize in the design and manufacturing of various cold roll forming equipment, providing ODM, OEM, and one stop services. From raw materials to finished machines and related accessories, you can source everything from us.

Other equipment in our product range includes:

• C/Z purlin roll forming machine

• Roof tile roll forming machine

• Storage rack upright roll forming machine

• Floor decking roll forming machine

• High frequency pipe welding machine

• Cut to length line



A steel coil sheet slitting machine converts wide coils into precision strips for downstream use. If you have specific material specifications or capacity requirements, contact us for equipment recommendations tailored to your needs.
