In solar mounting systems, C shaped support channels and solar rails are key structural parts that carry the weight of PV modules. A support c channel strut roll forming machine turns galvanized steel coils into profiles that meet drawing requirements. Its selection affects profile accuracy and order delivery. Understanding the process and speed planning helps buyers decide.

Solar Support Channel Uses and Finished Product Positioning

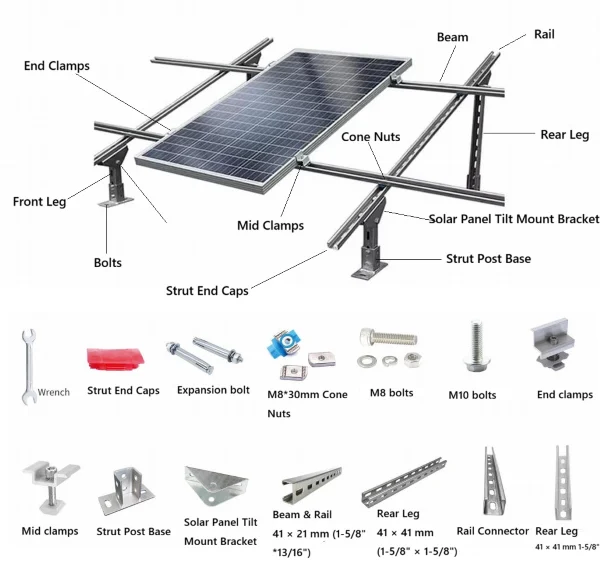

This solar rail making machine produces C shaped support channels and solar rails for PV mounting systems. These profiles support PV modules and need stable cross sections.

This solar rails making machine can customize punching based on customer drawings:

• Punching dies: hole positions and spacing set by installation needs.

• Section examples: 61mm and 81mm widths show adaptability to different specs.

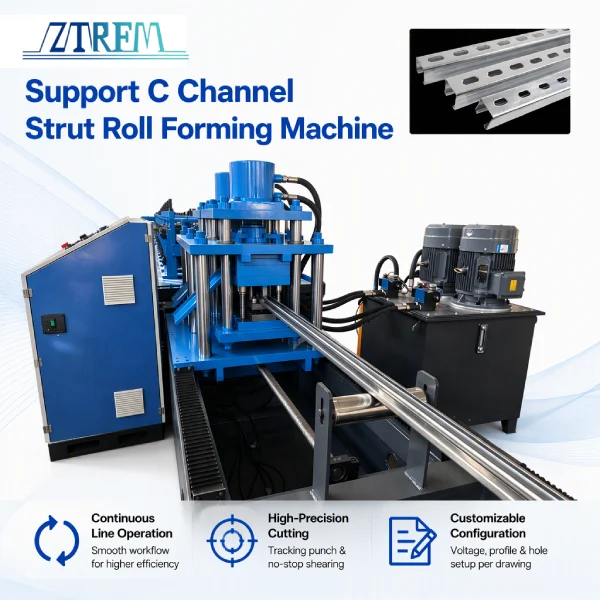

Machine Advantages

This solar rails making machine uses PLC control with a touch screen for parameter setting.

• Continuous line operation reduces material transfer between steps.

• Tracking punch and no stop shearing support cutting accuracy.

• Voltage, profile, and hole configuration can be evaluated based on drawings and site conditions.

• Cast steel stations and 400 U beam frame provide a forming base.

• Two emergency stop buttons on the main machine for urgent stop.

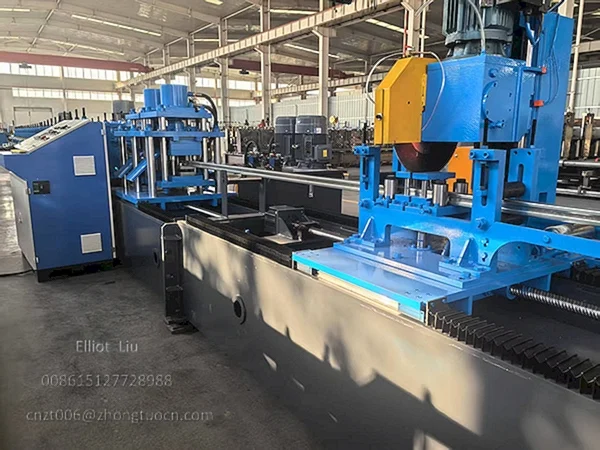

Full Process from Steel Coil to Finished Product

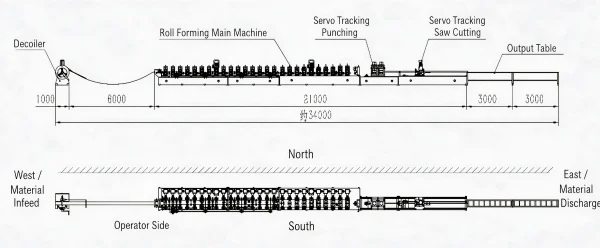

The process flow is: Decoiling > Feeding > Leveling > Forming > Punching > Cutting > Receiving.

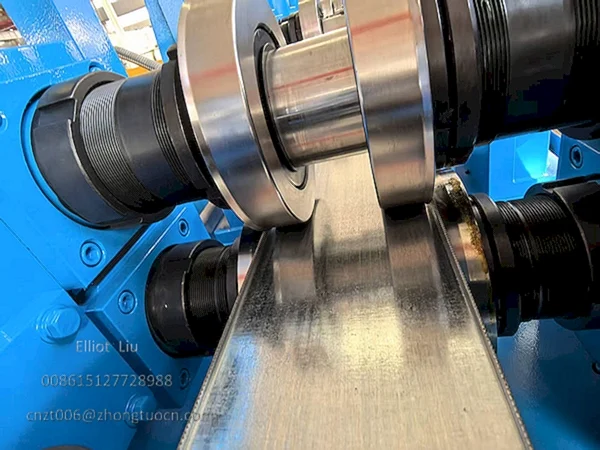

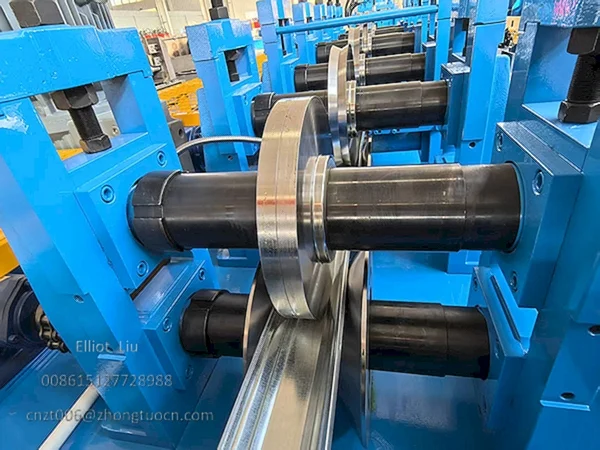

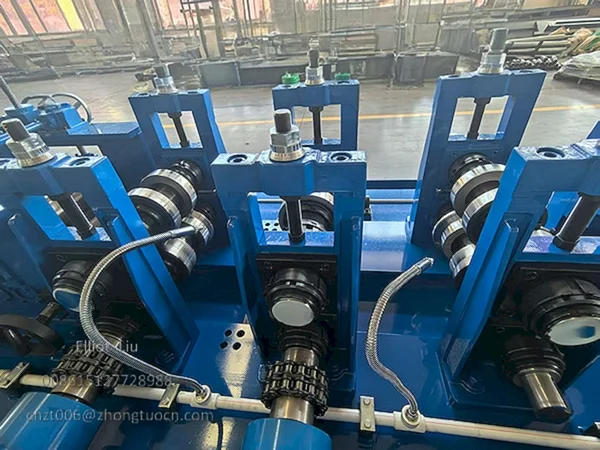

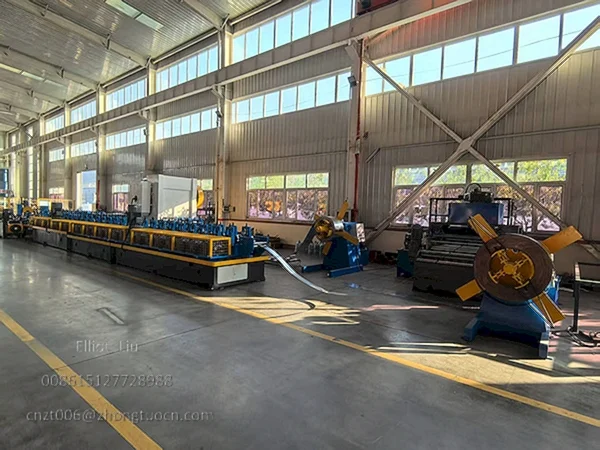

The line runs in sequence. A manual decoiler pays off the coil passively, pulled by the forming system into feeding and leveling. Four feed rollers and two side guides align the strip, and three to four leveling rollers remove internal stress. This support c channel strut roll forming machine uses about 26 stations to bend galvanized strip into a C section. Rollers are Cr12 quenched, shaft diameter 80mm.

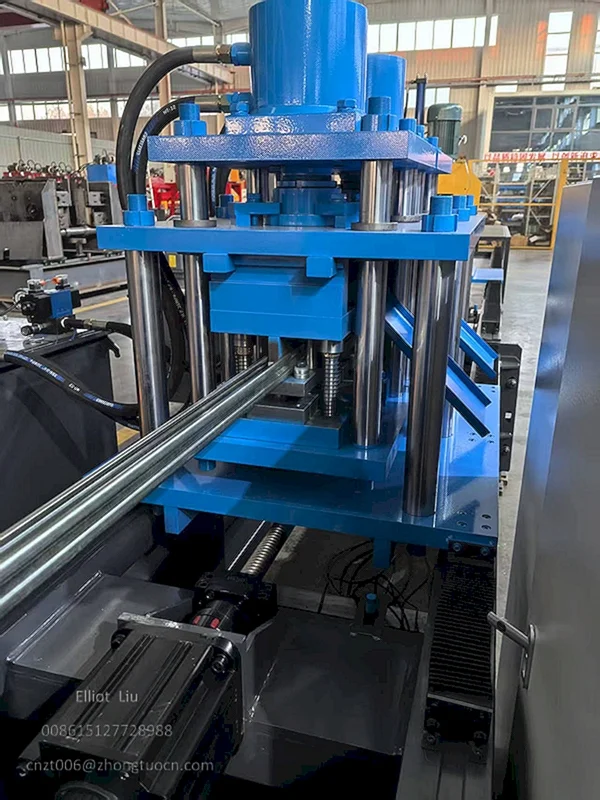

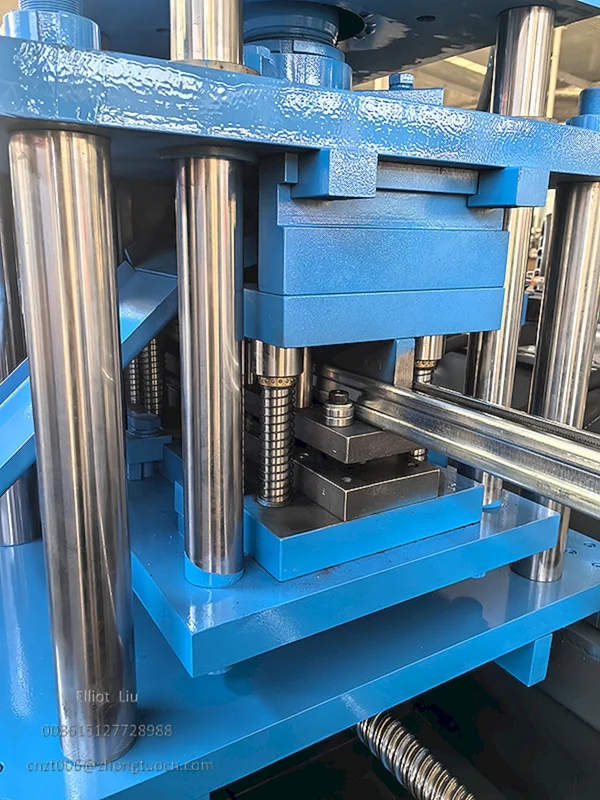

After forming, the profile enters tracking punching. A hydraulic die punches holes. Then no stop tracking shear cuts to length. The flying saw power is about 3.0kw, and an encoder measures length automatically. A receiving table collects products.

Timing between steps affects output. This support c channel strut roll forming machine uses a PLC to coordinate units. Touch screen and physical buttons allow operators to set parameters and monitor status.

Parameters Machine Specs and Speed Capacity Planning

How Product Specs and Material Thickness Affect Speed

For a solar rail making machine, material thickness from 2.0mm to 3.0mm increases motor load and roller pressure. Speed may need adjustment to protect equipment and ensure quality. Complex profiles need finer deformation, affecting speed.

Punching density and hole complexity also affect cycle time. Tracking punching happens during forming. High punching frequency may require lower line speed for hole quality. For this support c channel strut roll forming machine, theoretical length is speed times time, but actual output is limited by coil changes, profile changes, and punch and cut cycles. Effective running time must be considered.

How Order Batch and Changeover Frequency Affect Capacity Planning

For a support c channel strut roll forming machine, small batch and high mix production requires width and height auto adjustment to manage changeover. PLC and touch screen allow parameter setting in this mode.

Large batch and low mix production focuses on stable output over long runs. This support c channel strut roll forming machine must handle coil change frequency, profile change count, and receiving step connection for actual capacity planning.

Purchase Fit and Plan Confirmation

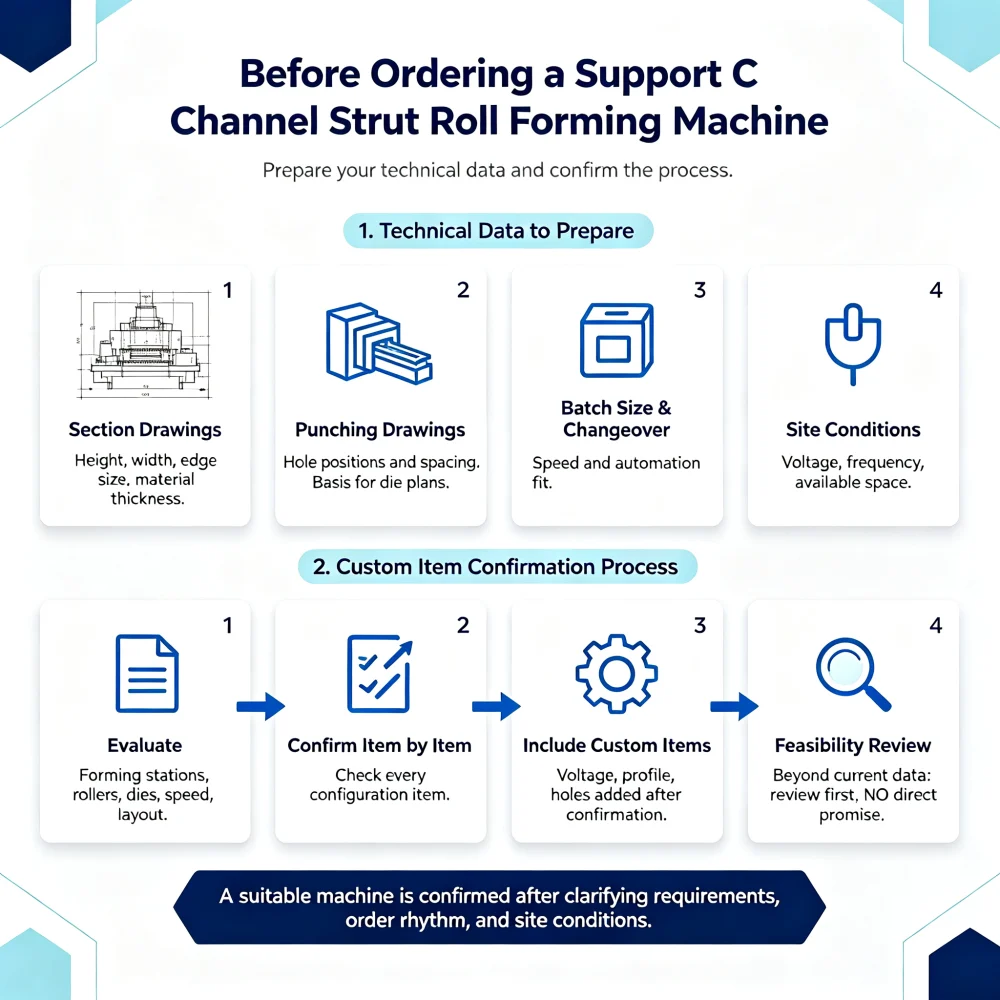

Technical Data to Prepare

Section drawings should mark height, width, edge size, and material thickness. Punching drawings should show hole positions and spacing. These are the basis for evaluating forming stations and die plans. Typical batch size and changeover frequency should also be provided to judge speed and automation fit. Site voltage, frequency, and available space should be confirmed in advance.

Custom Item Confirmation Process

After receiving the data, the manufacturer can evaluate forming stations, roller design, punching die plan, speed configuration, and line layout. Existing configuration and adjustment items should be confirmed item by item. For voltage, profile, and holes marked as customizable, they can be included after confirmation. Needs beyond current data need further feasibility review, not direct promise. A suitable support c channel strut roll forming machine is a plan confirmed after clarifying requirements, order rhythm, and site conditions.
