When a steel frame house machine arrives at an overseas factory, production does not automatically start the same day. Installation, power connection, site preparation, and trial runs all take time before the equipment can enter regular operation.

For buyers of steel frame production equipment, the gap between delivery and full production often raises concerns about project schedules. This article follows the complete journey of a steel frame house machine from factory testing to overseas site adaptation and formal production, and explains how to get the equipment running more smoothly after delivery.

Steel Frame House Machine Applications in Light Steel Construction

The steel frame house machine produces framing components for light steel buildings. These components are used in residential housing, modular buildings, and light commercial structures.

Typical applications include:

• Load bearing and non load bearing frames for low rise and multi story residential buildings

• Structural skeletons for light commercial buildings

• Wall frame units for prefabricated modular houses

• Support structures for exterior walls and interior partition walls

These building types require consistent component dimensions for efficient on site assembly. A steel frame house machine that runs stably and continuously is the foundation for meeting these production requirements.

Equipment Advantages of the Steel Frame House Machine

This equipment delivers practical value for overseas customers in the following ways:

• The machine undergoes factory commissioning before shipment, which helps reduce on site adjustment work after delivery

• The equipment uses a modular design that allows each unit to be transported and assembled separately

• The steel frame house machine uses a multi pass forming process

• Production parameters can be set and saved through the control interface. The equipment supports adjustable spacers for different profile sizes

• Forming rollers and punching dies use Cr12MoV/D2 alloy tool steel

These features help overseas customers get the steel frame house machine into production more smoothly after delivery.

From Factory Commissioning to Production Start

After manufacturing, the equipment undergoes commissioning before it is shipped. This step is particularly important for overseas customers.

The machine's station coordination and finished product dimensions are verified during commissioning. After commissioning, each unit is packed separately for transport. Upon arrival, the units are positioned and connected according to the numbered layout, and installation begins.

Once on site, the following steps are required before production can start:

• Installation and positioning: each unit is placed and connected according to the installation drawings

• Power connection: the electrical supply is connected per the equipment's requirements

• Trial run verification: a small amount of material is used for test production to confirm equipment status

• Operator training: operators become familiar with the control interface and daily maintenance

Factory commissioning helps the steel frame house machine enter trial operation faster after arrival, shortening the time from delivery to production.

Production Process and Operation of the Steel Frame House Machine

The steel frame house machine processes coil into finished framing profiles in one continuous line, with no manual handling between stages.

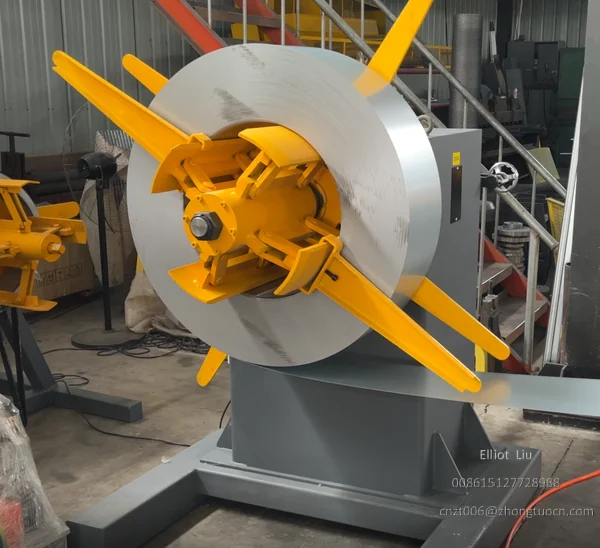

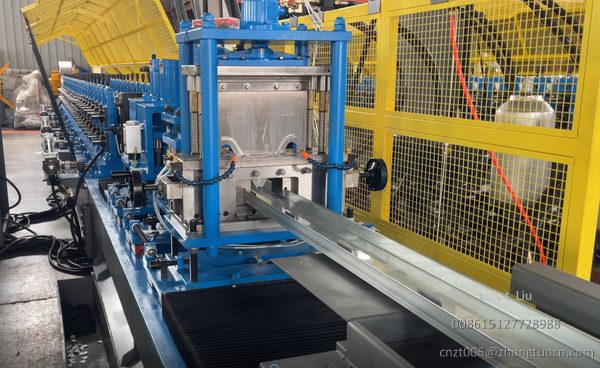

The line starts at the decoiler. Galvanized coil is loaded onto the decoiler, which supports the coil and provides steady unwinding tension. The strip enters the leveler, which improves strip flatness and reduces internal stress before forming. The leveled strip moves to the punching station, where mounting holes are punched at preset positions. The forming machine then gradually roll forms the strip into the target profile using multiple precision roller passes. A cut off device at the end of the line performs length cutting with follow-up cutting while the line runs continuously.

The entire line runs continuously from coil to finished product. Operators set production parameters through the control interface, and the steel frame house machine automatically processes the material from coil to finished component.

Equipment Reference Specifications

The following specifications come from equipment configuration data:

From Factory to Overseas Production

Back to the original question: does the steel frame house machine start producing right after it arrives? The answer depends on how well each step from factory to site is coordinated.

From confirming product specifications and material range during equipment selection, to commissioning before shipment, to power connection and site verification after arrival, and finally trial runs and operator training, each step affects how soon the equipment enters regular production.

The value of a steel frame house machine ultimately lies in its ability to produce qualified components consistently. The machine's forming capability is the foundation, but how smoothly the entire chain from delivery to production is executed determines how quickly it creates value for the customer.
For specific configuration recommendations based on your product requirements, site conditions, and power supply, please contact us with your project details. The Shaftwall C-T Stud And Track Roll Forming Machine uses similar roll forming principles for C-T profiles, and the Building Material Automatic Production Line can be configured for different output requirements.
