Purlin is a key load bearing component in steel structure roofs, walls, and frames. An automatic rollforming purlin machine takes steel coil and runs it through decoiling, leveling, punching, roll forming, cutting, and output to produce finished purlins to spec. Buyers are looking for a complete production capability from coil to finished product, not just a single unit. Below we break down each stage and what to pay attention to when purchasing.

How an Automatic Line Works and Why It Matters

A complete purlin roll forming line includes six core stages:

• Steel Coil → Decoiler Feeding → Leveling → Punching → Roll Forming → Cutting → Finished Purlin

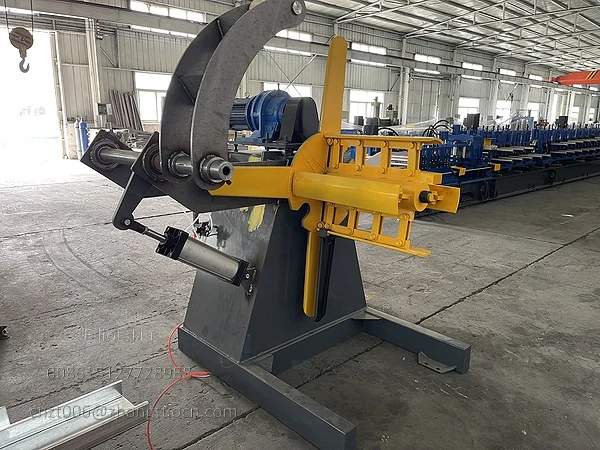

Decoiler: Holds the coil and feeds material continuously. Its capacity and speed control affect line stability. Automatic speed adjustment reduces manual intervention.

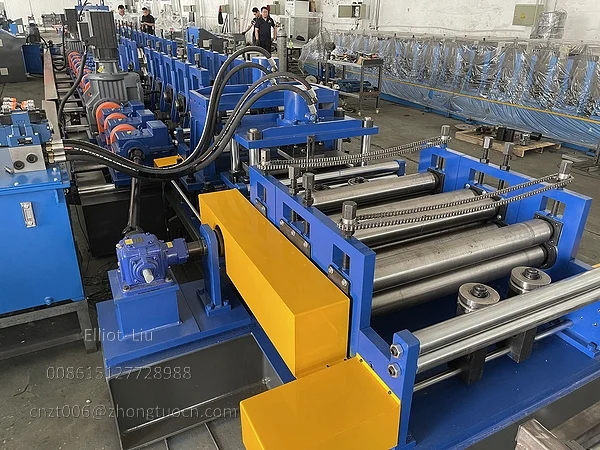

Leveling: Removes internal stress and curvature from the coil. Poor leveling causes purlin bending. Automated leveling ensures consistent sheet condition and uniform dimensions from start to end.

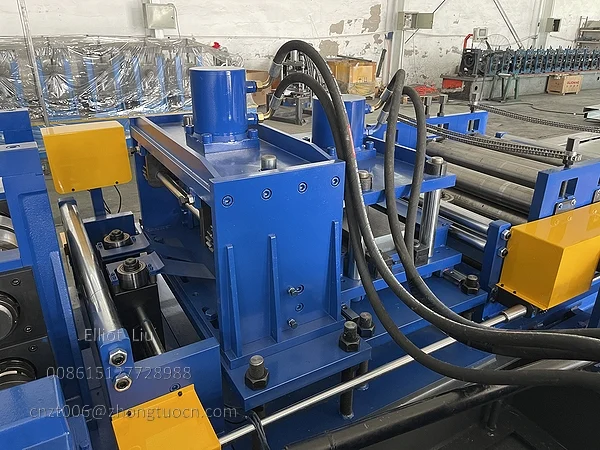

Punching: Performed before or after forming. Hydraulic punching is clean, and PLC controlled positioning helps maintain accurate hole placement for installation.

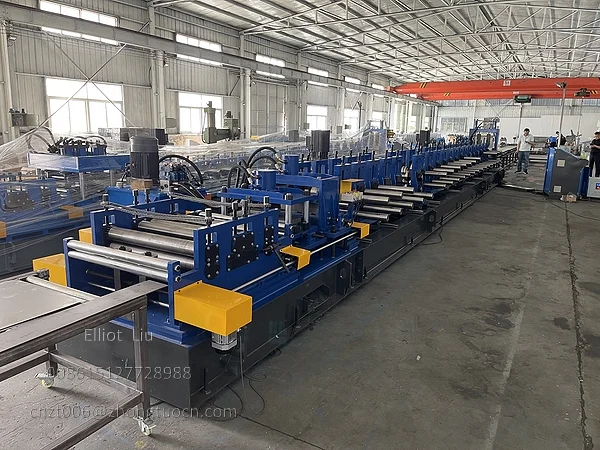

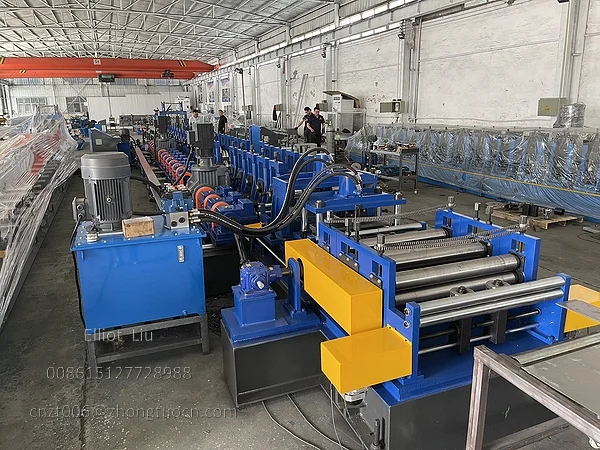

Roll Forming: Gradual bending through multiple roller stations. More stations allow smaller deformation per step, which reduces internal stress buildup and improves profile straightness. Continuous forming means no stops and higher shift output.

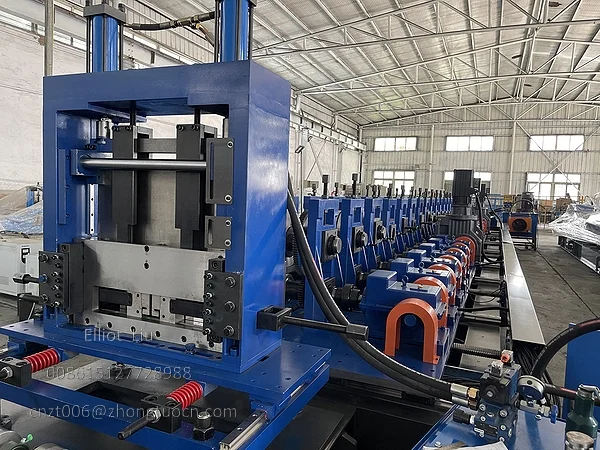

Cutting: Automatic cutting at set length. Automatic length measurement ensures each purlin is consistent. Two blade sets mean no downtime waiting for replacements.

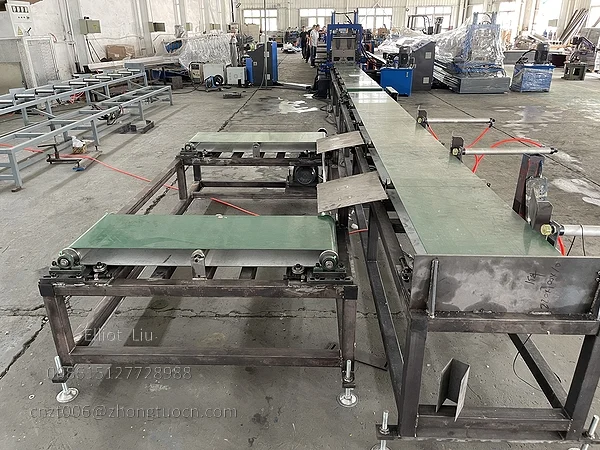

Receiving Table: Collects finished pieces and sends them out. The conveyor belt delivers directly to the packing area, reducing manual handling.

Applications and Sections This Machine Can Form

A custom purlin forming machine can produce sections widely used in:

• Steel structure roof and wall support systems

• Industrial plant and storage facility frames

• Agricultural greenhouses and frames

• Solar mounting brackets and renewable energy foundations

• Light steel residential and prefabricated buildings

The choice of section shape depends on the building's structural requirements. The equipment can switch between different profiles through roller adjustment, allowing one line to serve multiple project needs.

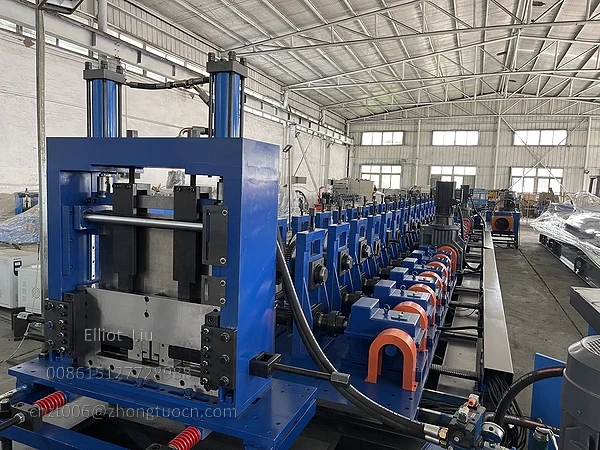

Why the Cutting System Matters

Cutting is the final step. If the cut is inaccurate, uneven, or leaves burrs, all previous precision work goes to waste.

1. Cutting accuracy affects installation efficiency

Inaccurate length or rough edges mean installers must grind or re drill on site. For hundreds of purlins, a few extra minutes each add up to days of lost labor.

2. Blade material determines cut quality and change frequency

Cr12MoV is cold work tool steel. Quenched treatment gives it good hardness and toughness. Cuts are clean with minimal burrs, and blades resist chipping. When buying, ask about blade material and heat treatment rather than just looking at price.

3. Double set configuration ensures production continuity

Blades are wear parts. Wear is inevitable. With only one set, a worn blade means stopping the line to wait for new ones. Two sets mean swapping in the spare and continuing production without delaying orders.

Key Specifications to Consider

What to Look for When Buying

How long can accuracy hold when forming thick material?

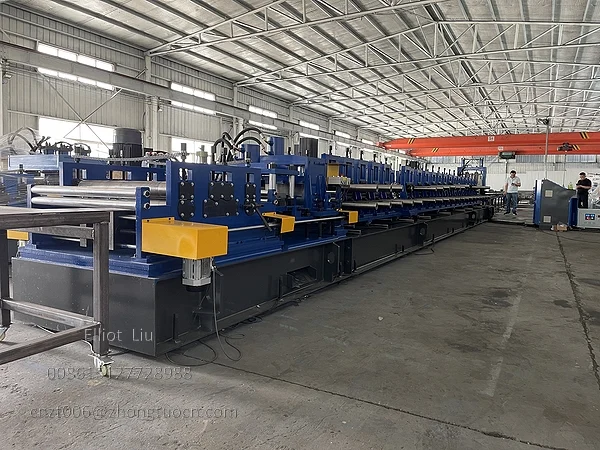

20 stations distribute deformation, cast steel frame and H beam base absorb vibration, and 230 mm shaft diameter resists torsion. These factors contribute to long term stability, though actual performance depends on material consistency and maintenance practices.

Will the cutting system cause frequent trouble?

Cr12MoV blades are quenched for clean cuts with minimal burrs. Two blade sets alternate. When one wears out, swap in the spare without stopping for procurement.

How long does changeover take?

Width adjustment runs on three 1.5 kW motors. Switching specs does not require half a day of manual adjustment.

Is the machine complicated to operate?

PLC with touchscreen supports Chinese and English. Enter length and hole spacing, and the machine runs automatically. Two emergency stop buttons allow quick shutdown when needed.

Whether you are just starting to learn about rollforming purlin machines or already comparing specific configurations, we can offer tailored recommendations based on your actual material thickness, profile requirements, and site conditions. There is no one size fits all answer in equipment selection. The key is finding the setup that matches your working conditions.
