When planning a light gauge steel framing production line, two questions come up again and again. How much floor space do I need? And how do I produce multiple profile sizes without buying separate machines for each?

Different production needs call for different equipment configurations. Two common solutions exist. Two machines share one frame to save space. Or different size rollers mount on the same shaft to reduce changeover costs.

A Light Gauge Steel Framing Machine produces cold formed steel profiles for drywall framing and ceiling grid systems. This article compares two configurations and helps you decide based on profile types, size variety, and workshop space.

Applications of Light Gauge Steel Framing Machine

A Light Gauge Steel Framing Machine produces ud cd profile machine for many uses:

• Residential construction (single family homes, multi story buildings)

• Commercial buildings (offices, retail stores, small commercial structures)

• Modular buildings and prefabricated structures

• Light commercial and industrial structures

Different project types need different profile shapes. For example, C shaped studs and angle steel profiles require different forming rollers. The connection between applications and equipment configuration is direct: your target projects determine the profile shapes and sizes you need, which then determines the best machine setup. A flexible configuration lets you serve more project types without buying multiple machines.

Equipment Advantages of the Right Configuration

Choosing the right Light Gauge Steel Framing Machine configuration delivers several machine level benefits:

• Space saving layout – Sharing structural components makes more efficient use of floor space

• Flexible production capacity – One machine adapts to multiple profile shapes or sizes

• Less changeover work – Less downtime and labor cost when switching sizes

• Lower equipment investment – One configuration meets multiple production needs

• Customized production solutions – Configuration adjusts to your product mix and workshop conditions

This drywall stud and track roll forming machine configuration adapts to your specific production requirements.

Two Configurations for Different Production Problems

Two different Light Gauge Steel Framing Machine configurations exist. They solve different problems and fit different situations.

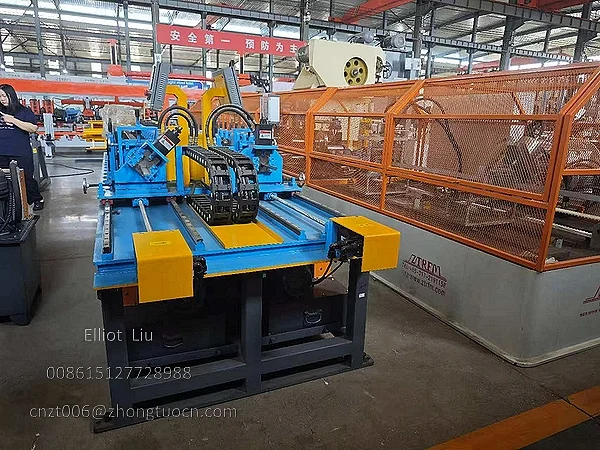

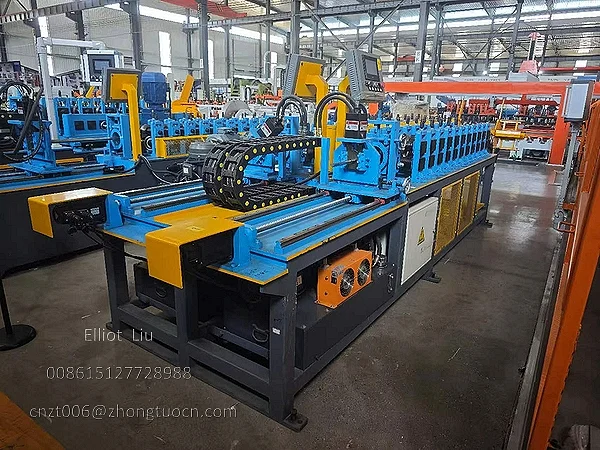

Configuration One: Two Machines Share One Frame

How it works

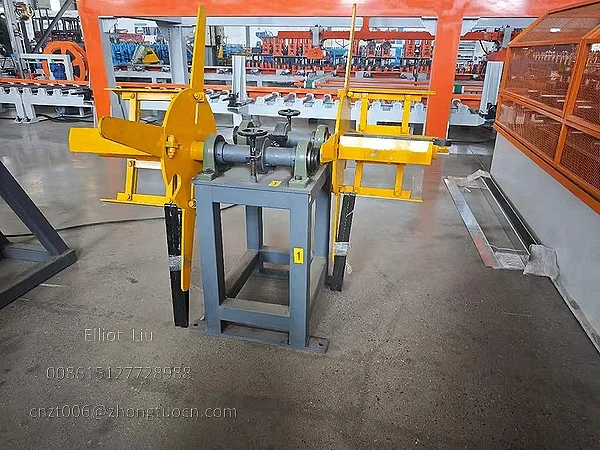

Two machines share one frame structure. Each machine runs independently without affecting the other. Each machine has its own feeding system. One decoiler head serves one machine in the double head decoiler setup.

Key features

• Two machines on the same frame, each running independently

• You can put two different profile machines on one frame, like a C stud machine and an angle steel machine

• Double head decoiler with one head serving one machine

• Shared frame saves floor space



When to use it

• Limited workshop space that cannot fit two separate machines

• Need to run two different profile shapes at the same time, like C studs and angle steel

• High production volume that needs both machines running



Main benefits

• Less floor space than two separate machines

• Machines don't affect each other. One line can keep running while you maintain the other

• Each machine feeds independently for continuous production



Things to consider

• Initial investment is higher than a single machine

• You need to check if there is steady market demand for both products

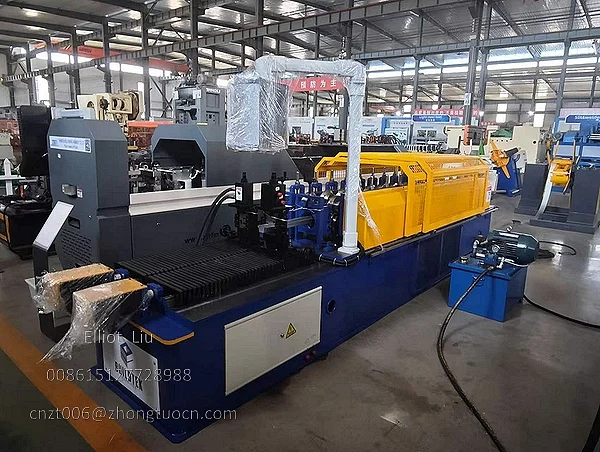

Configuration Two: Different Size Rollers on the Same Shaft

How it works

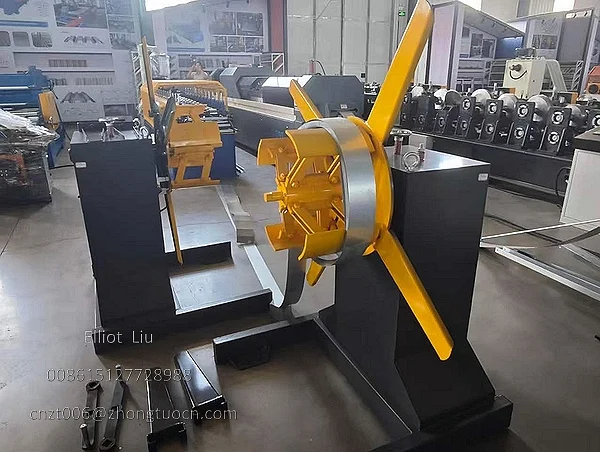

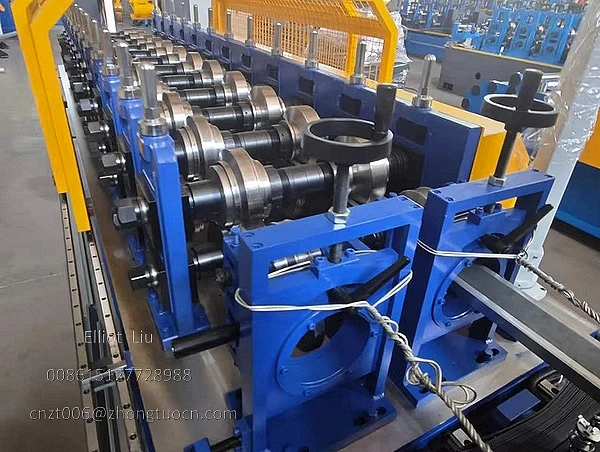

Two different size rollers mount on the same shaft. One size sits on the left, the other on the right. Each size has its own decoiler, control screen, hydraulic pump, and hydraulic shear.

During operation, the forming section for both sizes runs together. But only the side you need to produce feeds material. The other side's rollers spin without material. To switch sizes, stop feeding on one side and start the other.

Key features

• Different size rollers on one shaft

• Each size has its own decoiler, control screen, hydraulic pump, and hydraulic shear

• Both forming sections run during operation

• Only the production side feeds material. The other side's rollers idle





When to use it

• One product comes in different sizes, like different width studs

• Frequent size changes that make spacer adjustment time consuming

• Want to reduce spacer adjustment cost and time

Main benefits

• One machine makes two sizes. No frequent spacer changes needed

• No spacer adjustment or replacement saves labor and time

• One machine covers different sizes at lower investment



How to Choose the Right Light Gauge Steel Framing Machine Configuration

Your production needs determine which configuration fits best.

1. How many profile shapes do you need?

• One shape only, like C studs only → Standard single machine is enough

• Two shapes that need to run at the same time → Configuration one (two machines one frame)

2. How many sizes of the same shape do you make?

• One size → Standard single machine is enough

• Two sizes that don't need to run at the same time → Configuration two (multiple sizes on one shaft)

3. What problem does configuration two solve?

It lets you produce two sizes on one machine with easy size changes. No manual spacer changes. No frequent PLC spacer adjustments. It saves changeover time and labor cost. For manufacturers who alternate between two sizes, this balances cost and flexibility.

4. How much workshop space do you have?

• Limited space that cannot fit two separate machines → Configuration one (two machines one frame) is the better choice

• Enough space → Consider separate machines or other factors



Configuration Options Reference

The table below shows configuration possibilities. Note that these are options, not fixed specifications. Each machine is customized based on your profile types, sizes, and workshop conditions.

Common Selection Questions

Q: Which configuration fits a new light gauge steel framing producer?

If you have few profile shapes and low volume, start with a standard single machine. You can add configurations as your business grows. This approach spreads out your equipment investment.

Q: Is the double head decoiler required for configuration one?

Not required. But it is part of the configuration one package. Each head serves one machine with independent feeding, which supports continuous production.

Get a Configuration Recommendation

Every workshop has different space and production requirements. Whether you need two machines one frame to save floor space, or multiple sizes on one shaft to reduce changeover cost, we can recommend the right Light Gauge Steel Framing Machine configuration for your situation.

Tell us your target output, the profile shapes you need, how many sizes per shape, your available workshop space, and whether you need simultaneous or alternating production. We will provide a configuration reference based on your actual needs.
