Cold Rolling Embossing Machine 5 Meter Tables for Reliable Layout
‹ › Industrial walkway plates, equipment treads, and storage platforms often use embossed metal plates. The regular raised patterns on the surface are pressed in through embossing. To produce these products steadily, you need a complete cold rolling embossing machine line to handle every step from feeding to receiving. Applications of Embossed Metal Plates Embossed metal plates…
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
Industrial walkway plates, equipment treads, and storage platforms often use embossed metal plates. The regular raised patterns on the surface are pressed in through embossing. To produce these products steadily, you need a complete cold rolling embossing machine line to handle every step from feeding to receiving.

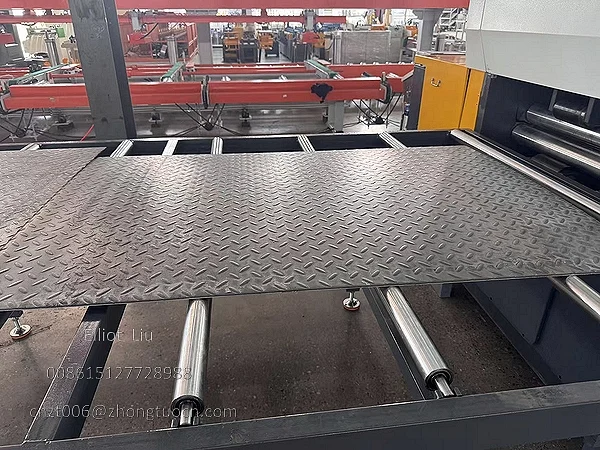

Applications of Embossed Metal Plates
Embossed metal plates are used widely in industrial settings. Common applications include industrial walkway plates, equipment treads, and storage platforms. These products need a slip resistant surface and some structural rigidity. Embossed patterns meet both needs.
A sheet metal embossing machine line handles these applications by running multiple steps continuously. These applications set clear requirements for embossing production: regular patterns, flat surfaces, and consistent quality in batch runs. Meeting these requirements by hand or with simple equipment is hard.
A cold rolling embossing machine line that runs multiple steps continuously is the solution for stable production.

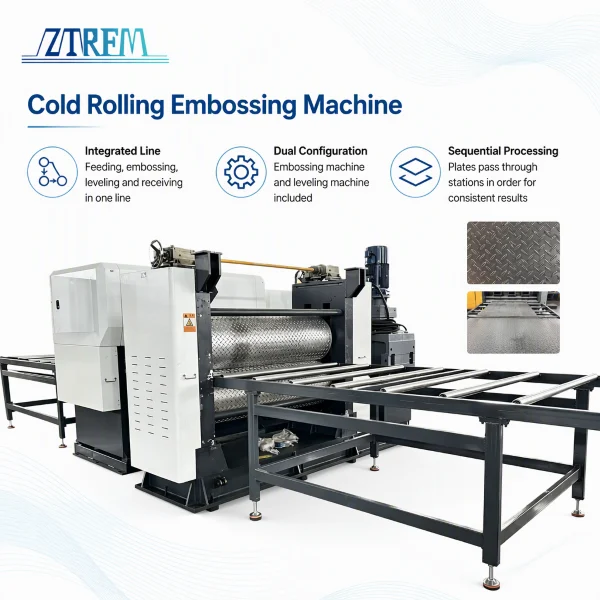

Line Composition and Unit Roles
This line has four units: input support table, embossing machine, leveling machine, and receiving table. Each unit has a different task in the production flow.
Input Support Table
The input support table helps feed plates into the line. In this configuration, it is 5 meters long. It gives the plate a stable support surface during loading. When planning space at the feed end, consider the actual plate length and loading method.
Embossing Machine
A cold rolling embossing machine uses an embossing unit as its core. It presses patterns onto the plate surface. The pattern shape and layout come from the embossing rollers. After the plate passes through, the surface forms raised and recessed textures that match the rollers.

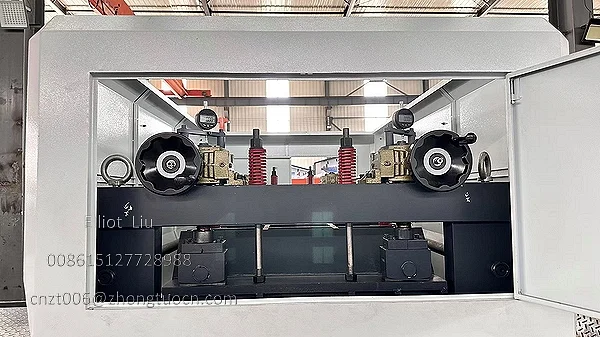

Leveling Machine
The leveling machine handles plate shape in the line. This configuration includes a leveling unit. The actual order between the leveling machine and the embossing machine needs confirmation based on the equipment layout. The position of the leveling unit affects the plate shape when it enters embossing.
Receiving Table
The receiving table collects finished products. In this configuration, it is 5 meters long. It collects plates after embossing. When planning space at the receiving end, consider the actual finished plate length and receiving method.
How the Units Form the Production Flow
The four units are arranged as part of the production setup. Plates pass through each station in order, completing the flow from feeding to receiving. How the units connect and the actual order of the leveling and embossing machines need confirmation based on the equipment layout.
Machine Parameters
| Parameter | Value |
|---|---|
| Processable material | Carbon steel |
| Material thickness range | 1.2 to 5 mm |
| Feeding width | ≤1520mm |
| Cutting length | Adjustable |
| Working speed | 5m/min |
| Input support table | 1 set, Length 5m |
| Embossing machine | 1 set |
| Leveling machine | 1 set |
| Receiving table | 1 set, Length 5m |
Machine Advantages
A cold rolling embossing machine line combines the input support table, embossing machine, leveling machine, and receiving table into one complete line. Plates move from feeding to receiving through these units.
Embossing and leveling are both part of the current configuration. Embossing forms the pattern. Leveling handles plate shape.
Site Planning Checklist
When planning site space for this line, check these items one by one.
Feed End Space
A metal sheet embossing machine line needs enough room at the feed end. The input support table is 5 meters long. You need to confirm the feed end space based on actual incoming plate length and loading method. Do not assume the feed end only needs 5 meters just because the table is 5 meters.
Receiving End Space
A cold rolling embossing machine line also needs room at the receiving end. The receiving table is 5 meters long. You need to confirm the receiving end space based on actual finished plate length and receiving method. Again, do not assume the receiving end only needs 5 meters.
Dimensions to Confirm for Line Layout
Total line length and width, actual spacing between units, feed and receiving directions, and installation, operation, and maintenance space all need confirmation based on the actual equipment layout.
Factory Aisle and Material Handling
Confirm that factory aisle width meets plate handling needs. Confirm that the material flow path from feed end to receiving end is smooth.
This cold rolling embossing machine line includes four units: input support table, embossing machine, leveling machine, and receiving table. It processes carbon steel from 1.2 to 5 mm thick, with feeding width up to 1520 mm. The units are arranged as part of the production setup to form a flow from feeding to receiving. When planning site space, check feed and receiving end space based on actual incoming and finished plate lengths. Confirm total line dimensions and unit order based on the actual equipment layout.
