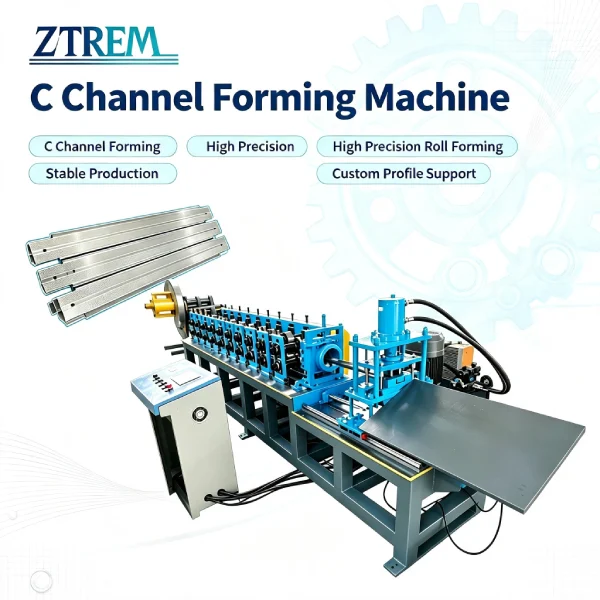

Producing C channel continuously means punching and cutting while the material moves. Stopping the line for each cut slows production and creates inconsistencies. The equipment must track the material's position and speed to trigger each action at the right moment. A c channel forming machine with automatic tracking addresses this.

For customers making steel bridge bars, hole position directly affects installation. Each hole on the C channel aligns with a hole on the framing member. If the position drifts, installers must ream or re-drill on site. That costs time and labour far beyond what it takes to get it right on the line.

Where C Channel Is Used in Steel Framing

A c channel forming machine produces C channel primarily as steel bridge bars. These bars are used in several applications:

• Parallel connections in light gauge steel framing, installed between floor joists and roof trusses to create a stable load path

• Top fixing for interior non load bearing walls, providing an anchor point between the wall top and the overhead structure

• Prefabricated building systems that require rapid assembly, where bolts pass through pre punched holes without drilling or welding on site

The bridge bar spans across parallel framing members. Bolts pass through the pre punched holes on the C channel and into the member's receiving holes. When hole positions are accurate, installation proceeds smoothly. When they are not, site crews must ream or re-drill. That extra labour and schedule delay far outweigh the cost of proper positioning on the production line.

What Automatic Tracking Punching and Cutting Delivers

A c channel forming machine with automatic tracking punches and shears without stopping the line. The PLC controlled system keeps the punching and shearing actions synchronized with the forming speed. The customer gets continuous production without frequent starts and stops.

Speed changes can affect hole positions if the system does not track properly. A length measurement system feeds back the material position, and the control adjusts the punching and shearing timing accordingly. This helps maintain consistent hole spacing across the entire speed range.

Gear transmission is used on this c channel forming machine, which provides more consistent synchronization between roller stations than chain drives. This contributes to stable hole positioning over long production runs.

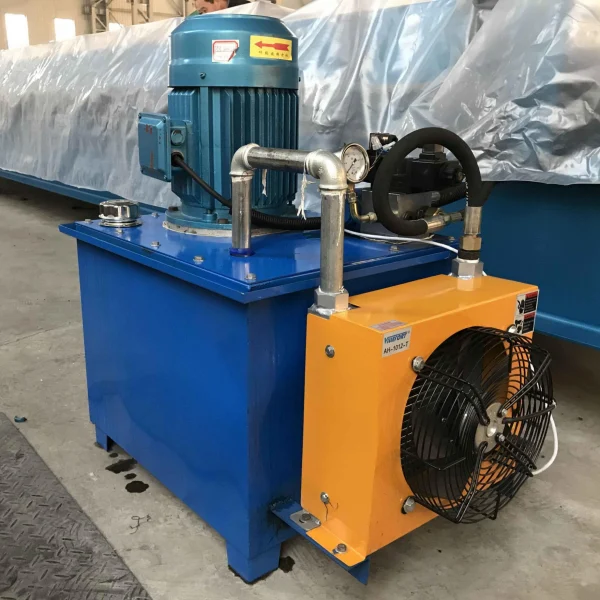

The hydraulic station powers both punching and shearing. The control sequences the actions, punch first then shear, to avoid interference. Cr12 blades are used for cutting galvanized material, providing cleaner cuts with fewer burrs. This reduces the need for secondary deburring.

All these features aim to produce C channel with accurate, consistent hole positions. Accurate holes mean bolts fit on site without reaming or rework.

Machine Parameters for Consistent Punching

Key parameters related to punching and cutting:

A unistrut channel roll forming machine shares similar principles, but the configuration and tooling differ for each profile type.

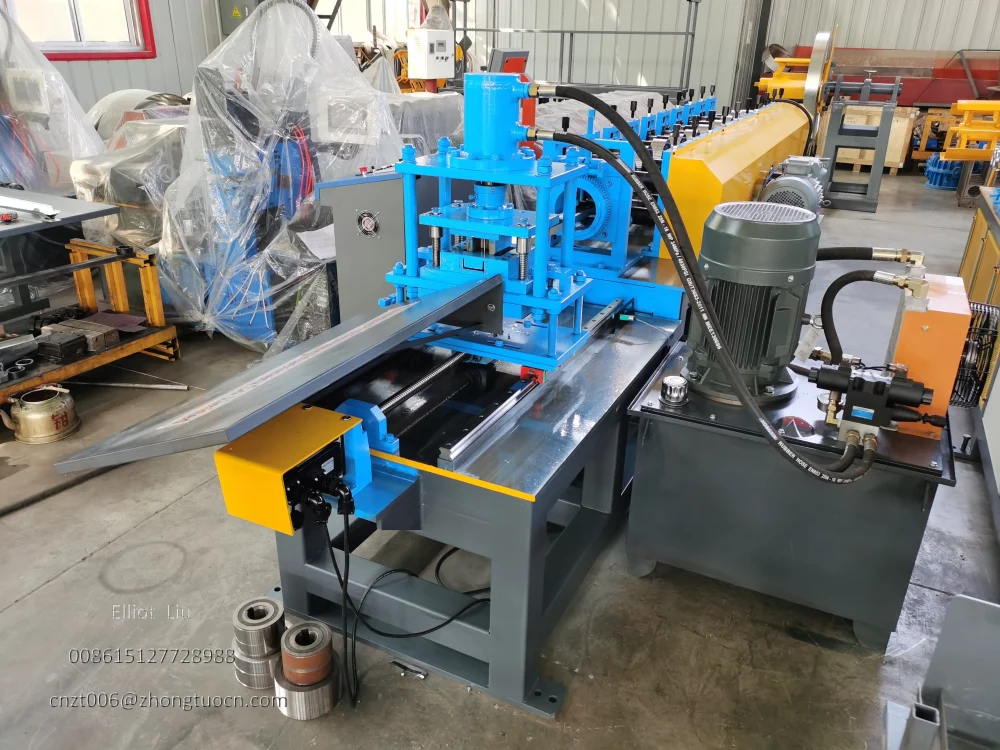

Connecting Forming, Punching, and Cutting

A c channel forming machine links forming, tracking, punching, and cutting into one continuous sequence.

Material uncoils from the decoiler and passes through the roller stations. Formed C channel moves directly into the punching and shearing station without intermediate handling. The control system coordinates punching and cutting with the length feedback from the forming section. All sections share the same speed reference and stay aligned on the same timeline.

For the customer, this means coil goes in, finished C channel comes out, and the line does not need to stop for punching or cutting.

A c channel forming machine with reliable tracking and punching helps you put hole accuracy on the production line, not on the job site. If the C channel you produce is used for steel bridge bar connections, confirm that the machine's punching system and tracking capabilities meet your hole position requirements. The right equipment will save time, reduce labour, and lower rework costs over the long run. A channel forming machine configured properly for your profile and hole pattern makes that possible.
