When sourcing purlins or planning a production line, many people struggle with which is stronger between C and Z sections. The answer is not a simple matter of one being better than the other. It depends on span, load, and connection method. Under the same section dimensions, Z purlins offer better wind uplift resistance than C purlins. This difference comes not from the material itself, but from the structural logic determined by the section shape.

At the same time, purlin manufacturers face another reality: if a project requires both types, a Quick Changeable C Z Purlin Roll Forming Machine can produce both sections efficiently and help simplify production planning.

C Purlin vs Z Purlin – Strength and Performance Comparison

The core reason Z purlins offer higher strength lies in lapping. The Z section allows lapping at support positions, creating a continuous beam effect with more uniform load distribution. After lapping, the moment of inertia at critical supports can increase significantly, improving load capacity and reducing deflection. C purlins connect end to end and are calculated as simply supported beams.

The strength advantages of Z purlins appear in three areas:

• Higher load capacity under wind uplift conditions

• Continuous lapping distributes loads more evenly, making Z purlins suitable for long spans and heavy loads

• The continuous beam effect after lapping reduces mid span deflection and improves overall structural integrity

However, Z purlin strength advantage has one prerequisite: lapping must be possible. If a project does not allow lapping and only simple support installation is possible, the Z section advantage cannot be realized. C purlins are stable enough under simple support conditions and simpler to install.

Core conclusion: Z purlins are stronger when continuous lapping is used. C purlins are sufficient under simple support conditions and easier to install. The choice depends entirely on the application scenario.

Applications and Industry Scenarios

After understanding the strength differences, let us look at where each purlin type is typically used.

Typical C purlin applications:

• Wall purlins and girts in steel buildings

• Small to medium span roof systems (economic span 4-6m, applicable span 4-9m)

• Floor beams and secondary structures

• Roof support under simple support conditions

• Door and window openings and special joint details

Typical Z purlin applications:

• Long span roof systems (span 6-9m, commonly used in industrial buildings)

• Continuous lapping roofs where Z purlins can lap at supports to form continuous members

• High wind pressure or heavy load areas

• Steep slope roofs

• Roof structures requiring longitudinal continuity

Scenarios requiring both purlin types:

• Large industrial buildings (C for walls + Z for roofs)

• Logistics and warehousing projects

• Light steel villa complexes

• Steel structures involving both walls and roofs

For walls, choosing between Z and C sections makes little difference. But if purlins need to be continuous members, Z purlins are the better choice because they lap conveniently.

Production Flexibility and Machine Advantages

From the application scenarios above, it is clear that a modern steel project often requires both C and Z purlins. If a factory can only produce one section type, its order intake will inevitably be limited. The value of a quick changeable c z purlin roll forming machine lies in enabling the factory to respond to different project requirements. For manufacturers looking for more automation, a c z purlin roll forming machine full automatic is also available to further reduce manual intervention.

Why Production Flexibility Matters for Purlin Manufacturers

After understanding the selection logic for C and Z purlins, we need to look at this from the production side.

• Order structure diversity: different projects may require both C and Z sections. Producing only one section means giving up part of the market.

• Small batch order challenge: long changeover times make small batch orders unprofitable. Quick changeover allows factories to take on more order types.

• Material variation response: the ability to switch between galvanized coil, cold rolled coil, and hot rolled coil directly affects procurement flexibility and cost control.

• Flexibility itself is competitiveness: being able to take orders others cannot, responding quickly to customer needs, that is where market competitiveness comes from.

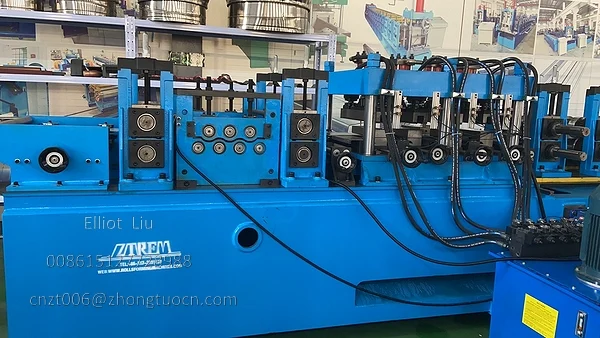

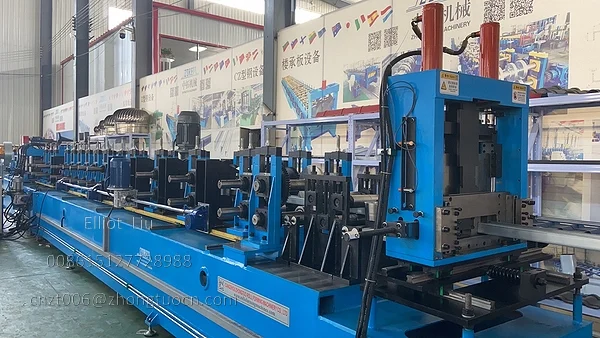

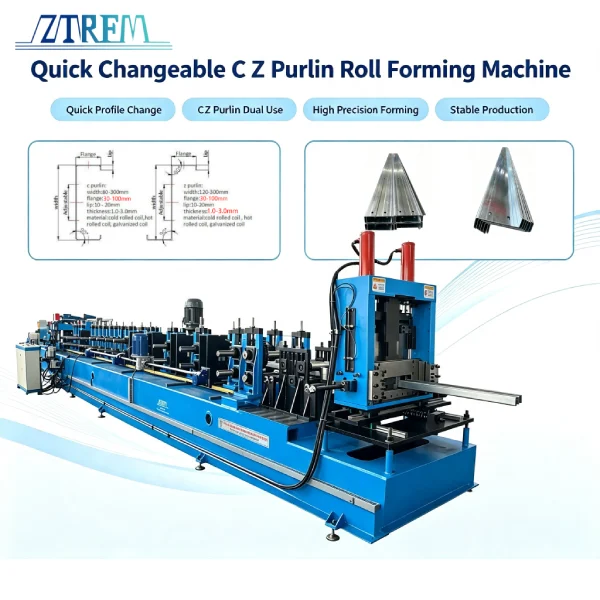

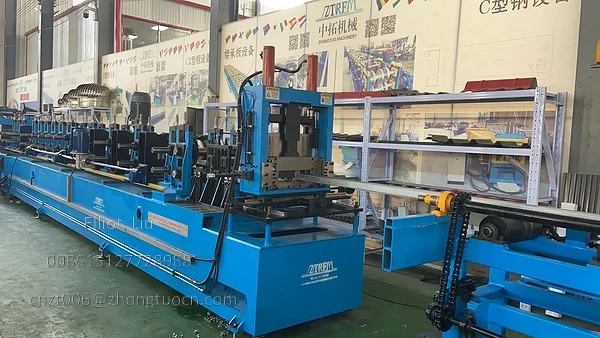

Advantages of the Quick Changeable C Z Purlin Roll Forming Machine

This quick changeable c z purlin roll forming machine offers the following equipment advantages:

• One button C/Z changeover: touch screen operation, no die change needed, changeover time greatly reduced

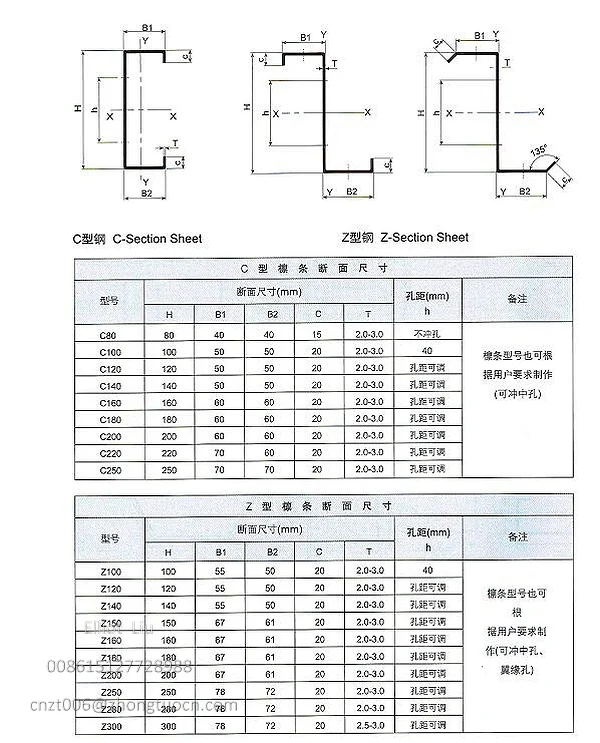

• Continuous size adjustment: C purlin width 80-300mm, Z purlin width 120-300mm, flange and lip dimensions all adjustable

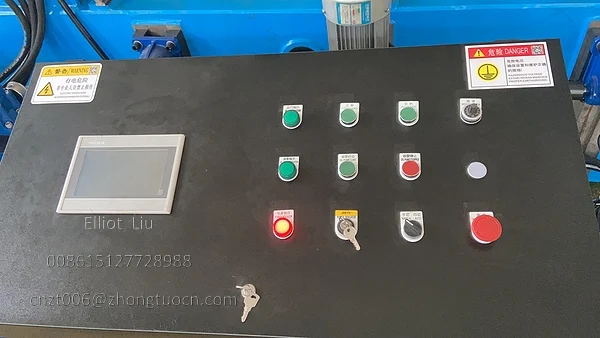

• One person operation: PLC control with touch screen interface, regular worker can operate after half a day training

• Material compatibility: works with galvanized coil and low carbon steel, no equipment change needed

• Data storage: common sizes can be saved in the system and recalled with one touch next time





For factories with diverse order requirements, an auto c/z purlin roll forming machine provides the flexibility to switch between sections without interrupting production flow.

Technical Parameters

When to Choose C Purlin or Z Purlin

Based on the strength comparison and application scenarios above, here are specific selection recommendations. A high speed cz purlin roll forming machine helps meet tight delivery deadlines while maintaining consistent quality across both section types.

• Span ≤6m, wall support, floor structure → C is more economical

• Span >9m, roof system, high wind pressure area → Z is more reasonable

• Span 6-9m, involving both walls and roof → both may be needed

• When continuous lapping is possible → Z strength advantage can be fully realized

• Wall applications → C and Z make little difference, either works

• When continuous members are needed → Z purlins lap conveniently and are the better choice

Design should consider slope, span, and load type comprehensively. Do not look only at strength data. Construction conditions and design requirements also matter.

From Material to Structure – A Complete View

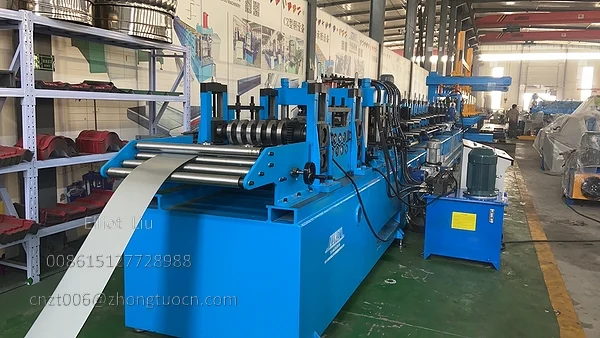

Steel coil goes into the forming equipment and becomes C or Z sections through cold roll forming. The difference in these two section shapes determines their different roles in buildings. C sections work well for simple support, walls, and small to medium spans. Z sections work well for continuous lapping, roofs, and long spans.

Z purlins offer higher wind uplift resistance than C purlins of the same size. But this does not mean Z is superior in every situation. Selection depends on span, load, connection method, and construction conditions.

A modern steel project often needs both purlin types working together, C for walls and Z for roofs. Therefore the production side logic becomes clear: a quick changeable c z purlin roll forming machine that produces both sections and switches quickly is a reasonable choice aligned with market demand. For operations prioritizing rapid section changes, the cz fast changing purlin roll forming machine delivers the responsiveness needed for dynamic production schedules.

The article covers a complete chain: material to section shape to structural performance to building application to production equipment. Understanding all links leads to better purchasing and production decisions.
