Searching for the right roofing sheet production equipment can be confusing. Different profiles require different machines. Before choosing equipment, you need to know which profile you will produce. A metal roof tile press machine is one of the key equipment options for certain profile types.

This article explains roofing sheet production equipment: what machines work for different profiles, how they operate, what to consider when selecting, and which equipment suits trapezoidal roofing sheets.

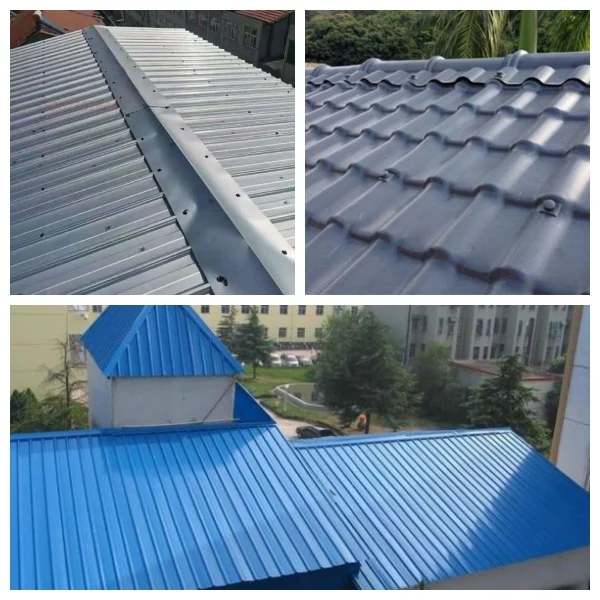

Common Applications of Roofing Sheets

Roofing sheets serve many construction sectors.

• Industrial plants and warehouses: roof covering

• Residential housing: sloped roofing

• Agricultural greenhouses: simple roof structures

• Large public buildings: metal roofing systems

• Commercial buildings: exterior wall cladding

Different applications use different profiles. Simple profiles like corrugated sheets need fewer forming passes, while complex profiles like trapezoidal sheets require more forming stations and higher roller precision. A tile roof making machine typically handles more complex profile shapes.

Advantages of a Roofing Sheet Forming Machine

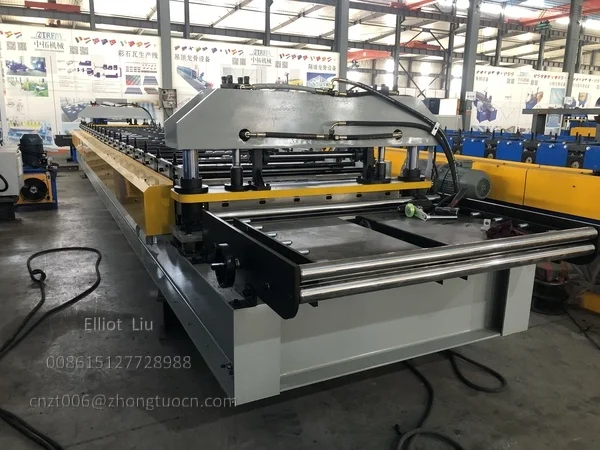

• Stable production: The frame uses high strength H beam steel welded construction. The whole unit weighs 6.5 tons. The rollers stay in position during operation, so each sheet maintains consistent width and shape.

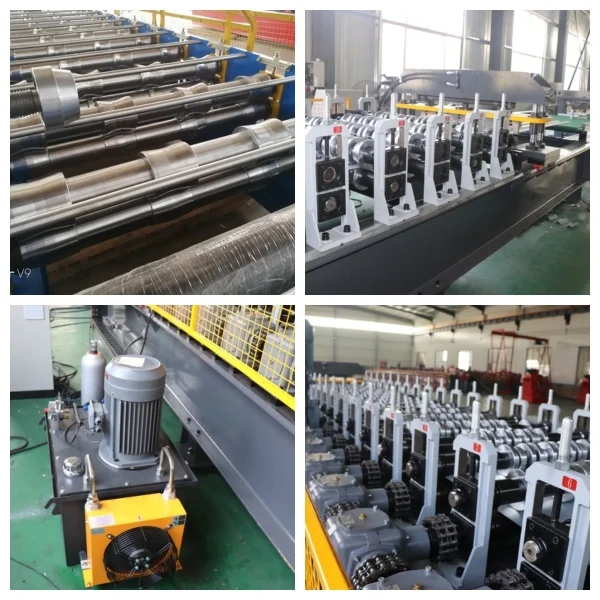

• Surface protection: The rollers use 45# steel with hard chrome plating. Stainless steel feed rollers are also used in the entry section.



• Drive system: The machine uses a double chain drive. The shafts are made of 45# steel with quench treatment and measure 80mm in diameter.

• Control system: The machine uses PLC control with a touchscreen interface. The touchscreen supports Chinese, English, and Spanish. A color roof tiles machine shares similar control features.

• Cutting system: The machine uses hydraulic cutting with encoder measurement. Cutting tolerance is ±1mm per 3 meters. The metal roof tile press machine achieves this level of cutting accuracy through its hydraulic system.





How to Choose a Machine for Different Profiles

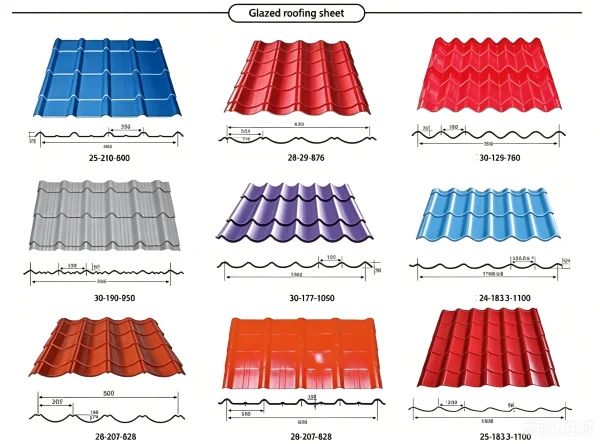

Equipment selection depends on the profile type. Corrugated sheets use a corrugated roll forming machine. Trapezoidal sheets use a trapezoidal roll forming machine. A double layer machine has two forming systems on one unit and can produce two profiles, though it costs more. A tile roof making machine works well for tile profiles.

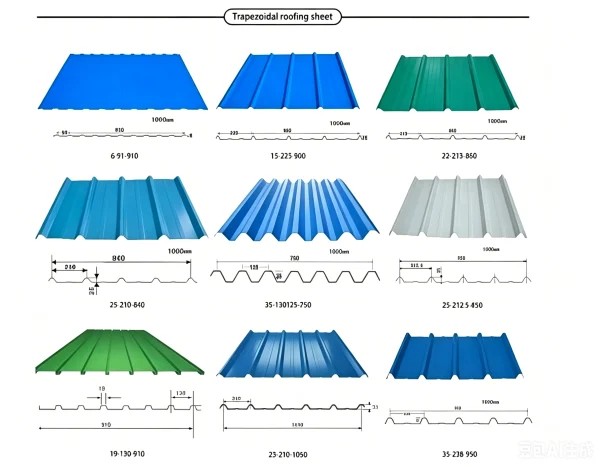

Trapezoidal sheets have sharp ribs and tight corners. They need more forming stations and higher roller precision. The frame must also handle greater forming force.

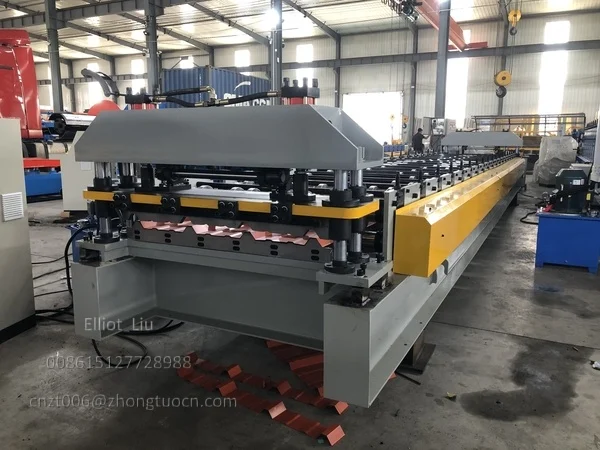

A metal roof tile press machine is used for trapezoidal profile production. It uses a cold roll forming process where the metal strip passes through forming stations and gradually takes the trapezoidal shape.

Key Specifications

Production Line Components

A complete trapezoidal roofing sheet production line includes: manual decoilers, an entry table with manual pre shearing device, the main roll forming machine, a hydraulic cutting mechanism, receiving tables, a hydraulic station, and an electrical control cabinet.

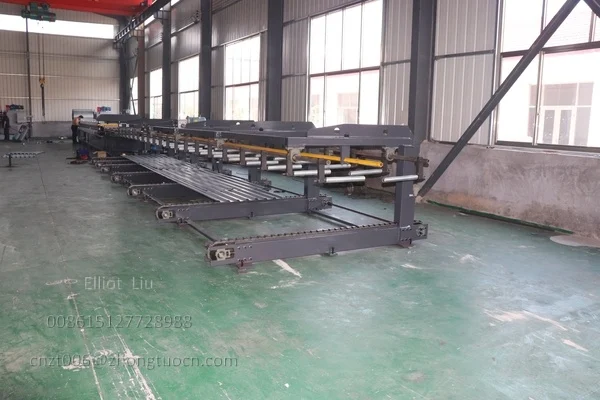

Optional components include: an automatic hydraulic decoiler with loading cart and speed sensor, and an automatic stacker.

The manual pre shearing device cuts only the coil joint during coil change. The automatic hydraulic decoiler reduces coil change time.

Choosing the right roofing sheet production equipment depends on the profile type, materials, and production volume. If you have profile drawings or material specifications, we can help determine which configuration suits your needs.
