The most underestimated component on a construction site is the door frame. When selecting products, engineering teams tend to focus on door leaf appearance and locks, but they overlook that the frame's precision and strength determine the entire door's service life. If the frame deforms or is installed poorly, even the best door leaf will not close properly, will sag, or will have misaligned latches.

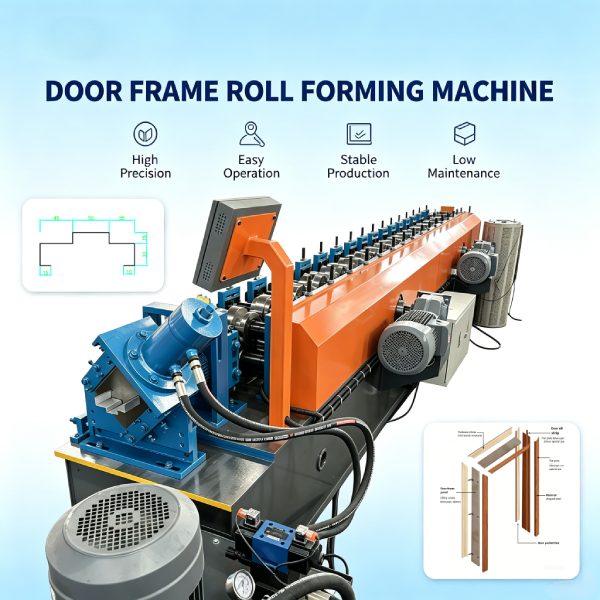

The door frame roll forming machine we designed solves this structural problem. It uses rollers to gradually cold form metal coil into profiles with precise cross sections and excellent straightness. The profiles can be fixed directly to the wall upon arrival at the site without secondary trimming, providing a stable and reliable mounting base for the door leaf.

Core Advantages and Value of the Equipment

This door frame roll forming machine addresses the pain points of traditional forming processes from three aspects.

How the Equipment Ensures Structural Support Capacity of Door Frames

Door frames bear the full weight of door leaves, and each open and close transfers load through the hinges to the frame. Sufficient stress relief during forming prevents sagging and sticking after long term use. The machine's 17 roller stations with gradual cold forming and the memorial arch style heavy frame ensure long term stability of profile cross section dimensions.

How the Equipment Achieves Sealing and Protection Functions for Door Frames

The gap between door frame and leaf directly affects sealing performance, and profile regularity and bending precision are prerequisites. The profiles produced by this equipment have consistent groove dimensions and uniform gaps, delivering reliable sealing performance.

How the Equipment Provides a Precise Base for Hardware Installation

Door frames carry hinges, locks, and other hardware, and the flatness of mounting surfaces directly affects assembly accuracy. This equipment holds length tolerance within ±1.0 mm for 3 meter sections, providing a reliable base for hardware installation and reducing on site rework.

Door Frame Cross Section Profile Drawings

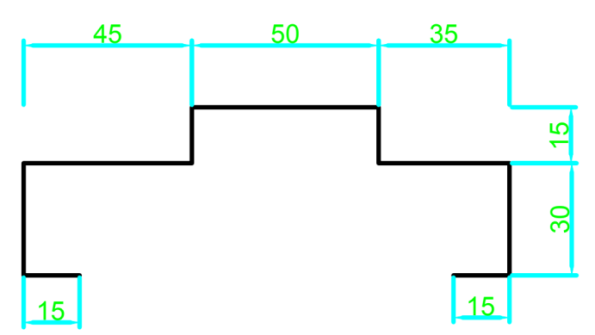

The advantages above translate into specific profile cross section shapes. The image below shows the typical door frame cross sections this equipment can produce under standard configuration.

Application Fields

The cross section shapes produced by this equipment correspond to different building installation scenarios. This door frame roll forming machine covers the following application areas:

• Residential buildings: entry security door frames and interior door frames

• Commercial buildings: office partition door frames and shop door frames

• Industrial buildings: factory fire rated door frames and equipment access door frames

• Public facilities: door frames for schools, hospitals, and subway stations



Other Door Frame Cross Section Profile Drawings

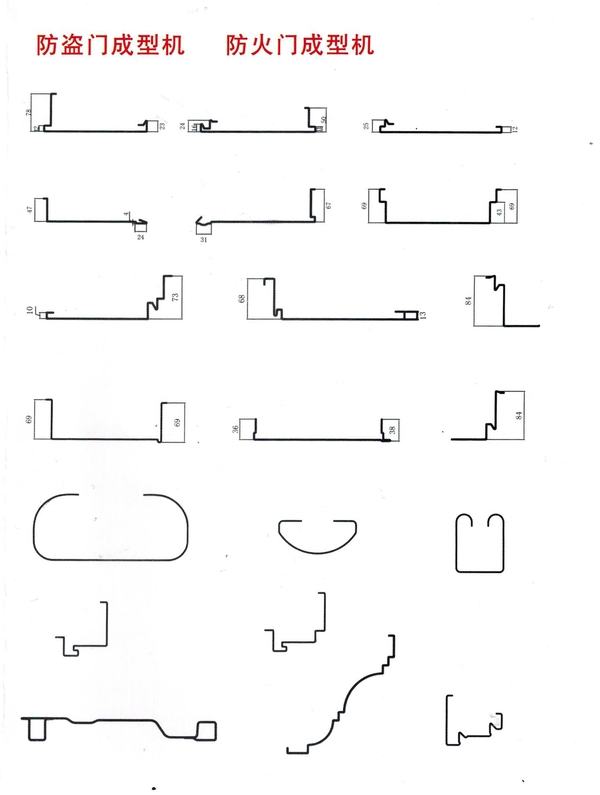

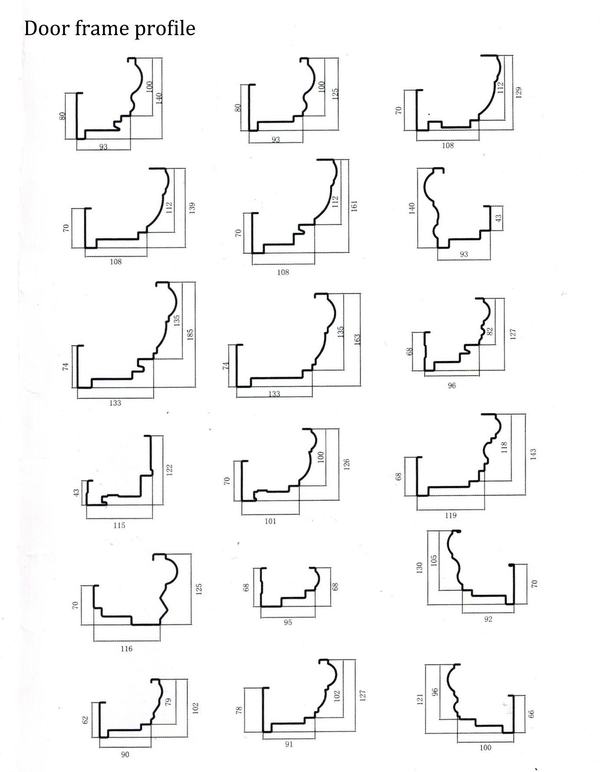

Beyond the standard profiles above, this equipment can produce various other cross section shapes through roller design adjustments. The images below show common variations with different leg heights, different return bend styles, and different stiffener designs for your reference against your project drawings.

How the Production Flow Ensures Profile Quality

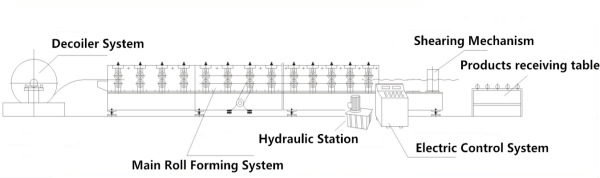

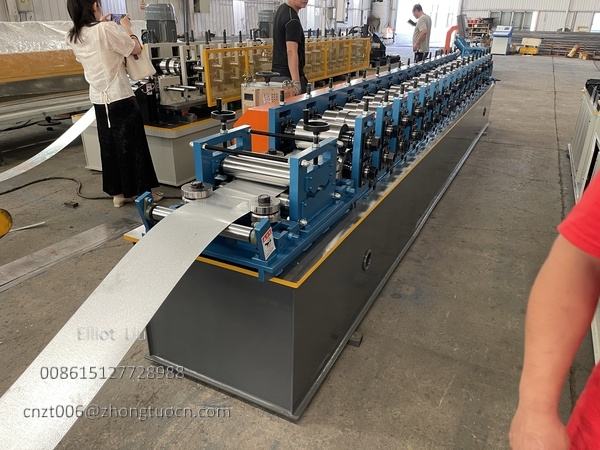

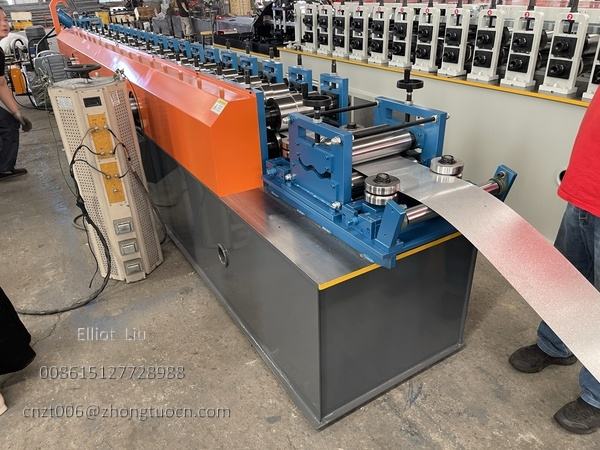

To stably produce all the profile versions above, the equipment's production flow is the key. The door frame roll forming machine runs from coil to finished product in one continuous process. The decoiler uses a passive pull method and relies entirely on the main machine to draw the coil forward, avoiding stretching damage that active motor starts and stops can cause on thin sheets. The strip then enters the leveling unit, where multiple leveling rollers remove the coil's inherent bending stress and edge waves.

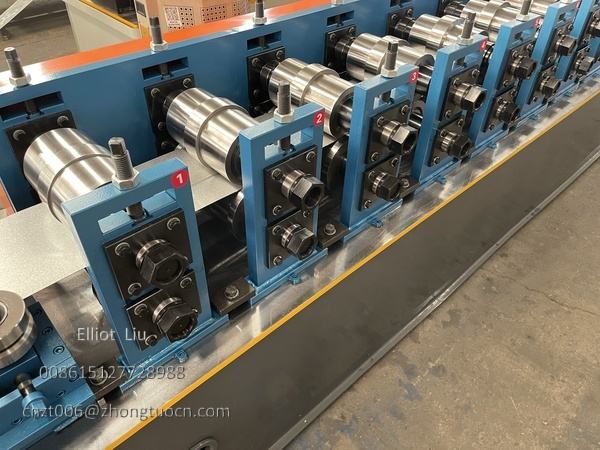

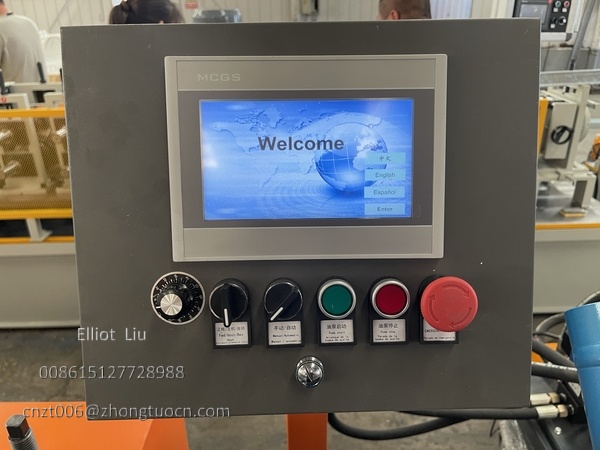

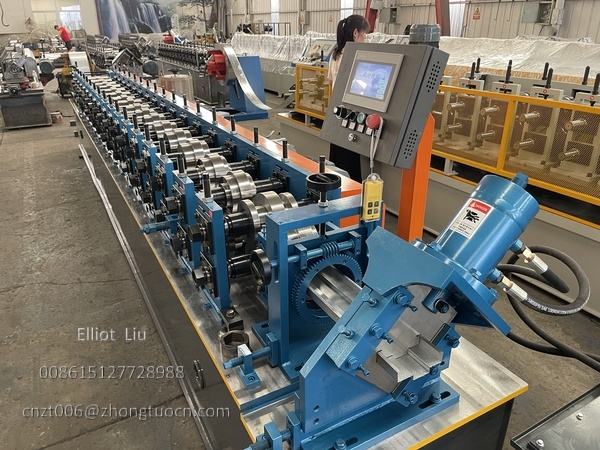

The leveled strip enters the main machine in a straight state and passes through 17 roller stations sequentially. All stations are driven by a gearbox for synchronized hard mesh drive, ensuring that each station maintains exactly the same line speed and eliminating internal stress from speed differences. The continuously formed profile exits the main machine and enters the hydraulic shear. An encoder measures the passing length in real time, and the PLC triggers the cutting command when the preset length is reached.

How Customization Options Meet Different Project Requirements

Beyond the standard flow, the equipment offers flexible customization options. Different building projects have different requirements for door frame cross section shapes. This equipment supports custom roller designs for different cross sections. Customers simply provide their target profile drawings, and we can adjust the roller configuration accordingly.

Beyond the cross section shape, this equipment offers multiple customizable options. Voltage can be adapted to various national grid standards. Forming speed range can be set according to production capacity requirements. Drive type can be selected between gear transmission and chain transmission. Equipment color can also match workshop color schemes.

Technical Parameter Table

The capabilities above are summarized in the following core technical parameters.

Frequently Asked Questions

Based on the parameters above, customers often ask the following questions during actual use.

What coil materials can this door frame roll forming machine process?

The equipment can process GI, low carbon steel, and cold rolled steel. The thickness range covers 1.0 to 1.5 mm, meeting the requirements of different scenarios including residential entry doors, interior doors, and industrial fire rated doors. No roller change is needed when switching materials; one set of rollers covers all the materials and thicknesses above.

How long does equipment installation and commissioning take?

The equipment has completed full assembly and no load trial run before delivery. Upon arrival at the customer site, installation involves positioning and connecting each workstation according to the installation drawings. The compact line layout covers approximately 9 square meters (7500 x 1200 mm), making it suitable for standard workshop installation conditions.

What are the main points of daily maintenance?

The rollers and blades use GCr12 material with good wear resistance, so they do not need frequent replacement under normal production conditions. The hydraulic station uses 46# anti wear hydraulic oil, and we recommend regular checks on oil level and quality. The gear transmission system uses hard mesh drive with low maintenance requirements.

What is the equipment's production speed?

The forming speed is continuously adjustable from 0 to 20 meters per minute. Customers can flexibly choose the operating speed according to order urgency and material characteristics, balancing production efficiency and forming quality.
