In your workshop, can the loading cart only approach the decoiler from one direction? The forklift has to go around to a specific spot every time. The crane operator also has to adjust the lifting angle repeatedly. Your operators spend too much time on alignment and positioning instead of actual production.

This decoiler 7 ton 1250mm comes with an electrically rotating loading cart that is 1250mm wide. The cart can rotate 360 degrees electrically. Whether the forklift comes from the side or the crane lifts from above, the cart turns to the right position for loading. No more repeated adjustment of the lifting direction. One person can handle it easily.

Core Advantages

Loading without direction limits
The cart on this decoiler 7 ton 1250mm rotates 360 degrees electrically. It accepts coils from any direction the forklift comes from and aligns with any angle the crane uses. Workshop layout becomes more flexible. Equipment placement is no longer restricted by loading direction.

One person can load coils

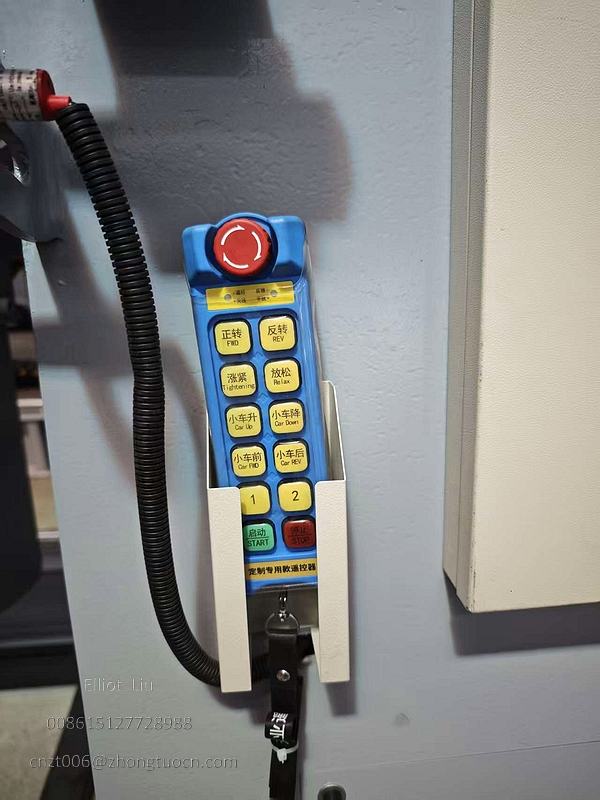

A wireless remote control handles the cart's rotation, lifting, and movement. The operator stands next to the coil and completes all actions. No second person is needed for direction or assistance.

Stable under 7 ton heavy loads
The cart has a rated capacity of 7 tons. Its 1250mm wide platform keeps coils stable. Thick and thin sheets both sit securely without tilting from center of gravity shifts.

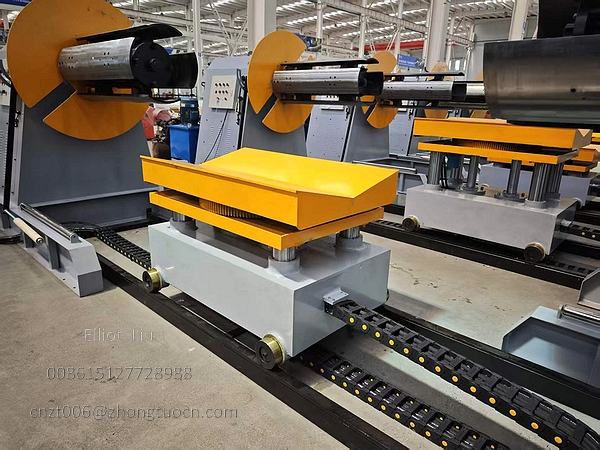

One cart serves two lines
Two decoilers can share one cart alternately. You save one cart purchase and floor space. Equipment investment and workshop area both come down.

How Decoiler 7 Ton 1250mm Works

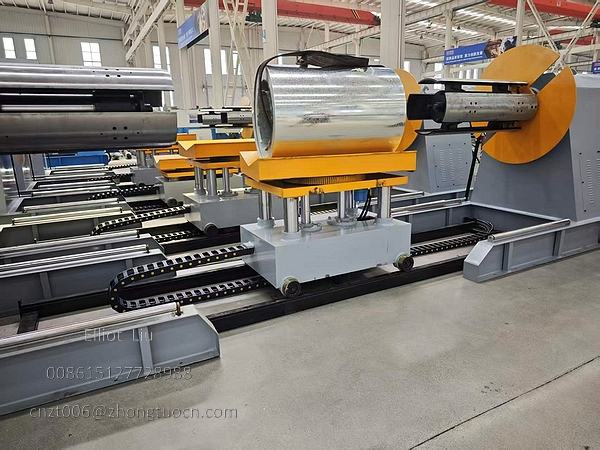

The cart carries the coil along the track to the decoiler position. Once in place, the cart platform on the decoiler 7 ton 1250mm rotates electrically to the target angle and aligns precisely with the decoiler mandrel. The hydraulic oil cylinder pushes the expansion mechanism, locking the coil's inner diameter within the 450mm to 610mm range. The motor then drives the decoiler mandrel to rotate, uncoiling the material and feeding it continuously to the forming line.

Throughout this process, the operator uses only the remote control for rotation, lifting, and movement. The cart can lift and travel. Coil transport, alignment, and loading happen in one smooth sequence. There is no extra manual work and no waiting for repeated adjustments.

Applications

The decoiler 7 ton 1250mm suits these production scenarios:

• Continuous feeding for steel purlin and floor decking production lines

• Coil supply for solar mounting section forming lines

• Parallel processing of storage rack columns and beams

• Batch production of cable trays and metal wire ducts

• Coil uncoiling for agricultural greenhouse frames and light gauge steel framing



Specifications Overview

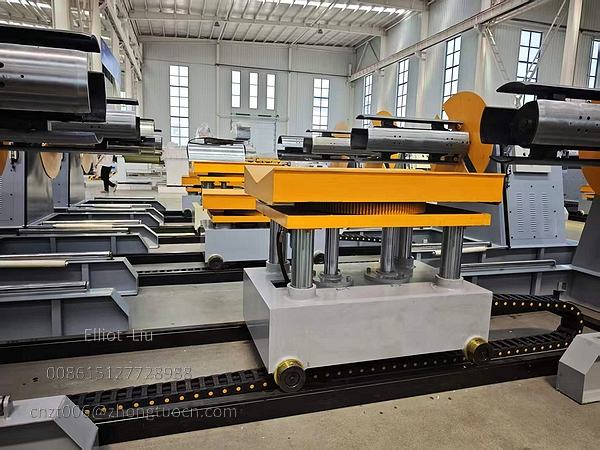

How Does a 7 Ton 1250mm Loading Cart Rotate 360 Degrees Electrically?

You might wonder: how does a 7 ton steel coil sitting on a cart actually rotate 360 degrees? Won't it struggle to turn or become unstable?

The answer lies in the drive structure of the decoiler 7 ton 1250mm. The cart uses an electric drive with a small gear transmission that breaks the rotation into fine step by step movements. Each jog turns the cart by only a small angle. The operator can stop it precisely at any position. Under a 7 ton load, rotation stays smooth with no significant wobble or positioning deviation.

What does this mean for you? Your forklift doesn't need to go around to a fixed spot. The crane doesn't need repeated lifting point adjustments. The cart turns to the coil's direction and aligns with the decoiler mandrel. It's that simple.

Selection Considerations

When choosing a decoiler, the cart rotation method is a detail that is often overlooked but makes a huge difference.

A fixed direction cart for the decoiler 7 ton 1250mm requires the forklift or crane to deliver coils from the same spot every time. Your workshop must reserve dedicated access and operating space for this. If the equipment layout changes or the forklift is busy with other tasks, loading gets stuck.

An electrically rotating cart gives you complete freedom. The coil's delivery direction does not matter. The cart turns to receive it. You can arrange forklift routes and crane lifting points based on actual workshop conditions. No need to redesign the entire workshop just to accommodate the equipment.

Frequently Asked Questions

Q: Will a 7 ton steel coil on the cart of the decoiler 7 ton 1250mm become unstable during rotation?
The cart platform is 1250mm wide, matching the coil width. The coil's center of gravity sits within the central area of the platform. Rotation does not cause noticeable wobble or tilting.

Q: Is the cart rotation automatic or manual?
It is electric. The operator controls rotation direction and angle through buttons on the remote control. Each jog moves the cart by a small step, allowing precise positioning at any angle.

Q: Is it troublesome to switch the shared cart between two decoilers?
Not at all. The cart moves along the track between the two decoilers. It takes only about ten seconds to go from one to the other. The interlock logic ensures the cart responds to only one decoiler at a time, so there are no command conflicts.

Q: Does the equipment support export for voltage and control systems?

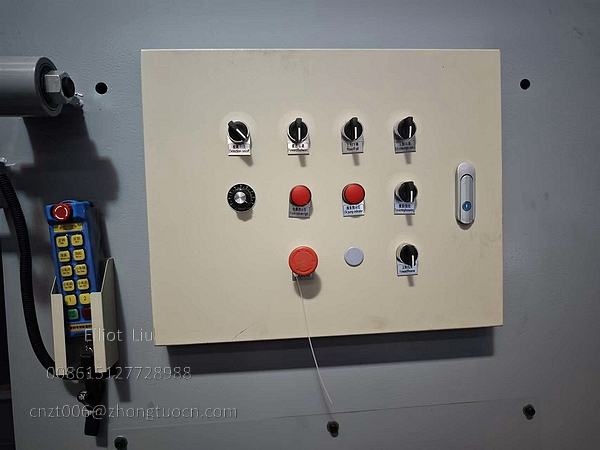

The standard voltage is 380V 50Hz three phase. The control panel supports Chinese and English switching. Other voltage levels and language options can be customized for the export destination.

Q: Is cart maintenance complicated?
Not really. Regular track cleaning, gear lubrication, and brake sensitivity testing are all that is needed. All electrical components use common models, so spare parts are easy to source.

Other Equipment in This Series

• 7 ton electric decoiler with hydraulic loading cart

• 10 ton hydraulic decoiler with lifting loading cart

• Heavy duty decoiler with rail mounted coil transport cart

• Manual decoiler with simple loading table

Typically, a decoiler 7 ton 1250mm with an electrically rotating cart can reduce single loading time from the traditional 10 to 15 minutes to under 5 minutes. With 10 coil changes per day, that saves nearly two hours of loading time daily. That time used to be spent on repeatedly adjusting forklift angles and crane lifting positions.
