When a new machine arrives at the factory, the biggest headache is not installation, but workers not knowing how to run it. Senior staff can't read the English interface. New hires are afraid of pressing the wrong button and breaking the machine. You bought automated equipment, yet for the first few months you still rely on remote guidance from the manufacturer to get it running.

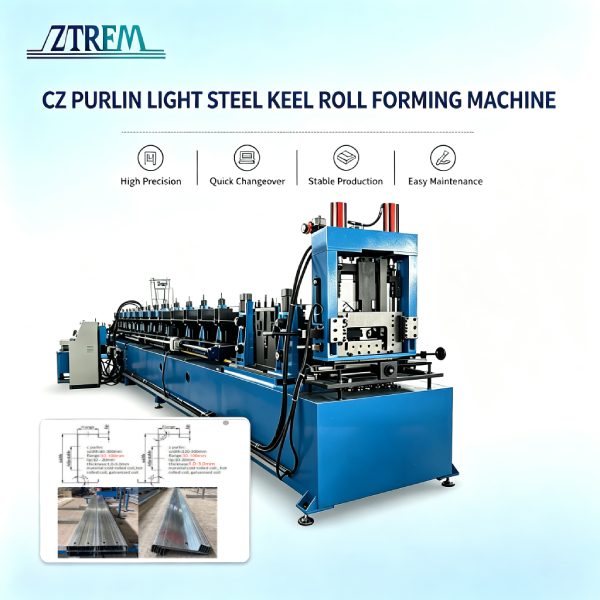

Is operating the cz purlin light steel keel roll forming machine really that complicated. It's not. Our machine hides the complex process flow in the background. The operator only needs to set a few parameters on the touch screen, and the PLC handles the rest. From startup to changeover, the whole process is clear and simple. A regular worker can work independently after just half a day of training.

Application Areas

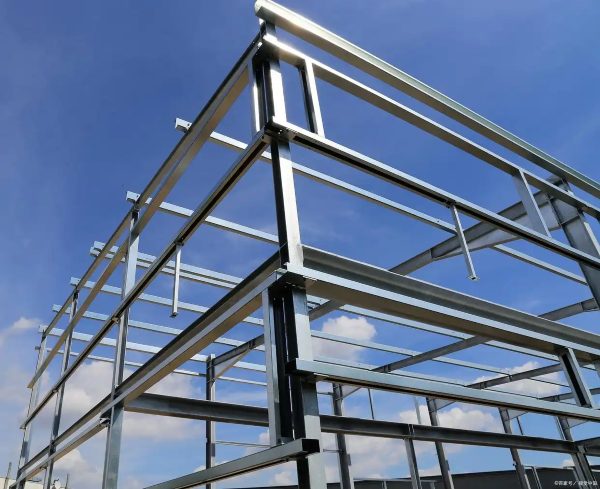

What does this machine produce? The cz purlin light steel keel roll forming machine makes channels for a wide range of applications.

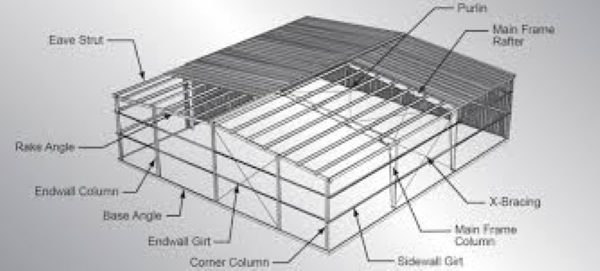

• Roof purlins and wall purlins for industrial factory buildings

• Rack supports and roof structures for logistics warehouses

• Framework systems for agricultural greenhouses

• Support structures for solar panel mounting

• Wall studs for light steel frame villas

• Roof and wall secondary structures for commercial buildings

How cz roll forming machine manual?

Now that you know what the machine produces, you are probably more concerned about whether it is easy to operate. Operators fear complicated interfaces and too many buttons. We simplified the cz purlin light steel keel roll forming machine's operation to the extreme. All controls are on one touch screen. Enter width, flange height, and thickness. The system adjusts each station automatically. No manual screw turning. No rulers.

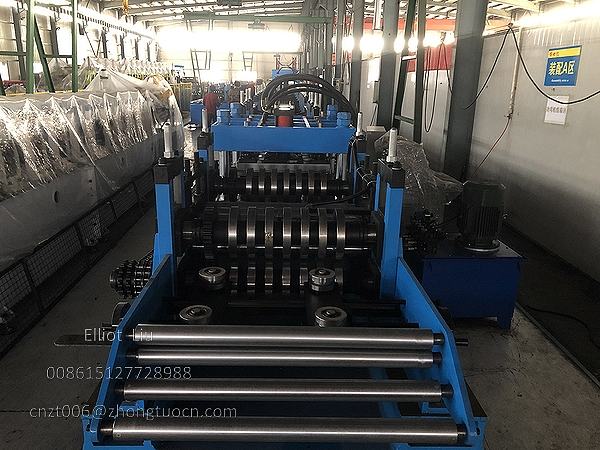

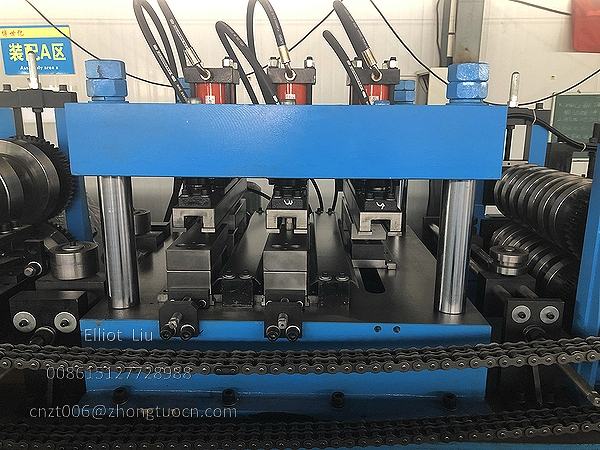

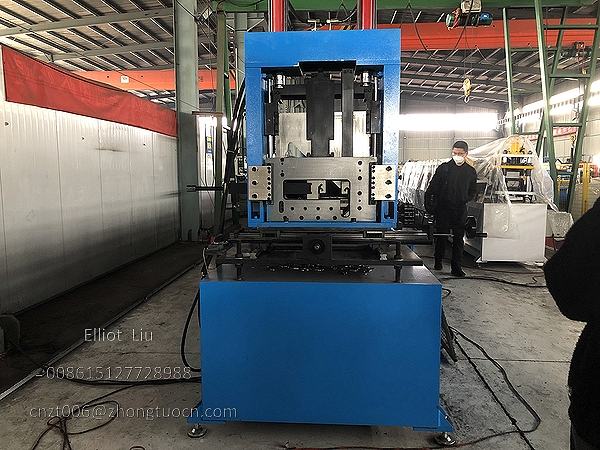

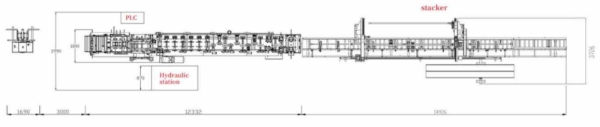

Before startup, check power, emergency stop, and hydraulic oil. The touch screen prompts each check. During production, set channel type, length, quantity, and punch positions. Press start. The decoiler feeds automatically. The strip goes through leveling, punching, forming, and cutting, then stacks automatically. Shutdown follows a standard procedure. Every step has clear prompts. The manual provides illustrations.

Changeover also uses the touch screen. Traditional machines need die changes, roller adjustments, and test runs. That costs time and material. Small batch orders become unprofitable. Our machine changes that. Enter new dimensions. The system drives adjustment motors to move all rollers to correct positions. Switching between C and Z requires no die or roller changes.

Changeover takes just minutes. After changeover, the system runs a no load confirmation before production starts. This means you can take more small batch orders without worrying about changeover eating your profit.

Value for Customers

Easy operation is only part of the story. This machine saves you money in many other ways.

• You don't need two machines for different channel types. One machine produces both C and Z.

• A regular worker can operate it after half a day of training. No need to hire expensive technicians.

• Works with both galvanized coil and low carbon steel. You won't get locked into a single material supplier.

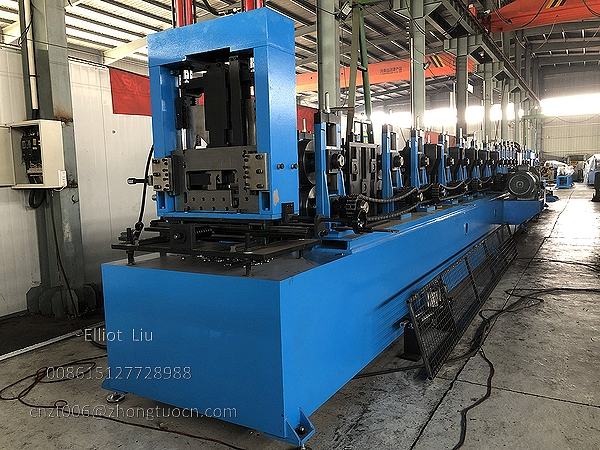

• The whole line runs automatically. One person is enough, so labor cost drops directly.

• Changeover requires no die change and takes just minutes. Small batch orders become profitable.

• Length tolerance holds at plus or minus 1.0 mm per 3000 mm. No secondary cutting needed at the job site









Structural Logic

Now that you understand the machine's value, let's look at why C and Z channels have different shapes. Don't think operators must understand mechanics to run the machine well. C and Z channels each have their own structural logic. Understanding this helps you see why certain parameters are set the way they are.

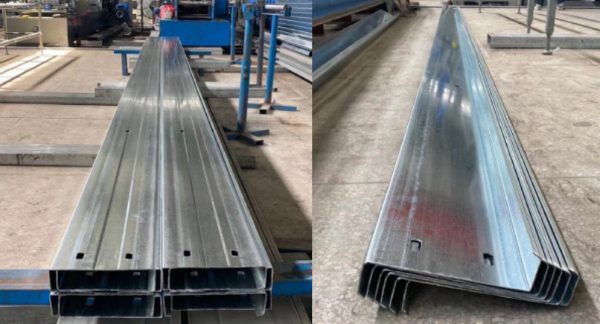

C channel has a C shaped cross section with both flanges on the same side. This shape has distinct moment of inertia characteristics and performs well under single direction loads. For wall purlins, C channel openings face inward or outward, giving stable bending resistance.

Z channel has a Z shaped cross section with flanges facing opposite directions. This design allows lap splicing at support points to create a continuous beam effect. Lapped joints give stronger load capacity, suitable for large spans and heavy roof loads. For long span roofs, Z channels lap over each other with webs aligned, creating stronger overall load capacity.

Why do these two shapes become standard products in steel structures. The core reason is that cold roll forming produces both shapes efficiently. And both shapes offer good enough mechanical properties for secondary structural applications. Operators don't need to understand mechanical calculations. But understanding this basic logic means you won't feel like you are adjusting numbers randomly during changeover. You set parameters purposefully to meet different load requirements.

Technical Parameters

The table below lists the core technical specifications.

Other Models

Beyond the cz purlin light steel keel roll forming machine, we also offer the following dedicated equipment.

• T Bar Roll Forming Machine

• Heavy Duty Stud and Track Roll Forming Machine

• Drywall Channel Packing Machine

•  C-T Track Drywall Forming Machine

• Custom profile cold roll forming machine

Call to Action

Whether you worry about workers not learning the operation or changeover taking too long and hurting capacity, we can provide operation training and configuration advice for your specific working conditions. Contact us for more details.
