When you are choosing a C/Z roll forming machine, do you really know where to use C channel and where to use Z channel. Pick the wrong section, and your roof may not hold up. Pick the right one, and you save a good amount of steel. We understand you don't want to buy equipment and then find out the channels don't fit your jobs. We also know you worry about the machine arriving and not suiting your actual site conditions.

The cz channel roll forming machine is built specifically for building purlin production. It makes both C and Z sections, so you can choose based on your project needs. Let us walk through the applications, selection logic, and equipment configuration to answer your questions.

Core Advantages and Features

This machine solves your production challenges after you decide on the section type. These five advantages affect your daily output directly.

• Makes both C and Z channels. One machine covers two section types, so you take more orders and keep the equipment busy.

• One button section changeover. Select the section type on the touch screen. No die change needed. Short changeover time lets you handle small batches.

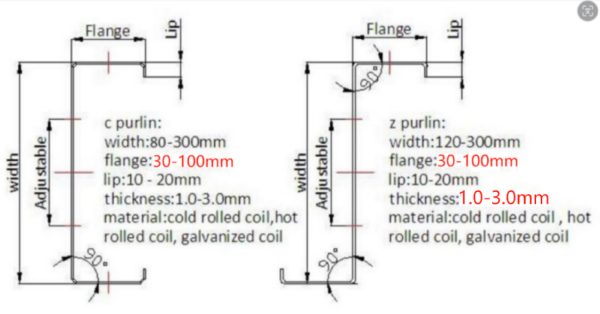

• Covers common size ranges. C channel width from 80 to 300 mm, Z channel from 120 to 300 mm. Flange and lip dimensions also cover mainstream requirements.

• Runs multiple materials. Works with galvanized coil and low carbon steel. Yield strength from Q195 to Q355. You can take orders in different materials.

• One person operation. PLC control with touch screen means a regular worker can run it after half a day of training. Labor cost stays manageable.



Technical Parameters

The table below lists the main specifications.

Workflow

Decoiler - feeding - leveling - punching - forming - cutting - receiving table

This is the standard production sequence. The decoiler unrolls the coil. Leveling removes stress. The strip goes to the punching station for hole making. Then it enters the main forming machine. Rollers bend the strip into C or Z section gradually. After forming, the hydraulic system cuts to length. The receiving table stacks finished products automatically.

Speed sensors and the PLC coordinate all stations. The strip stays under constant tension throughout, with no piling or stretching. Each module can be adjusted or reconfigured based on your needs.

CZ Channel Roll Forming Machine Equipment Definition

Cold roll forming equipment bends steel strip into C or Z sections at room temperature. C channel has a C shaped cross section. Z channel has a Z shaped cross section. Both are secondary structural members in steel buildings, used to support roof and wall cladding materials.

This machine's core strength is producing both sections on one line. You don't need separate lines for C and Z channels. One machine makes both types, so you get faster return on investment. Let us look at where each section works best.

What is the purpose of the C and Z purlin?

This is probably your main question. C and Z channels are both purlins, but their uses differ.

C channel works well for wall supports and floor structures. It also serves as roof purlin, especially on low slope or moderate slope roofs. The C shape handles vertical loads effectively. You often see C channel in factory wall purlins, warehouse floor beams, and light steel framing columns and beams.

Z channel works better for long span roofs. The Z shape allows lap splicing at support points to create a continuous beam effect. Lapped joints give stronger load capacity, suitable for large spans and heavy roof loads. Large factories, logistics warehouses, and commercial buildings often use Z channel for their roof systems.

In short, walls and floors typically use C channel. Long span roofs typically use Z channel. But you can swap them based on design requirements and site conditions. Now you see why a machine that makes both sections is so practical.

How to Choose Between C and Z Channels

This is the core selection logic. Here is a simple framework.

① Roof Slope and Drainage Requirements

Roof slope is the primary filter.

Low slope (≤ 1/10): Both C and Z can be used, but pay attention to waterproofing details.

Medium to high slope (> 1/10): C channel is preferred because its strong axis is clearly defined, offering better torsional resistance on inclined roofs and more effectively resisting the slope component of loads.

Flat or arched roofs: Z channel allows lapping to form continuous multispan structures, delivering excellent continuous load bearing performance even at shallow slopes.

② Span Length and Load Bearing Capacity (Key Economic Factor)

Span directly affects steel consumption. Based on structural mechanics:

Short spans: Both sections perform similarly; choose based on wall or roof system uniformity.

Medium to long spans: Z channel is preferred. Lapping at supports transfers bending moments effectively, creating a continuous beam effect that significantly reduces midspan moments.

Long spans: Z channel is strongly recommended. According to cold‑formed steel design principles (e.g., AISI S100 or Eurocode 3 Part 1‑3), Z sections exhibit smaller torsional deformation under wind uplift and other complex loads. At the same section height, lapped Z purlins have notably higher load capacity than simply supported C purlins, making them ideal for large span industrial buildings and warehouses.

③ Structural Position and Loading Characteristics (Wall vs. Roof vs. Floor)

Wall cladding systems / floor beams: Wall purlins mainly resist horizontal wind loads or vertical live loads and are typically simply supported. C channel is recommended because its flat web facilitates fixing wall and floor decking.

Roof systems (large warehouses, factories): Roofs must carry dead loads, snow loads, and wind uplift. Z channel is preferred for these applications. Using two‑span or three‑span continuous lapping design, the enhanced stiffness at laps effectively reduces deflection, especially suitable for long span industrial and logistics buildings.

Application Scenarios

This machine produces channels for many building types.

• Roof purlins and wall purlins for industrial factories

• Rack supports and roof structures for logistics warehouses

• Framework systems for agricultural greenhouses

• Support structures for solar panel mounting

• Wall studs for light steel frame villas

• Roof and wall secondary structures for commercial buildings

These scenarios cover light to medium steel structure projects. The channel sizes cover most commonly used dimensions.

Frequently Asked Questions

Q: Can one machine make both C and Z channels?

A: Yes. One button changeover means no die change needed.

Q: Which is stronger, C or Z channel?

A: Z channel typically carries more load because lapping creates a continuous beam effect. But actual strength depends on section size, material thickness, and span design.

Q: What materials can the machine process?

A: Both galvanized coil and low carbon steel. Yield strength covers Q195 to Q355.

Q: What is the length tolerance?

A: Plus or minus 1.0 mm per 3000 mm length. This accuracy meets most building installation requirements.

Q: How many operators does the machine need?

A: One person. Set parameters on the touch screen and press start. A regular worker can learn it in half a day.

Other Models Available

Beyond the CZ channel machine, we also offer a full range of dedicated roll forming equipment for other common open section profiles. Each model is designed for specific structural applications. You can check the detailed specifications and configuration options for each model on our website.

C Purlin Roll Forming Machine
Dedicated to C purlin production for wall supports, floor beams, and light steel framing systems.

Z Purlin Roll Forming Machine
Specialized in Z purlin production for long span roof lapping applications.

U Channel Roll Forming Machine
Produces U shaped or channel sections for non load bearing partition systems and suspended ceiling runners.

L Angle Roll Forming Machine
Produces L shaped sections for ceiling grid connections to walls and columns, and for trim applications.

W Section Roll Forming Machine
Produces W shaped sections for specific load bearing roof and structural applications.

V Section Roll Forming Machine
Produces V shaped sections for special architectural shapes and structural connections.

Omega Section Roll Forming Machine
Produces Omega (Ω) shaped sections for high strength and special load bearing structural requirements.

Custom Profile Cold Roll Forming Machine
Custom produces non standard profiles such as K shape, T shape, and other special sections based on customer drawings. Suitable for tunnels, subway projects, hydroelectric stations, and other special engineering applications.

About Us and Call to Action

Buying roll forming equipment is a long term investment. Beyond the machine price, consider whether it covers your channel needs, how stable it runs, and whether maintenance costs stay reasonable.

We can recommend the best configuration for your specific project needs. If you mainly produce wall purlins, we can focus on C channel forming accuracy. If you mainly do long span roofs, we can strengthen Z channel lapping performance.

Whatever concerns you had when you first searched that question, we can tailor a solution for your specific working conditions. Contact us for a detailed quotation and technical documentation.
