When purchasingdoor framing machines, many manufacturers focus solely on the number of forming stations and motor power, overlooking the profound impact that uncoiling, transmission, frame structure, roller material, and length measurement methods have on the final product's quality. These unseen design differences are the very foundation of the machine's long term, stable operation. This article examines five key systems and analyzes how they ensure the efficient performance of the door frame forming line.
Passive Uncoiling System
The Challenge. Active uncoiling relies on a motor drive; the inertial tension generated during start stop cycles can easily cause 1.0mm thin sheets to develop wavy distortions and visible scratches on the galvanized coating.
Our Solution. The uncoiler utilizes a passive traction method, relying entirely on the main machine roll forming system to pull the steel coil.
Customer Value. The machine fundamentally guarantees the integrity of the sheet surface, and the coating remains undamaged. This eliminates the need for additional grinding or repair before the subsequent powder coating process, thereby reducing production costs.

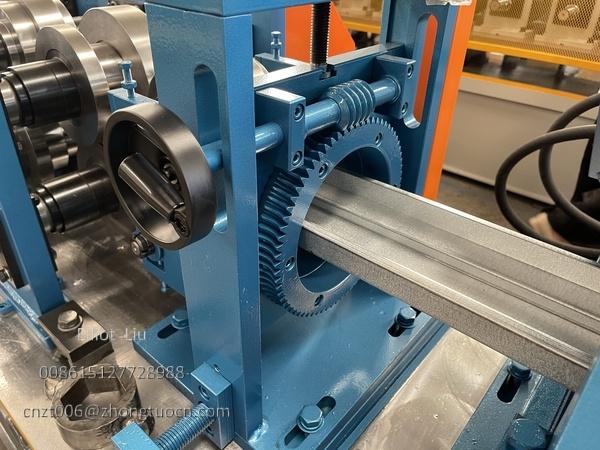

Gear Transmission System
The Challenge.Chain drives suffer from elastic elongation and cumulative pitch errors; a deviation in linear speed at any of the 17 forming stations can cause the finished product to twist, making straightening extremely difficult.
Our Solution. Gearboxes with rigid meshing drive all stations synchronously.The linear speed of the rollers at every station is strictly uniform, allowing the entire forming line to operate as if it were a single rigid shaft.
Customer Value.The system distributes forming stress evenly along the length of the profile, ensuring excellent straightness. The door frame fits tightly against the door opening during installation, eliminating the need for on site hammering or manual adjustments.
Arch Style Frame Structure
The Challenge.Thin walled frames generate high frequency resonance during high speed roll forming, causing fluctuations in cross sectional dimensions; within a single batch, the height deviation of the door frame legs can reach several millimeters.
Our Solution.Features a closed frame "archway" structure with 25mm thick frame plates and a total machine weight of approximately 4.5 tons, ensuring sufficient rigidity and damping to absorb vibration energy.
Value to Customers. Ensures stable dimensional consistency during high speed operation and high product interchangeability; eliminates the need for manual matching of door frames and leaves at the construction site.
GCr12 Hardened Rollers
Pain Point.Standard mold steel rollers often lack sufficient hardness, leading to adhesive wear after continuous production of tens of tons, which leaves gray marks and scratches on the galvanized sheet surface.
Our Solution. Uses GCr12 bearing steel rollers with hardness and wear resistance comparable to SKD11, ensuring the contact surface with the sheet metal remains smooth and pristine.
Value to Customers. Preserves the original luster of the GI (galvanized iron) sheet and ensures an excellent finished appearance; significantly increases end user acceptance rates and drastically reduces disputes regarding returns or exchanges.
Encoder Closed Loop Feedback
Pain Point. Standard length measuring wheels are prone to slippage and wear, causing cumulative cutting errors; deviations for a 3 meter cut can exceed ±5mm, necessitating secondary trimming on site.
Our Solution. An encoder captures real time motion pulse signals, and the PLC triggers the cutting command the instant the set length is reached, maximizing the precision of the closed loop control system.
Value to Customers. Maintains a stable length tolerance of within ±1.0mm for 3 meter finished products, allowing for direct on site installation and saving several minutes of manual measuring and cutting time per frame.
Specifications
| 1.Formed Material | GI or low carbon or CR | Thickness:1.0-1.5mm |
|---|---|---|
| 2.Decoiler | Loading capacity | 3T |
| Uncoiling width | 300mm | |
| Inner diameter | 450-550mm | |
| 3.Main body | Roller station | 17 rollers (As your requirement) |
| Diameter of shaft | φ 60mm | |
| Material of rollers | GCr12 (Same as SKD11) | |
| Drive | By gear transmission | |
| Dimension(L*W*H) | 7500х1200х1400mm(customize) | |
| Weight | About4.5T | |

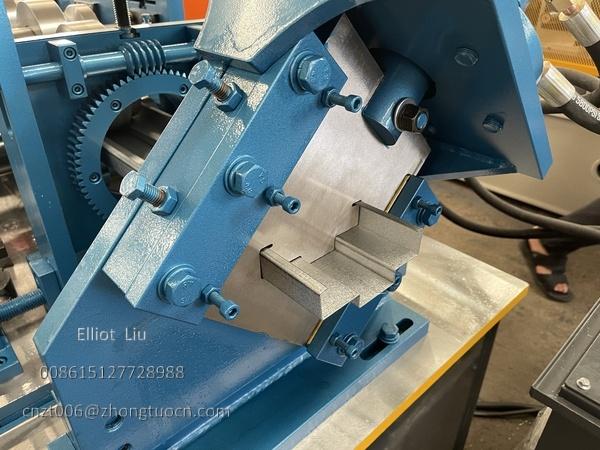

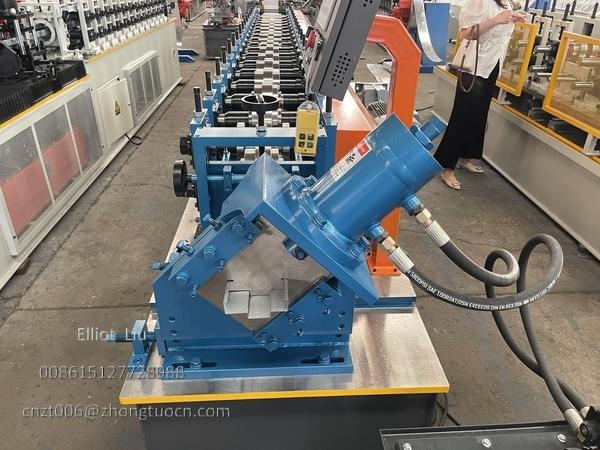

| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
| 5.Power | Motor Power | 7.5KW x 2Sets |
| Hydraulic system power | 5.5KW | |
| 6.Voltage | 415V 50Hz 3Phase | As your requirement |

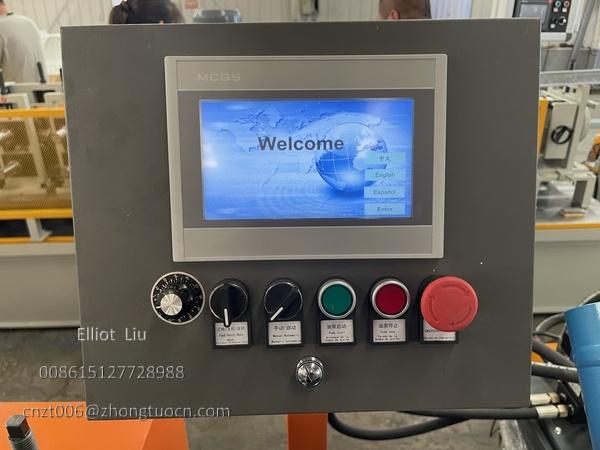

| 7.Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| 18.Forming Speed | 0-20m/min(customized) | Speed is different as per the hole's size. |
Application Areas
Residential Buildings: Frames for entry doors, interior room doors, and balcony sliding doors.
Commercial Spaces: Office partition doors and shop roller shutter frames.
Industrial Facilities: Fire rated doors for emergency exits and equipment maintenance access frames.
Public Facilities: High traffic areas such as schools, hospitals, and subway stations.
The machine produces frames from three material types including GI galvanized sheet, low carbon steel, and cold rolled sheet, meeting diverse material requirements for standard construction and fire rated applications.
Additional Profile Designs
Beyond standard door frame cross sections, this machine can produce a wide variety of profile shapes through custom roll design. Please contact us if you require other profile designs; we can provide customized solutions.
Five Integrated Systems Delivering Comprehensive Benefits
Variations in door frame forming quality rarely stem from a single factor; rather, they result from the combined performance of multiple system designs. Passive uncoiling protects the material surface, gear transmission ensures straightness, a heavy duty frame stabilizes cross sectional dimensions, hardened rollers maintain surface finish, and encoders guarantee precise cutting lengths.
The synergy of these five design features translates into tangible operational gains: higher material utilization, lower rework rates, and fewer customer complaints. The machine maintains a low overall scrap rate even under full load conditions, while long term maintenance costs are significantly reduced thanks to the extended service life of its components.
