Steel door frame production depends on steel sourcing. When the price or supply of one steel type changes, factories need to switch between grades. A door frame making machine with material compatibility directly affects sourcing flexibility and production continuity. The machine can process GI, low carbon steel, and CR steel, which gives door frame factories a base for handling material changes, but material compatibility has a clear range, and actual switching still requires confirmation of process conditions.

Applications of Door Frame Profiles

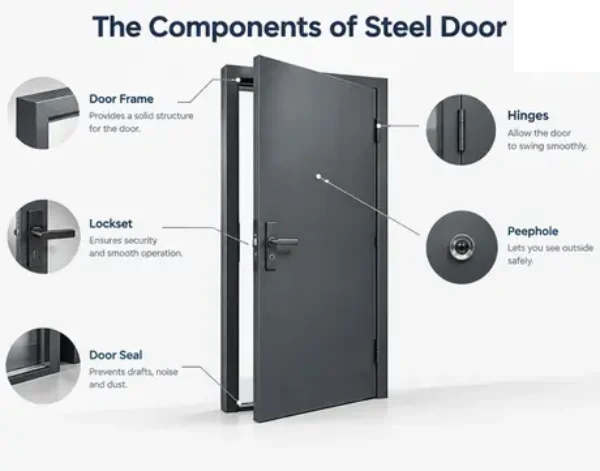

Door frame profiles form the frame structure in building openings. Residential, commercial, and industrial door frames have different requirements for profile cross section and length, so material, cross section, and length specifications need confirmation before production.

A door frame making machine forms the strip into the required cross section and cuts it to length according to order requirements. Each order must stay within the applicable material and thickness range, and the finished profile must match the required cross section and length.

Material Compatibility and Sourcing Flexibility

The door frame making machine processes GI, low carbon steel, and CR steel, with a thickness range of 1.0 to 1.5 mm.

Each material has its own characteristics. GI has a zinc coating, while low carbon steel and CR steel also serve door frame production. When one material becomes expensive or hard to supply, buyers can consider other options within the listed material range.

Material compatibility does not mean any steel grade can be processed. A door frame making machine works within the applicable material and thickness range, and actual material selection needs confirmation against order requirements and forming results. Different materials vary in yield strength and forming behavior, so material changes may require adjustment of process parameters. Whether a roller change, machine stop, parameter adjustment, or trial run is needed depends on the specific material and order, and these points require confirmation before production.

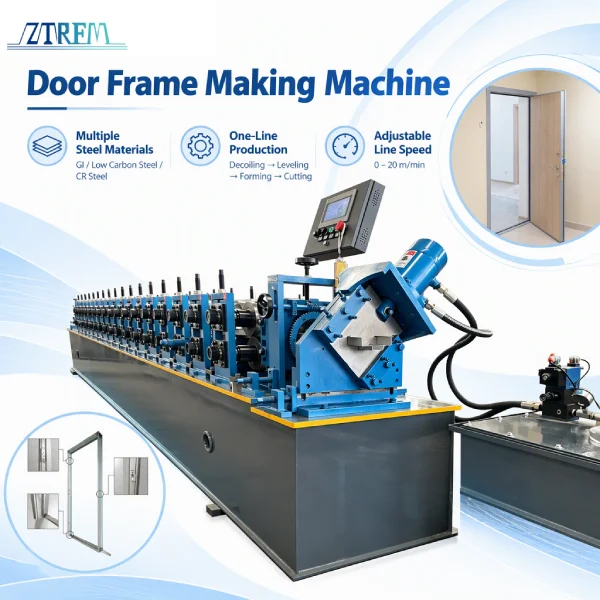

Machine Advantages for Flexible Material Production

This door frame making machine offers several practical benefits for material flexibility and line operation.

• Buyers can run GI, low carbon steel, and CR steel on the same equipment within the stated thickness range, which reduces dependence on a single steel grade when supply or price changes.

• Decoiling, leveling, forming, and cutting connect on one line, so the strip moves from coil to finished profile with less manual handling and waiting between steps.

• The two 7.5 kW main motors and gear transmission are the listed drive setup for the forming stations. This configuration is part of the machine's continuous line operation, while actual service life depends on maintenance and operating conditions.

• The 0 to 20 m/min speed range lets the operator set the line speed to match the order rhythm. A speed change is not the same as a profile change, and any roller or setup change for a different cross section requires separate confirmation.

Technical Parameters

The table below lists the current equipment configuration, covering forming passes, core component materials, and production setup.

What Material Changes Mean for Production Planning

Before a material change on a door frame making machine, confirm that the target grade is within the applicable range and check forming parameters and finished profile condition. Different grades vary in yield strength and forming behavior, so a trial run is usually needed before full production.

Whether roller changes, machine stops, or parameter adjustments are required depends on the specific material and order. The production plan should reserve time for these checks. Coil weight affects how long one coil lasts, but continuous running also depends on coil changes, preparation, and parameter confirmation.

Why Door Frame Making Machine Suits Flexible Sourcing

A steel door frame roll forming machine bends the flat strip into the target cross section through multiple passes.

For buyers comparing steel door frame machines, the practical question is whether the listed material range and line configuration match the order mix.

The application boundary of a door frame making machine depends on order specifications, material range, coil weight, and site conditions. Material selection must stay within the applicable material and thickness range. Customization requests for speed, profile type, voltage, color, and line layout require confirmation with professional sales staff; these items are not confirmed as standard options.
