An automatic c z two in one purlin machine can produce both C and Z purlins. This sounds like two production lines merged into one. How does it do that? Will it sacrifice production accuracy or speed? Before deciding to buy, these questions are worth clarifying.

When a machine needs to cover both C and Z sections and adapt to different width ranges from 80mm to 300mm, an automatic c z two in one purlin machine achieves specification flexibility through its design. This discussion covers the machine's actual capabilities, production flow, and line configuration.

Applications and Order Requirements

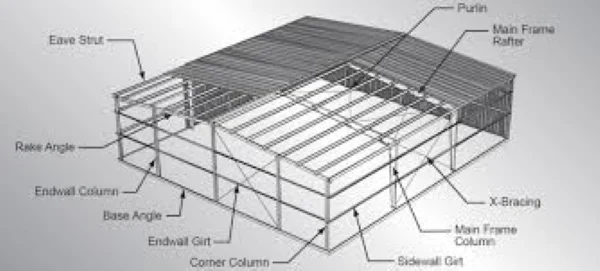

C/Z purlins are used in logistics warehouses, car showrooms, steel structure workshops, agricultural facilities, and other scenarios. These projects all use C/Z purlins, but different projects have different specification requirements for purlins. If a manufacturer can only produce a few fixed specifications, its order range will be limited. Whether a c z purlin forming machine can cover these changes directly affects the factory's flexibility in handling multi specification orders.

Different projects also bring changes in material thickness requirements. An automatic c z two in one purlin machine covers a thickness range of 1.0 to 3.0mm, which can cover a certain range of purlin product needs. But the final product use depends on section size, material properties, design loads, and engineering requirements. Thickness is only one factor.

Why Multi Specification Orders Create Production Challenges

Why do different projects create different C/Z purlin specification requirements? An automatic c z two in one purlin machine helps address the practical production issues that follow.

Sources of specification differences

• Different spans: long span projects often use wider Z purlins, short span projects may use narrower C purlins.

• Different loads: heavy load areas may require thicker material, light load areas can use thin sheet.

• Different designs: different design institutes have different requirements for section sizes and hole patterns.

• Different installation conditions: site lifting capacity and connection methods also affect length requirements.

For manufacturers, these differences mean order specifications change frequently. A machine that can only produce a single specification will be greatly limited when taking orders. An automatic c z two in one purlin machine helps address this challenge.

Technical Parameters

The parameter table for the automatic c z two in one purlin machine provides the actual specification range it covers, helping customers judge whether this equipment can meet their order needs.

How Two In One Design Supports C and Z Production

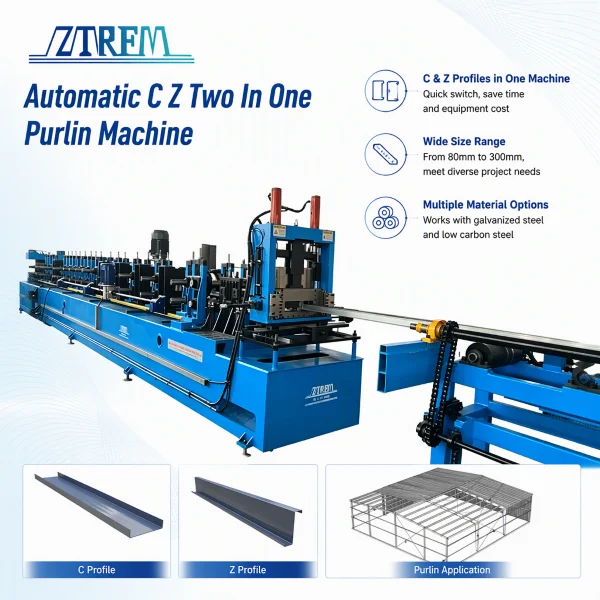

This automatic c z two in one purlin machine can produce both C and Z sections.

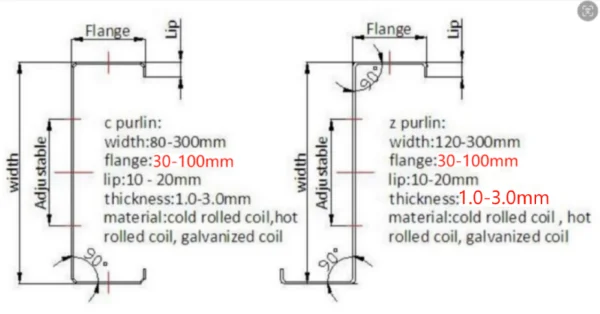

C purlin width 80 to 300mm, Z purlin width 120 to 300mm. Flange height 30 to 100mm, lip length 10 to 20mm. These sizes are all within the adjustable range. When a factory receives orders with different widths, the equipment can cover these specifications.

This c/z purlin roll forming machine covers thickness from 1.0 to 3.0mm. Different projects have different load requirements for purlins, so different material thicknesses may be required. The equipment covering this thickness range means the factory can take on more types of orders.

From Coil to Finished Product in One Line

The complete production flow from coil to finished product.

• Decoiling: the coil unrolls and enters the leveling unit

• Feeding: the strip moves into the leveling station

• Leveling: removes coil stress to prepare for forming

• Punching: completes hole processing according to drawings

• Forming: multiple roller stands bend the strip into C or Z sections

• Cutting: hydraulic system cuts to length

• Receiving: finished product output

This cz purlin making machine links multiple processing steps together. The strip goes from decoiling to finished product in one pass.

After the finished product exits the line, it goes to stacking or downstream handling. An automatic c z two in one purlin machine can be integrated with downstream equipment based on the actual solution.

Machine Advantages for Multi Specification Production

The practical value of this automatic c z two in one purlin machine for order adaptability.

• One machine covers both C and Z sections, reducing equipment changes caused by product type changes.

• The specification coverage from 80mm to 300mm supports a defined production range for different orders.

• Material thickness 1.0 to 3.0mm covers a certain range of purlin product needs.

• Both galvanized coil and low carbon steel coil can be processed, without being limited to a single material supplier.

The combined effect of these advantages is that when factories face multi specification orders, the specification coverage and adjustment method directly affect the manufacturer's flexibility in handling multi specification orders.

Conclusion

Is it really feasible for one machine to produce both C and Z purlins?

Logistics warehouses need C purlins, car showrooms need Z purlins. Different projects have different requirements for purlin specifications. These needs are not occasional but a reality that factories face continuously in daily operations. The value of an automatic c z two in one purlin machine is not that it can produce C or Z purlins, but that it can switch between different specifications, reducing concerns for factories when taking orders.

For an automatic c z two in one purlin machine, the defined specification range from C purlin width 80 to 300mm and Z purlin width 120 to 300mm gives factories a clear production scope. When the equipment can cover these specifications, the factory's order adaptability will be significantly different.
