Inconsistent purlin lengths create extra work on site. Workers cut, shim or re-drill members before they can be bolted into place. An automatic C/Z purlin roll forming machine removes that problem: the complete line runs from coil to stacked finished product in one pass and holds length tolerance at 3000mm ±1.0mm. This guide explains what that tolerance means in practice, how length is measured and cut, how C and Z profiles are changed over, and how to compare machine configurations before you request a quote.

Key Takeaways

• One line produces both C and Z purlins from galvanized or low carbon steel coil
• Length tolerance is held at 3000mm ±1.0mm under standard configuration
• Material thickness range 1.0 to 3.0 mm, yield strength Q195 / Q235 / Q345 / Q355
• Automatic encoder measurement, Siemens PLC control and hydraulic cutting
• Inline punching before forming removes a second handling and transport step
• Factory direct supply from Zhongtuo with commissioning support and a 2-year warranty

Applications and Installation Scenarios

C/Z purlins are used in many building projects. The following project types often pay close attention to purlin length consistency:

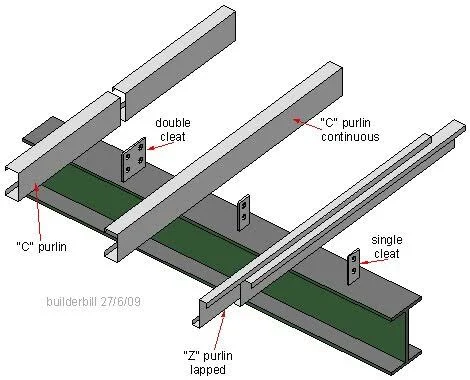

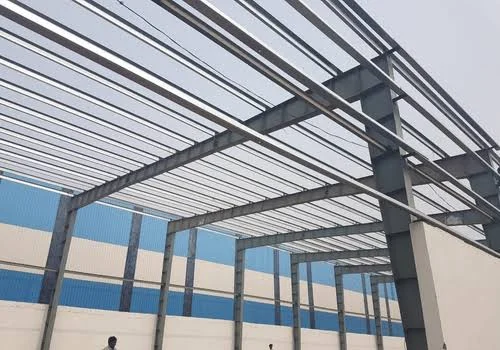

• Steel structure workshops: roof purlins and wall purlins installed in batches
• Logistics warehouses: rack supports and roof systems
• Solar mounting: support structures for solar panels
• Agricultural greenhouses: frame systems assembled in batches
• Rack supports: storage systems that need consistent member lengths

These projects share a common need: large purlin quantities and a fast installation pace. A color steel sheet c z purlin machine can process galvanized and low carbon steel coil into C or Z sections. Length control at the production stage helps reduce on site adjustment work.

An automatic C/Z purlin roll forming machine supports these applications with consistent length control.

From Coil to Finished Product in One Line

The automatic C/Z purlin roll forming machine links multiple processing steps together. The steel strip goes from decoiling to finished stacking in one pass.

Production flow

• Decoiling: the coil unrolls and enters the leveling unit
• Feeding: the strip moves into the leveling station

• Leveling: removes coil stress to prepare for forming
• Punching: completes hole patterns according to drawings

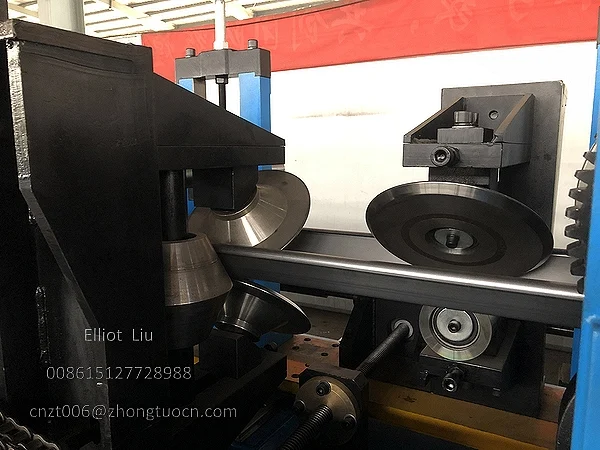

• Forming: multiple roller stands bend the strip into C or Z sections

• Cutting: hydraulic system cuts to length

• Stacking: automatic stacker arranges finished products neatly

This flow reduces intermediate transport. If punching is outsourced, the factory must transport the strip out and wait for it to come back. That adds transport, waiting and a second setup. A complete line finishes these steps in one pass. The strip does not leave the line.

After the production flow, you may want to see the machine parameters. The following table summarizes the main parameters of this c z channel purlin roll forming machine.

Detailed Technical Parameters and Configuration Comparison

The table below lists the standard specification of the automatic C/Z purlin roll forming machine side by side with the points that are confirmed or customized at order stage. Values marked as customizable are engineering confirmation items, not fixed options.

This automatic C/Z purlin roll forming machine meets the specifications listed above under standard configuration.

Machine Advantages for Length-Controlled Production

The automatic C/Z purlin roll forming machine includes several features that support length controlled production.

• Complete inline production from decoiling to stacking
• Automatic encoder length measurement
• PLC based control
• Hydraulic cutting
• Inline punching before forming
• Fast profile changeover between C and Z sections

These features work together in the production flow. The encoder provides length signals. The PLC uses these signals for control. The hydraulic system performs the cut when the set length is reached. Inline punching completes hole processing before forming.

These features on the automatic C/Z purlin roll forming machine support length controlled production.

Why Length Consistency Matters for Installation

Inconsistent purlin lengths can create site adjustment work. Purlins that are too long may need cutting on site. Purlins that are too short may require adjustment at connection points. These fixes take time and can affect the installation schedule.

A z and c purlin machine with stable length control helps reduce site adjustment needs. Whether adjustment is needed still depends on project dimensions, connection methods, engineering tolerances and site conditions. Different projects have different sensitivity to length.

An automatic C/Z purlin roll forming machine gives the site a predictable length baseline. Workers know the length variation range of the batch. They can plan the installation sequence and connection plans in advance.

What 3000mm ±1.0mm Means in Practice

The parameter table lists length tolerance for the automatic C/Z purlin roll forming machine as 3000mm ±1.0mm. This means at a cut length of 3000mm, the actual cut length deviation stays within ±1.0mm.

This tolerance does not apply to every length. If you need other cut lengths, the tolerance range needs to be confirmed based on equipment configuration and production conditions. The 3000mm ±1.0mm figure is the length tolerance under standard configuration.

For building purlins, a length deviation of ±1.0mm may fall within installation allowance. However, actual installation adaptability depends on connection detail design and project tolerance requirements.

How Length Measurement and Cutting Work

The automatic C/Z purlin roll forming machine uses an automatic encoder for length measurement. The encoder provides length signals to the control system. When the set length is reached, the control system triggers the hydraulic cutting.

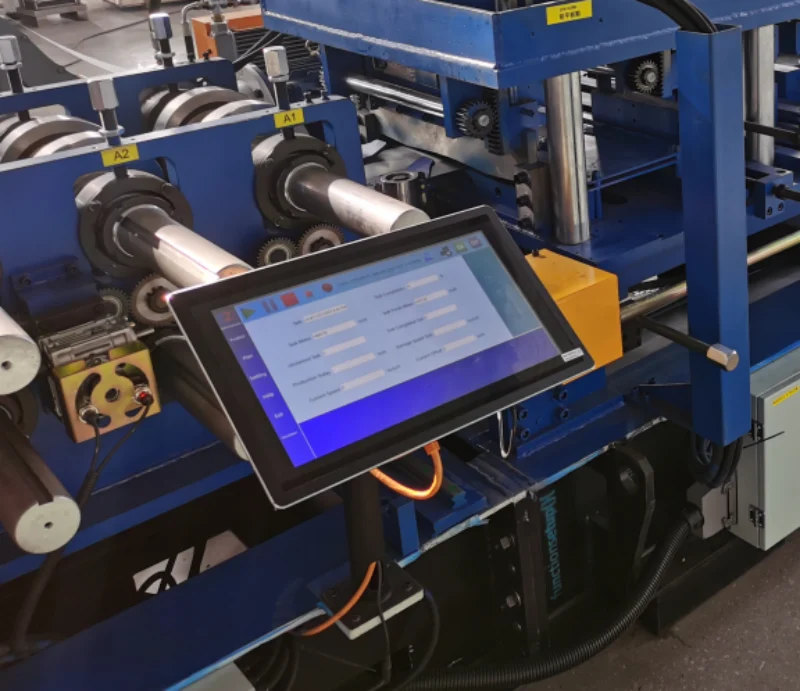

The machine uses a PLC based control system. The encoder and PLC work together to manage cut to length production. The hydraulic cutting system performs the cut. After cutting, the system prepares for the next length.

This measurement and cutting coordination gives each purlin the same measurement reference. As long as the encoder and control system work normally, length consistency is supported.

Why Buy the Automatic C/Z Purlin Line Direct from Zhongtuo

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. manufactures the line in its own factory rather than reselling imported equipment. That means the roller sets, Siemens PLC panel, hydraulic station and stacker are matched as one system, and the profile drawing you supply is engineered into the roller arrangement before shipment.

• Factory direct supply: no trading margin between the workshop and your project
• Siemens PLC control: stable cut to length logic, recipe storage for repeated batches

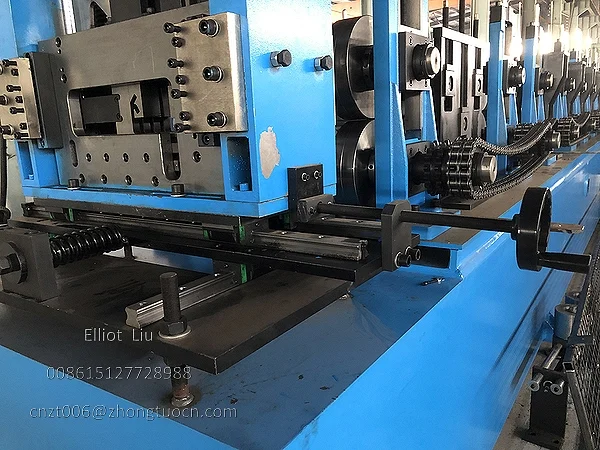

• Fast profile changeover: switch between C and Z sections without rebuilding the line
• ±1.0mm length tolerance at 3000mm under standard configuration
• 2-year warranty with commissioning guidance and after-sales support

Send your profile drawing, coil specification and required cut lengths, and Zhongtuo will return the matched configuration and a factory direct quote.

Frequently Asked Questions

What length tolerance can the automatic C/Z purlin roll forming machine hold?

Under standard configuration the line holds 3000mm ±1.0mm at a 3000mm cut length. For other cut lengths, the achievable tolerance band is confirmed against the equipment configuration and the production conditions of your project.

Can one machine produce both C and Z purlins?

Yes. The roller arrangement forms both C and Z sections, so a single line covers roof and wall purlin work. Profile changeover is quick, which keeps small and mixed batches economical.

What material and thickness does the line run?

The machine processes galvanized and low carbon steel coil with yield strength Q195, Q235, Q345 or Q355, in a thickness range of 1.0 to 3.0 mm, with C purlin widths of 80 to 300 mm and Z purlin widths of 120 to 300 mm.

How is purlin length measured and controlled?

An automatic encoder measures strip travel and sends length signals to the PLC. When the set length is reached, the PLC triggers hydraulic cutting, so every purlin in the batch shares the same measurement reference.

Is punching done inline or offline?

Punching is inline and positioned before forming, so hole patterns are completed in the same pass. This removes the transport, waiting and second setup that offline punching requires.

What control system and warranty are included?

The line is supplied with a Siemens PLC control system and operator interface, factory commissioning support, and a 2-year warranty. Final warranty terms are confirmed in the supply contract.

Summary

Back to the question at the beginning: inconsistent purlin lengths cause trouble on site. The automatic C/Z purlin roll forming machine uses automatic encoder measurement, PLC control and hydraulic cutting to keep length tolerance at 3000mm ±1.0mm. The complete line goes from coil to finished product in one pass. For projects that install purlins in batches, stable length control means less site adjustment and a smoother installation pace.
