When operators face a C/Z changeover, they often spend time on manual adjustments, roller repositioning, and test runs. A full changeover can take a significant amount of time. Changeover itself adds no output, yet it eats directly into productive time. When buying a c z purlin forming machine, you should not only check whether it can produce both section types, but also how it handles the switch between them.

Different orders require different C and Z purlin sizes. A wall purlin order might need C sections, while a roof purlin order might need Z sections. A single machine must handle both profiles, and the changeover method directly affects daily efficiency and production continuity.

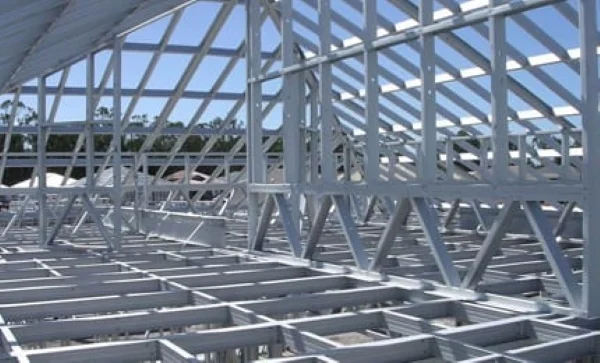

Applications and Industry Scenarios

C and Z purlins play different structural roles in steel buildings.

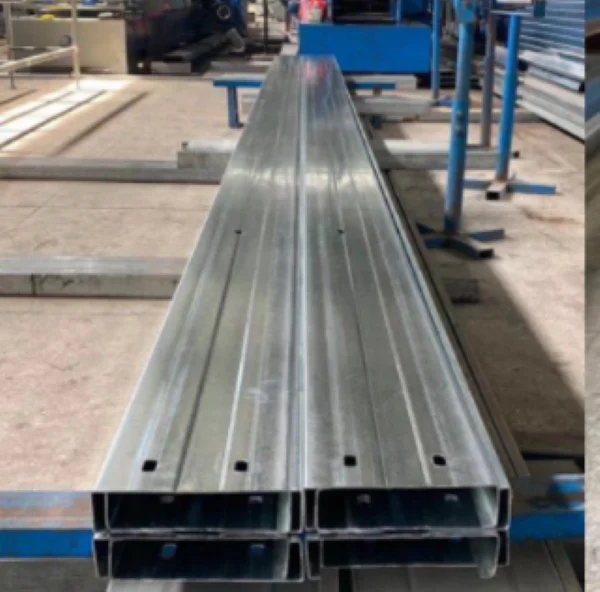

Typical C purlin applications:

• Wall girts and wall beams in steel buildings

• Small to medium span roof systems

• Floor beams and secondary structures

• Roof support under simple support conditions

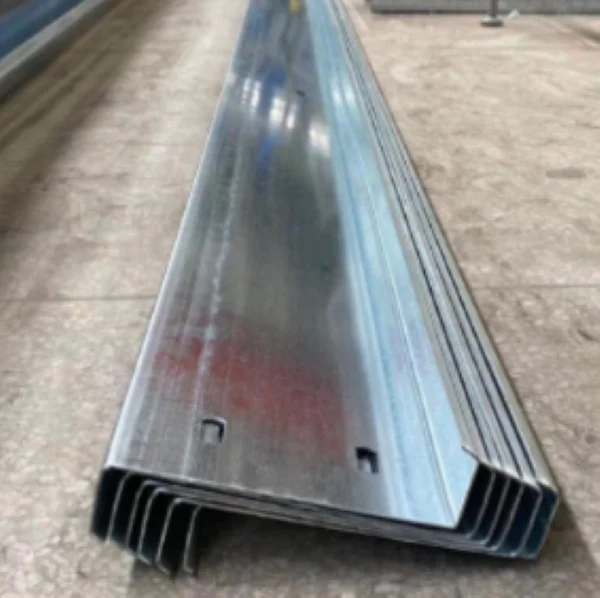

Typical Z purlin applications:

• Long span roof systems, commonly used in industrial buildings

• Continuous lapping roofs where Z purlins can lap at supports to form continuous members

• Roof structures requiring longitudinal continuity

Projects that need both purlin types:

• Large industrial buildings (C for walls + Z for roofs)

• Logistics and warehousing projects

• Light steel villa complexes

The variety of application scenarios determines how often a factory needs to change over. A factory might run C purlins for wall applications today, and switch to Z purlins for roof applications tomorrow. The more diverse the order mix, the greater the impact of changeover efficiency on overall capacity.

Advantages of the C Z Purlin Forming Machine

• Less manual work: hydraulic adjustment reduces physical effort and skill requirements

• Shorter changeover time: changeover takes less time than traditional methods, increasing productive running time

• Lower die costs: no need for multiple die sets for different sizes; one system covers common ranges

• Better production continuity: changeover without die changes means less downtime and recalibration

• Less operator dependence: PLC control with touch screen lets regular workers get started quickly

Why C/Z Changeover Happens in Production

C/Z changeover is not an occasional event. It happens regularly with every order switch.

Different projects require different purlin sizes. A logistics warehouse may need Z purlins for long span roofs, while a factory building may need C purlins for wall girts. Order structures are naturally diverse, so changeover is unavoidable.

The higher the changeover frequency, the greater the impact on output. If each changeover takes a long time, frequent switches will directly reduce daily production.

What Traditional Changeover Actually Involves

Traditional changeover is more complex than many realize.

Operators must manually adjust roller spacing, loosen locking bolts, move rollers to new positions, and retighten. Some machines require complete or partial die replacement, which involves lifting and recalibration.

After adjustments, test pieces must be run to verify dimensions. If the size is off, the whole cycle repeats: loosen, move, lock, test. The process consumes time and physical labor, and demands significant operator experience.

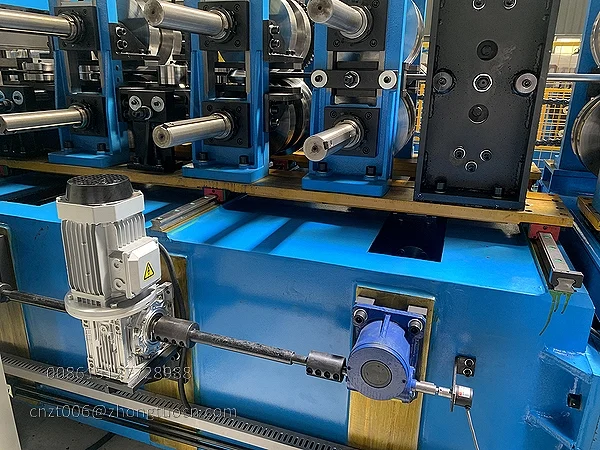

Adjustable Design and Hydraulic Changeover

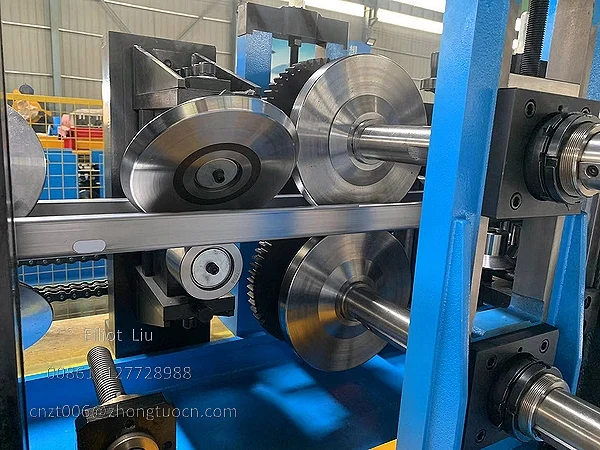

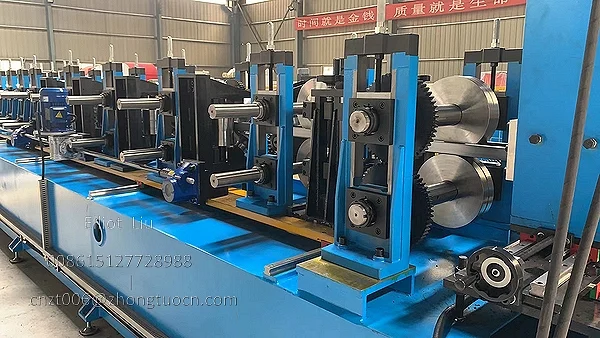

Adjustable design lets the machine adapt to different sizes by moving roller positions, not by changing roller sets.

Hydraulic power provides the adjustment force, reducing manual positioning. A centralized control interface reduces the operator's technical judgment burden. The adjustment covers C purlin widths from 80 to 300 mm and Z purlin widths from 120 to 300 mm.

This adjustable c z purlin forming machine helps shops handle frequent size changes with minimal downtime. The hydraulic system automatically positions rollers to the required dimensions, eliminating the need for manual measuring and repositioning.

For manufacturers looking to automate size transitions, this equipment serves as a roll forming machine for automatic cz purlin adjustment, cutting manual intervention between orders.

Technical Parameters

No Die Change and Production Continuity

Die changes take time and also require die storage space. A no die change design means:

• Minimal or no recalibration after changeover

• No need for multiple die sets for standard sizes

• Smoother order switching and better production continuity

• Small batch orders become more economical without excessive changeover time

What Production Scenarios Benefit Most

This changeover approach suits the following production scenarios:

• Factories with many sizes and varied batch quantities

• Manufacturers that produce both C and Z purlin orders

• Lines that need fast response to customer delivery requirements

• Shops with operators of varying skill levels

When purchasing a c z purlin forming machine, the changeover method directly affects daily efficiency and continuity.

Understanding the changeover process and evaluating its cost is an essential part of making a sound purchasing decision. For shops running frequent C/Z switches, this adjustable equipment reduces manual work and helps maintain steady production flow. A cz purlin making machine with hydraulic adjustment provides a practical way to handle mixed orders. And a c/z purlin roll forming machine that eliminates die changes keeps production running between order switches.
