Projects like logistics warehouses, car showrooms, steel structure workshops, and agricultural facilities all create demand for C and Z purlins. Different projects need different specifications. A cz changeable purlin roll forming machine needs to cover these changes. If a factory can only make a few fixed sizes, its order range is limited. This directly affects how flexibly a factory can handle multi specification orders.

Applications and Order Requirements

Logistics warehouses, car showrooms, steel structure workshops, and agricultural facilities all create C and Z purlin demand. Different projects bring different specification needs. Ac z purlin cold roll forming machine needs to cover these changes. That directly affects how flexibly a factory can handle multi specification orders.

Different projects also bring changes in material thickness. The equipment covers a thickness range of 1.0 to 3.0mm. This covers a certain range of purlin product needs. But the final product use depends on section size, material properties, design loads, and engineering requirements. Thickness is only one factor.

CZ Changeable Purlin Roll Forming Machine Technical Parameters

The parameter table shows the actual size range covered by this cz changeable purlin roll forming machine.

The C purlin width of 80 to 300mm and Z purlin width of 120 to 300mm in the table define the size range of this machine. Material yield strength from Q195 to Q355 covers projects from ordinary buildings to higher strength requirements.

Machine Advantages for Multi Specification Production

This cz changeable purlin roll forming machine offers several advantages for factories handling different orders.

• One machine produces both C and Z sections.

• Size coverage from 80mm to 300mm gives the factory a defined production range.

• Material thickness from 1.0 to 3.0mm covers a range of purlin product needs.

• Both galvanized coil and low carbon steel coil can be processed.

These advantages work together. They let a factory handle multi specification orders with fewer equipment changes. The size range and adjustment method directly affect how flexibly a factory can handle different orders.

How the Changeable C and Z Production Works

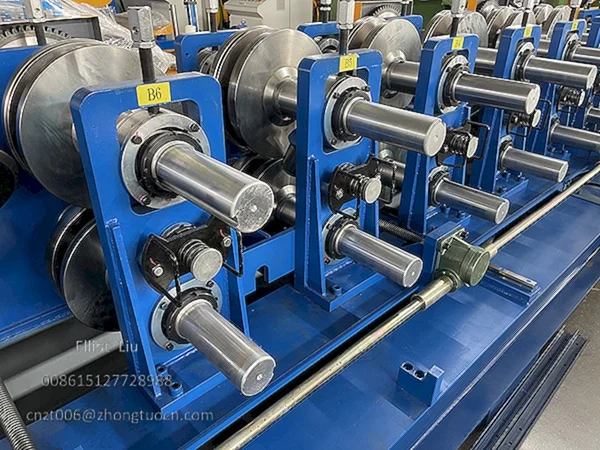

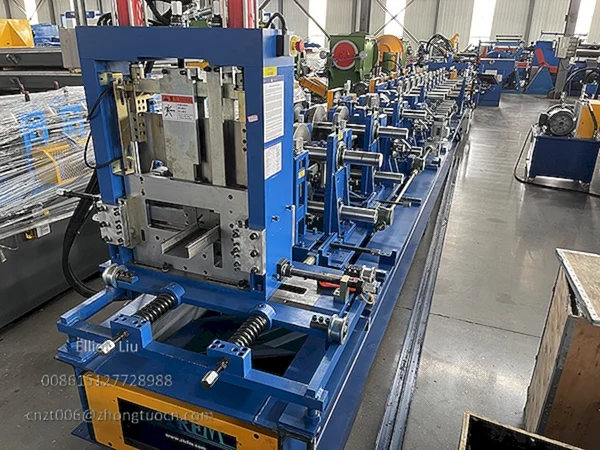

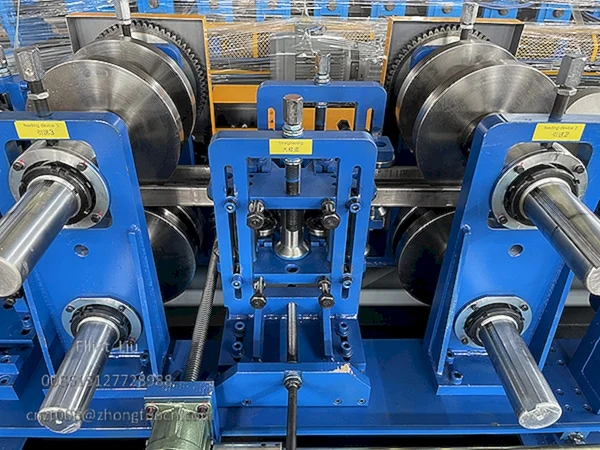

The cz changeable purlin roll forming machine uses an adjustable design to support different sections. This lets the same machine produce both C and Z purlin sections.

For C purlin width, the machine covers 80 to 300mm. For Z purlin width, it covers 120 to 300mm. Flange height ranges from 30 to 100mm. Lip length ranges from 10 to 20mm. These sizes all fall within the adjustable range.

When a factory gets orders with different widths, the machine supports different sizes through adjustment. This supports multi specification production on one line.

Thickness Range and Application Differences

The hydraulic cz purlin rolling machine processes material thickness from 1.0 to 3.0mm. Different thicknesses may correspond to different product needs.

Thicker material usually relates to higher structural design requirements. Thinner material usually relates to lighter design needs. But the final use of a purlin depends on section size, material strength, span, load, and design code. Thickness alone does not determine the load bearing capacity or the final application.

If your project has specific structural requirements, please confirm with your design team whether the purlin meets the project specifications.

Matching the Machine to Your Purlin Orders

When you evaluate a cz changeable purlin roll forming machine for your factory, check whether your typical C and Z purlin sizes fall within the confirmed range. The C purlin width covers 80 to 300mm. The Z purlin width covers 120 to 300mm. Material thickness covers 1.0 to 3.0mm.

If your orders often include different sizes, the adjustable design supports changeover between specifications. If your orders are mostly one fixed size, a dedicated machine may also be an option.

The value of this machine with adjustable design is that it can switch between different specifications. That gives factories more flexibility when taking on varied orders.

C purlin width from 80 to 300mm. Z purlin width from 120 to 300mm. Thickness from 1.0 to 3.0mm. These confirmed numbers define the order range a factory can take. When the equipment covers these sizes, a cz changeable purlin roll forming machine gives the factory a clear production range for different C and Z purlin orders.
