Electrical contractors, plumbing installers, and solar mounting crews all use the same type of channel every day. It's called slotted unistrut, and you'll find it on nearly every mechanical and electrical job site. Many contractors buy it ready made, but they don't always realize they could be making it themselves with a channel forming machine and saving money.

Buying slotted unistrut in small quantities is fine. But when your project uses large volumes, the costs add up fast. Supplier delivery dates slip, and your schedule takes the hit. Need a non standard size? That means extra charges and long wait times. These problems become painfully obvious on big, long term projects.

A channel forming machine changes the equation. Load a steel coil at one end and finished slotted unistrut comes out the other. You control the cost, the delivery schedule, and the dimensions. This isn't something only huge factories can do. The right equipment puts production in your hands.

What Is Slotted Unistrut

Slotted unistrut is a cold formed steel channel with a U shaped cross section and a continuous slot running along its web.

That slot is what makes it special.Installers can slide bolts anywhere along the channel and adjust positions on site.No drilling holes. No measuring twice. Just slide and tighten.

A channel forming machine produces this profile continuously from steel coil.

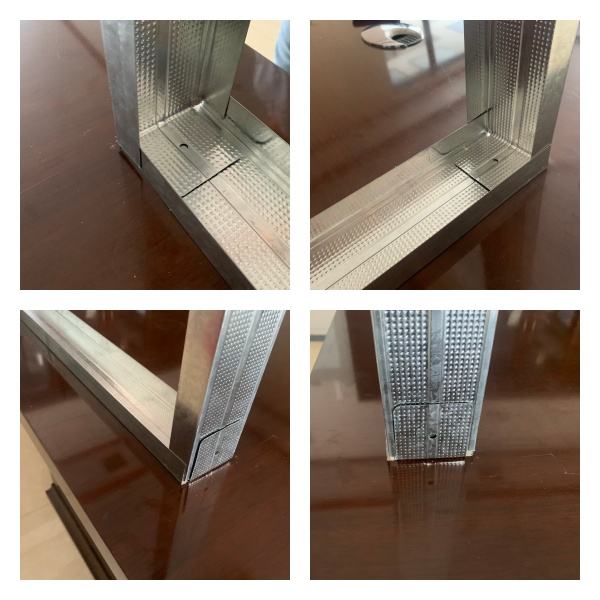

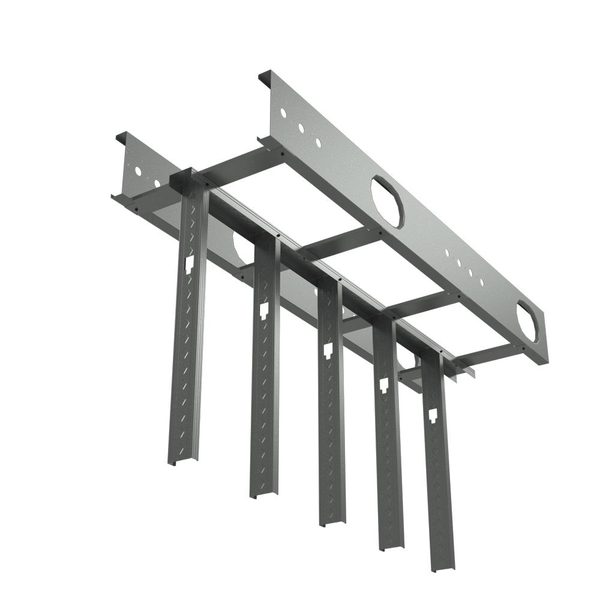

Applications for the Finished Channel

Slotted unistrut shows up in a surprising number of applications, including:

• Cable tray and power distribution supports

• Pipe, duct, and HVAC system supports

• Solar panel mounting structures

• Seismic bracing and diagonal bracing

• Suspended ceiling grids

• Warehouse shelving and storage racks

• Light gauge steel building connections

Why is it so popular? Because it makes installation simpler.Workers don't need to drill, weld, or measure complicated layouts.

Technical Specifications

Electrical supports, solar racks, and pipe hangers all require consistent dimensions and reliable quality. Here are the key specs for the equipment that produces slotted unistrut.

These specifications reflect the capabilities of a standard channel forming machine.

Production Equipment Options

You have two options for getting slotted unistrut.

You can buy it from a supplier. That's easy, but you pay a premium and wait for delivery.Or you can set up your own line with a roll forming machine.

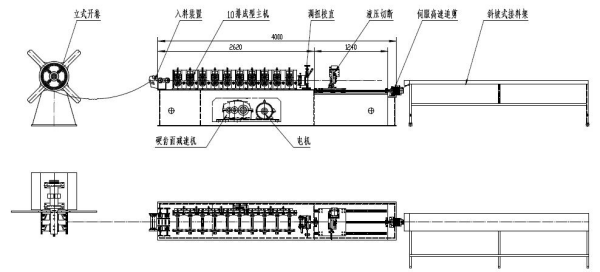

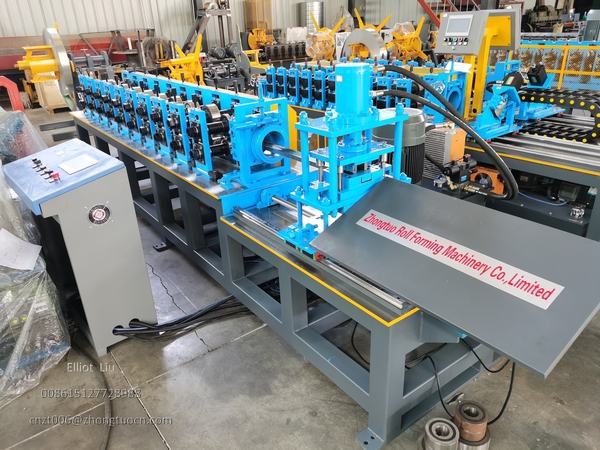

Roll forming is a continuous cold bending process. A steel coil passes through a series of roller stations, and each station gradually shapes the strip into the final profile.The real advantage? You turn external costs into equipment depreciation. You stop waiting and start controlling.A channel forming machine typically runs at speeds that support high volume production.

How to Decide If You Need One

Three questions help you decide whether in house production makes sense.

Volume. Is your monthly usage stable and reasonably high? Higher volume means lower cost per piece.

Variety. Do you only need a few standard sizes? Fewer sizes mean fewer changeovers and higher machine utilization.

Lead time. Do supplier delays affect your project schedules? If yes, in house production gives you control back.

If you answer yes to any of these, it's worth taking a serious look at a channel forming machine.

FAQ

What's the difference between slotted unistrut and standard C channel?

Slotted unistrut has a continuous slot on its web. This lets bolts slide anywhere along the channel for easy field adjustment. Standard C channel doesn't have this slot, so you either drill holes on site or order pre punched pieces with less flexibility.

What lengths can the machine produce?

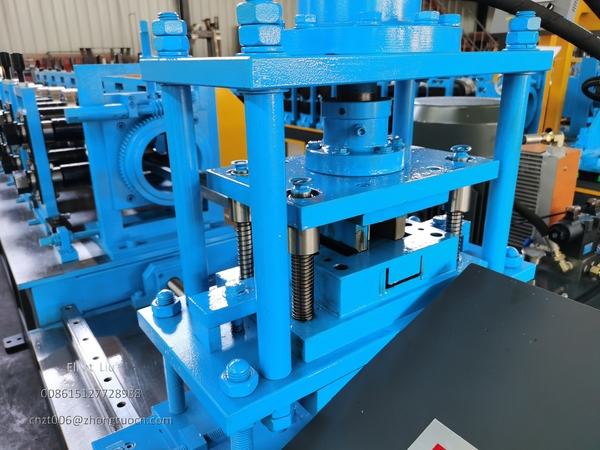

The channel forming machine cuts to length with standard options at 406mm and 610mm. For other lengths, you can add new recipes through the control computer.

How long does installation and commissioning take?

Once the machine arrives and you have power and floor space ready, installation and commissioning typically takes one to two weeks.

Are maintenance costs high?

The rollers use GCr12 bearing steel with heat treatment and surface finishing for long life. The main shafts are tempered for hardness and toughness. The blades use Cr12 quenched steel. The machine comes with maintenance tools and spare gears. Daily upkeep focuses on cleaning and lubrication, so costs stay manageable.

Can it produce other profiles?

Yes. We can customize rollers on the channel forming machine based on your drawings to produce different cross sections.

Other Equipment We Offer

Beyond the slotted unistrut channel forming machine, we manufacture a range of cold roll forming equipment for construction, warehousing, and finishing applications:

• CZ purlin roll forming machine

• Light steel keel roll forming machine

• Rack system roll forming machine

• Floor decking roll forming machine

• Ceiling system roll forming machine

• Metal embossing machine



With nearly thirty years in this industry, we provide complete solutions from single machines to full production lines. If you need information on any of these machines, or if you're looking for equipment to produce a specific profile, feel free to ask.

Slotted unistrut is just a piece of steel with a slot in it. But that slot saves hours of drilling on job sites and brings project deadlines forward by days or weeks. If you're evaluating whether to produce this profile in house, a channel forming machine could be the answer. We can offer equipment recommendations based on your volume, sizes, and site conditions.
