A common question from customers considering a Pipe Joint Anchor Rod Forming Machine is why the system uses five separate machines instead of a single integrated unit. A single machine may sound simpler and more space efficient, but it does not work for this production process. The following sections cover what this machine produces and why the five lines must remain separate.

Applications

Split Set anchor rods are key components in underground engineering and ground support. The Pipe Joint Anchor Rod Forming Machine produces Split Set anchor rods for these industries:

• Metal mine roadway roof and side support

• Coal mine roadway reinforcement

• Highway and railway tunnel primary support

• Dam slope and reservoir bank reinforcement

• Underground cavern and foundation pit support

• Slope stabilization and geological hazard control

The Pipe Joint Anchor Rod Forming Machine is built for these demanding applications. If you supply anchor rods to mines, tunnels, or slope projects, an Anchor Rod Machine that delivers stable output is essential. The sections below explain why this equipment uses five independent lines.

Why Independent Production Lines Deliver Real Value

Maintenance does not stop the whole line. When one machine needs service, the other four keep running. No full line shutdowns.

You can buy in stages. Start with part of the line, generate revenue, then add more machines as your budget allows.

Upgrades cost less. When product specifications change, you only update or replace the relevant line. No need to change the whole system.

Spare parts are simpler. Each line uses relatively standardized components. Lower spare parts inventory and shorter lead times.

Production scheduling is flexible. You can adjust shift patterns and run rates for each line based on order priorities.

Modular Line Architecture

The Pipe Joint Anchor Rod Forming Machine consists of five independent lines, each handling a single specific production step. These steps cannot be combined into one machine because their motion requirements are fundamentally different.

Five Independent Production Lines

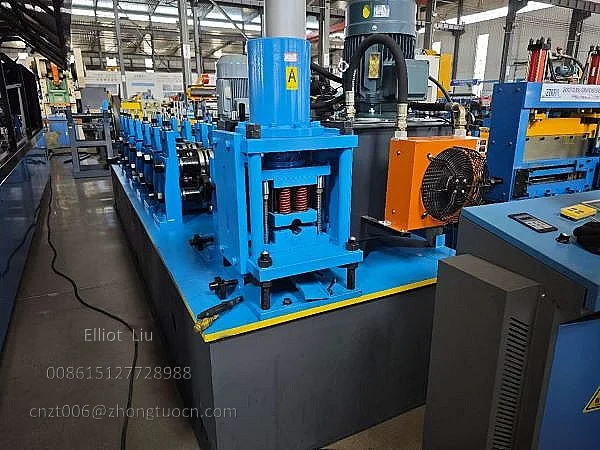

Split Set Roll Forming Machine

This line gradually cold forms steel strip through multiple roller passes into a longitudinally slotted tube. Material thickness range is 2.5 to 3.5 mm. Outer diameters are 35 mm and 46 mm. Forming speed is 0 to 15 meters per minute. It uses gearbox transmission. Rollers are Cr12 with quenching treatment.

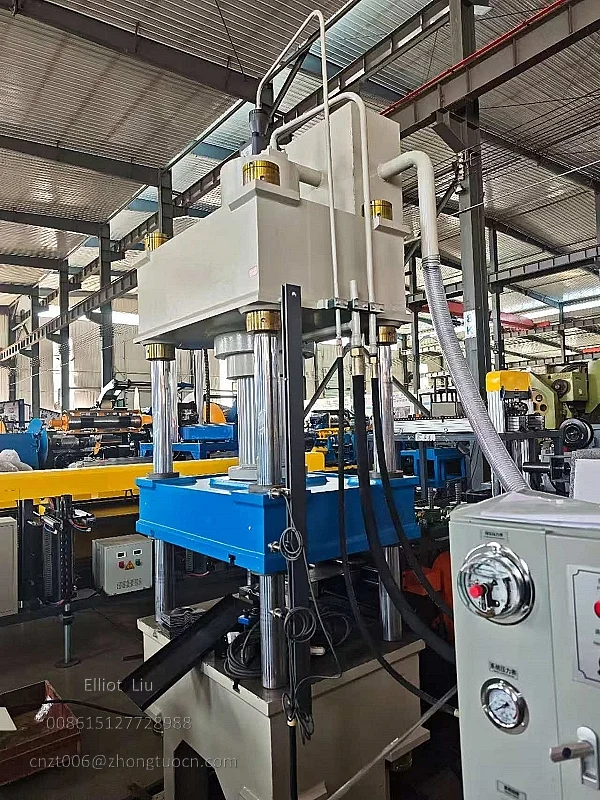

Split Set Dome Plate Press Machine

This line punches holes and presses the dome plate shape simultaneously on thick steel plate. Maximum thickness is 5.0 mm. Hydraulic power is 15 kW. Molds are Cr12MoV.

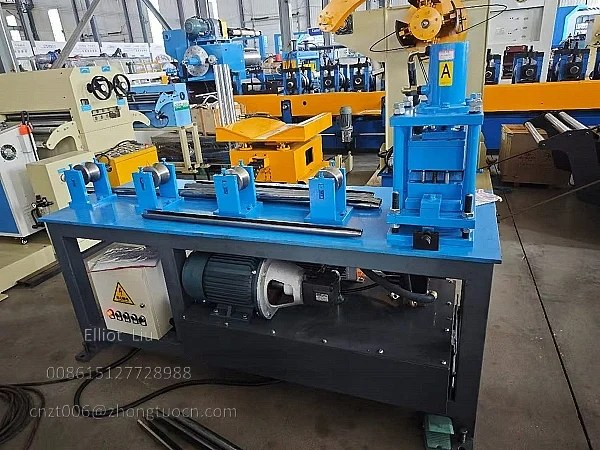

Split Set Necking Machine

This line reduces the pipe end diameter to accept the dome plate. Hydraulic motor power is 3 kW. Molds are GCr12.

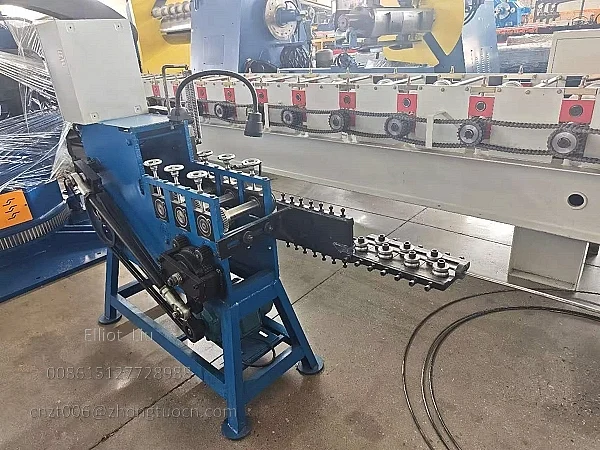

Split Set Ring Making Machine

This line bends wire into fixing rings. Wire diameter is 6 to 8 mm. Speed is 40 to 45 pieces per minute. Drive motor power is 2.2 kW. Molds are GCr12.

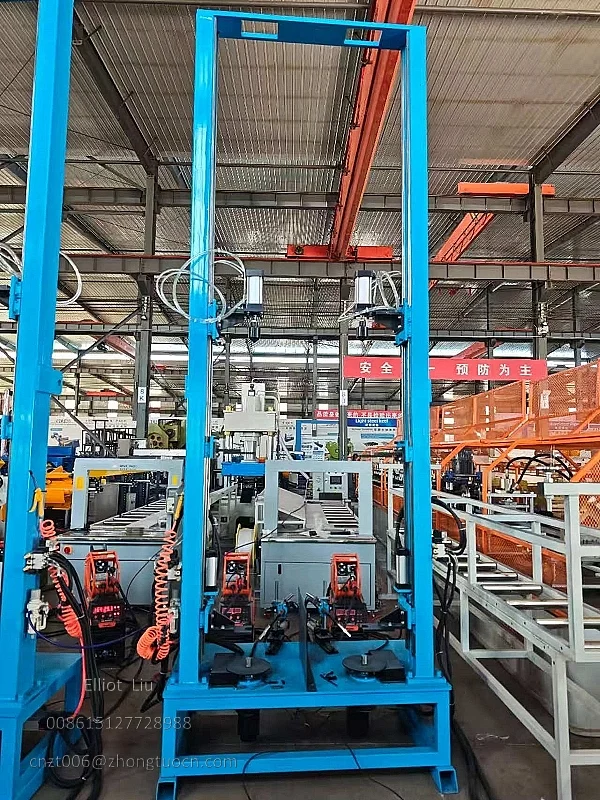

Split Set Ring Welding Machine

This line joins all components into finished rock bolts using TIG welding. Pipe diameter range is 28 to 50 mm.

Why These Steps Cannot Be Combined

These five processes have completely different motion requirements:

• Roll forming is continuous cold bending. Material moves through multiple roller stands at 0 to 15 meters per minute. It requires long travel and continuous feed.

• Dome plate stamping is intermittent blanking. Material stops in the die for punching and forming in one stroke. It requires instantaneous impact force. Cycle rate is 0 to 10 pieces per minute.

• Necking is local compression. The pipe end is squeezed in the mold. It requires precise positioning and stable clamping.

• Ring making is wire bending. Wire is cut and bent into rings. It requires high speed reciprocating motion with frequent starts and stops.

• Ring welding is assembly joining. The pipe body, dome plate, and ring are positioned and welded together. It requires part rotation synchronized with welding.

A single machine cannot handle continuous feed, impact force, local compression, high speed reciprocating motion, and synchronized rotation welding all at once. Forcing them together would create a machine too complex to maintain, with high failure rates and poor performance on every step.

This is why the Anchor Rod Cold Bending Roll Forming Machine uses five independent lines. This is not a design preference but a process requirement.

Complete Production Flow Sequence

The five lines work in this sequence to produce finished anchor rods from steel strip:

• Step 1: Roll Forming shapes the steel strip into pipe body

• Step 2: Necking reduces the pipe end diameter

• Step 3: Dome Plate Press produces end plates

• Step 4: Ring Making produces fixing rings

• Step 5: Ring Welding joins all parts into finished rock bolts

Technical Parameters

Split Set Roll Forming Machine

Split Set Dome Plate Press Machine

Split Set Necking Machine

Split Set Ring Making Machine

Split Set Ring Welding Machine

Closing – About the Equipment Manufacturer

A single large machine that bundles five processes together might look simpler. But these five processes have completely different motion requirements. They cannot fit into one frame. Five independent lines are not a design preference. They are a process necessity.

Cangzhou Zhongtuo Cold Roll Forming Machinery Co., Ltd. was established in 2014. The company focuses on designing and manufacturing cold roll forming equipment. It provides ODM, OEM, and one stop services. You can purchase everything from raw materials to machines and accessories.

Choosing equipment is not just about buying a machine. It is about choosing a production system. Five independent lines are not complexity. They are the more practical choice for actual production. For a Pipe Joint Anchor Rod Forming Machine, this modular approach is what makes the system both reliable and cost effective for long term operation.
