Hospital ceiling projects demand tight tolerances and clean installation. Operating rooms and clean wards require extra sealing and dust prevention measures. When outside suppliers deliver inaccurate ceiling grid components, the installation team must make adjustments on site. This causes delays and may damage the sealing layers.

Have you ever received a batch of wall angles that left gaps against the wall and needed replacement parts that took another week to arrive? Hospital projects run on tight schedules and cannot afford these delays. TheSuspended Ceiling T Bar Roll Forming Machineincludes three separate lines: the Main T Roll Forming Machine, the Cross T Roll Forming Machine, and the Wall Angle Roll Forming Machine. You control production timelines and quality standards.

Precision Requirements for Hospital Ceilings

Do your hospital clients often ask whether ceiling panel joints can stay within 0.3 millimeters of height difference? This is a standard requirement for medical facilities. To meet this standard, the ceiling grid itself must maintain accurate dimensions. If a wall angle is even 1 millimeter too long or too short, the panel will not fit correctly.

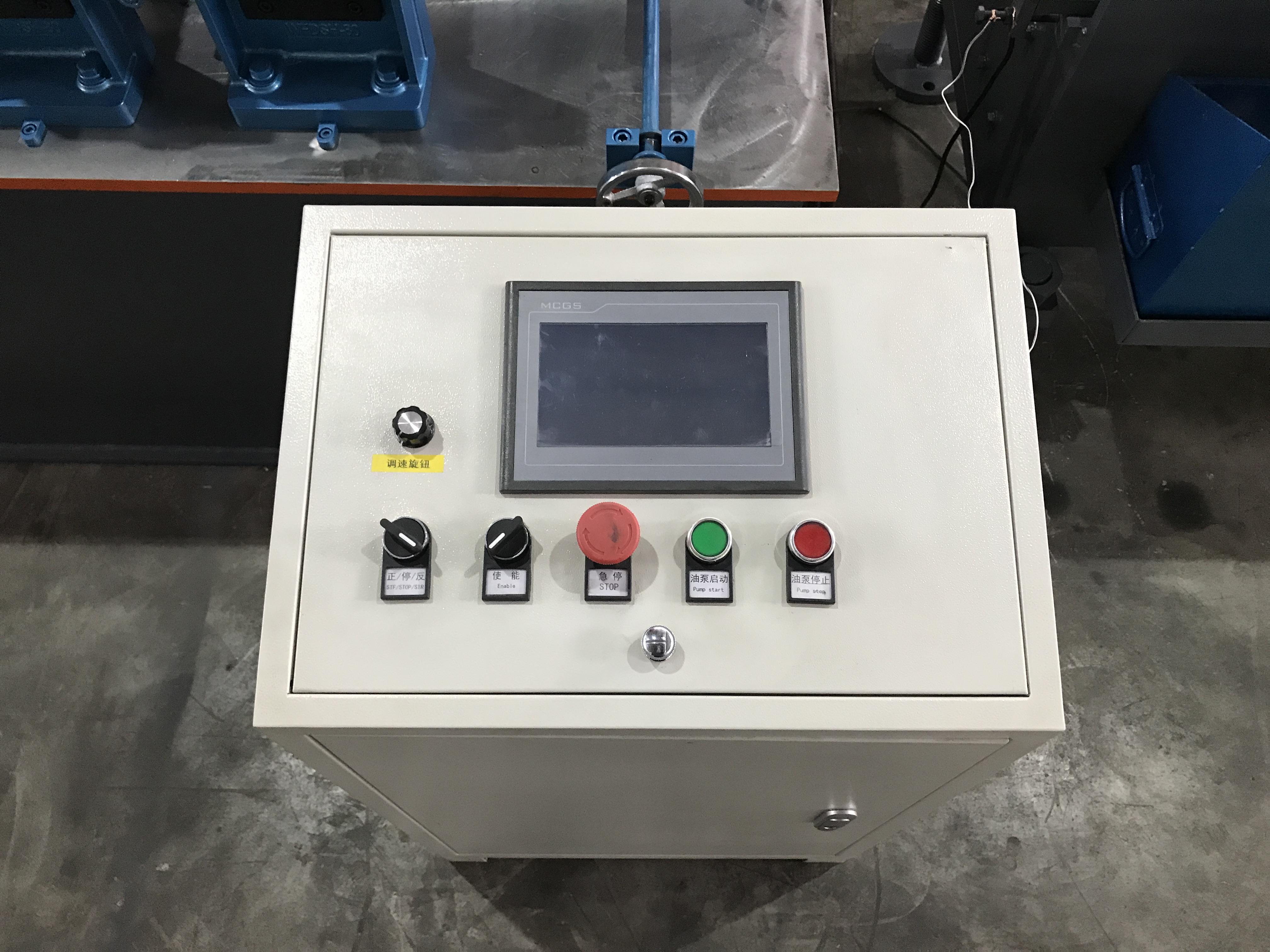

The Wall Angle Roll Forming Machine holds a length tolerance of 3 m ±1.0 mm. The Main T Roll Forming Machine and the Cross T Roll Forming Machine hold a tolerance of 3 m +1.5 mm. This precision comes from the equipment design. The Main T Roll Forming Machine uses 18 forming steps, the Cross T Roll Forming Machine uses 16 forming steps, and the Wall Angle Roll Forming Machine uses 8 roller sets. Each step controls deformation with care. You simply set the length on the touch screen, and the machine handles the rest.

Three Risks of Buying Ceiling Grids from Outside Suppliers

You may have experienced this problem before. Main tees and cross tees come from different manufacturers, and their slot depths and tab widths do not match. When the parts arrive on site, they do not lock together properly. Hospital projects often require multiple purchases over time, and different batches can show slight variations in color and size. These differences become obvious under bright lights.

Delivery schedules create even more frustration. When a supplier changes their production plan, your entire construction timeline shifts. The Suspended Ceiling T Bar Roll Forming Machine removes these problems entirely. You produce all three profiles from the same steel coil, so the color matches perfectly. You set the dimensions to your own standards without adjusting to other manufacturers. You produce exactly what you need today and ship it to the site immediately.

Technical Parameters

Production Workflow and Delivery Control

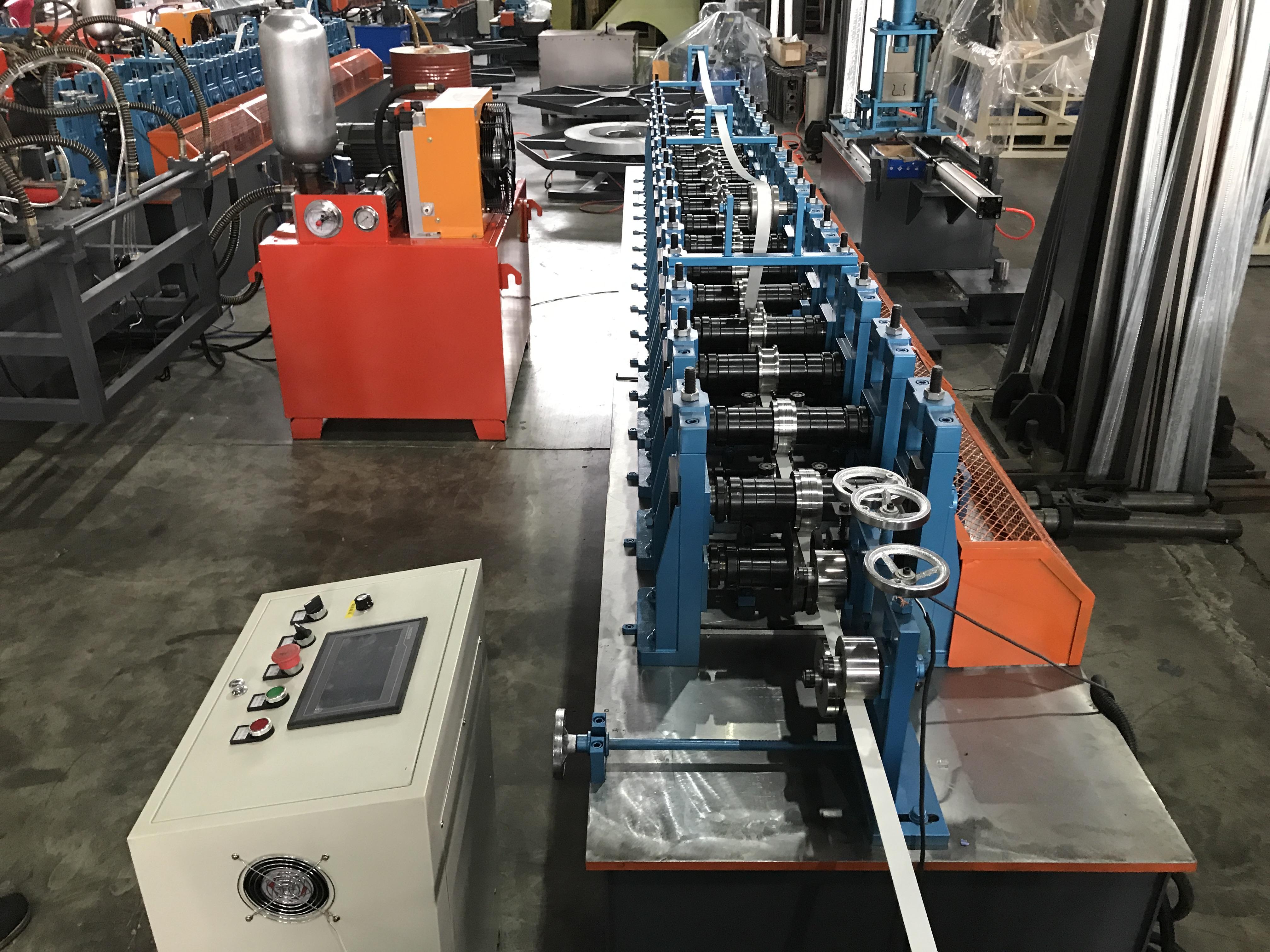

After you set the length and quantity, the decoiler starts feeding the steel strip. The Main T Roll Forming Machine and the Cross T Roll Forming Machine run at 0‑25 m/min. The Wall Angle Roll Forming Machine runs at 0‑40 m/min. This equipment can complete an entire hospital project order within a few hours. The decoiler holds up to 1.5 tons, with inner diameter range of 450‑550 mm. This matches standard coil sizes.

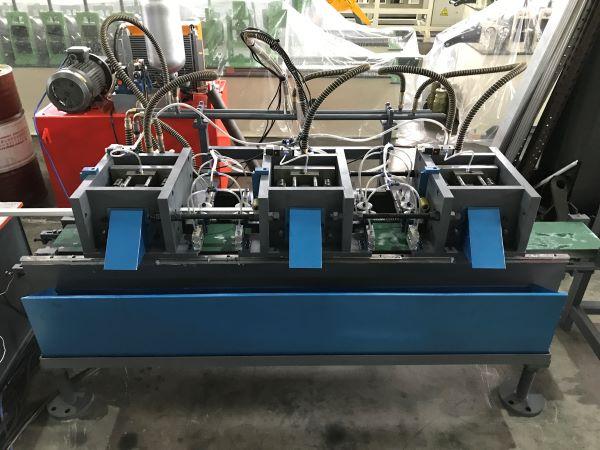

The servo tracking cutting system cuts main tees and cross tees without stopping the line. The cut ends come out clean and flat, so you do not need secondary finishing before packaging. The Wall Angle Roll Forming Machine features hydraulic cutting with a logo stamping device. You can press your brand information onto each piece. This supports material traceability requirements that many hospital projects now demand.

Application Areas

This equipment produces ceiling grid profiles for many different settings:

• Operating rooms and clean wards in hospitals
• Office buildings and commercial spaces
• School classrooms and public areas
• Shopping malls and retail spaces
• Hotel guest rooms and corridors
• Clean rooms and laboratories

Flexible Configuration Options

Have you thought about what happens if the market standard for profile sizes changes? One of our customers in Iran initially chose a 24×24 mm wall angle. After producing for a while, he discovered that the local market preferred 22×22 mm profiles. These used less steel per meter and cost less to produce. We did not ask him to buy a new machine. We simply made a new set of 22×22 mm rollers and replaced them on his existing line.

You can change rollers, adjust speeds, and modify lengths directly in your own workshop. This equipment adapts to market shifts without requiring a new capital investment.

We Are Here to Discuss Your Specific Needs

Every hospital project comes with different requirements. Some need 3 m wall angles while others need custom lengths. Some use 0.5 mm material thickness while others use 0.6 mm. This equipment can adjust to all these variations.

If you are considering producing your own ceiling grids, or if you want to know which configuration fits your workshop space, send us your production targets and material specifications. We will provide a reference plan based on your actual conditions. If it works for you, we can continue the conversation. If not, we are happy to offer advice either way.
