Have you ever had orders piling up while your machine drifts off spec? You adjust it, run another piece, measure again, and it still misses. The job gets delayed. Most of the time, it is not the operator. It is the machine lacking the rigidity to handle heavy gauge steel, or the rollers wearing down too fast. We understand that frustration. That is exactly why we built thisheavy duty automatic PLC size adjustment stud and track roll forming machinewith a focus on precision retention and long term reliability. Below we walk through the workflow, core components, and export delivery support.

Are you concerned about precision loss or frequent breakdowns over years of operation? The sections below show how each part works together to keep the machine reliable.

Applications

• Building steel structures: C purlins, Z purlins, wall studs, light gauge steel framing
• Warehousing and logistics: heavy duty racking uprights and beams
• Solar mounting systems: photovoltaic brackets and guide rails
• Electrical industry: cable trays and electrical enclosure frames
• Prefabricated buildings: light steel villa studs and partition studs

Workflow Overview

The whole production line follows this sequence:

Decoiler- feeding- leveling- punching-forming- cutting- receiving table

Let's say you have experienced scrap rate spikes because different sections of the line fall out of sync. Every station on this heavy duty automatic PLC size adjustment stud and track roll forming machine is designed for smooth material flow and consistent speed. The operator sets product dimensions on the touchscreen, and the line runs automatically from there.

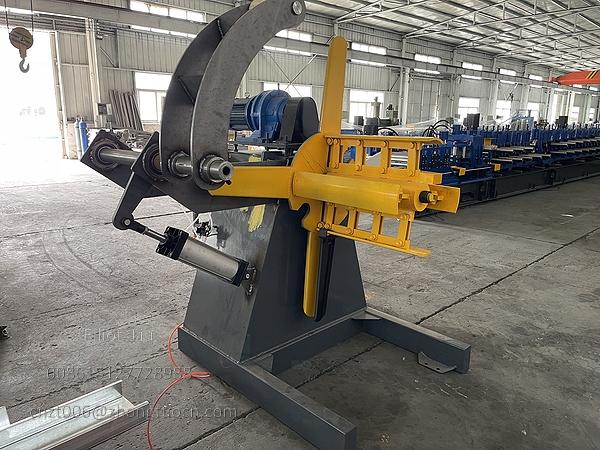

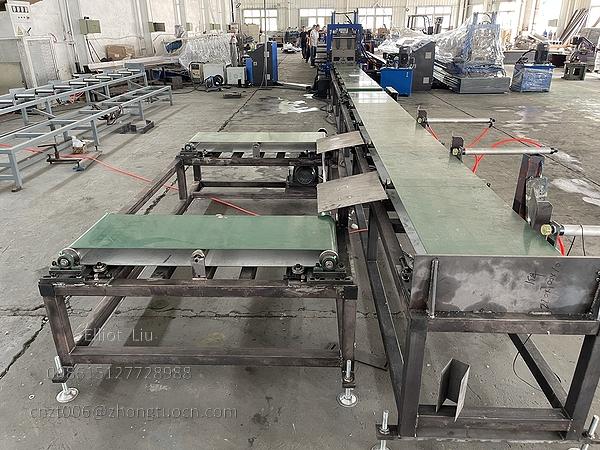

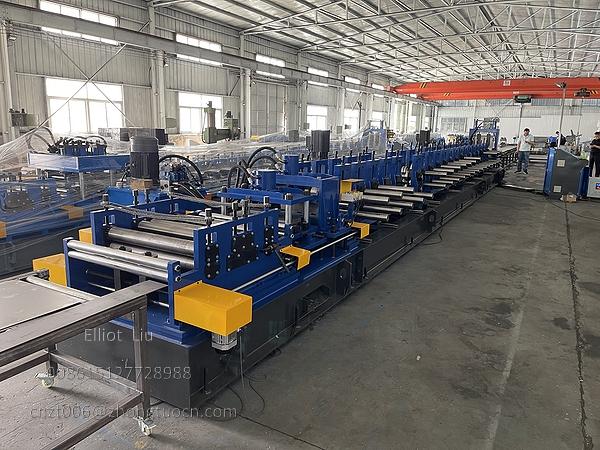

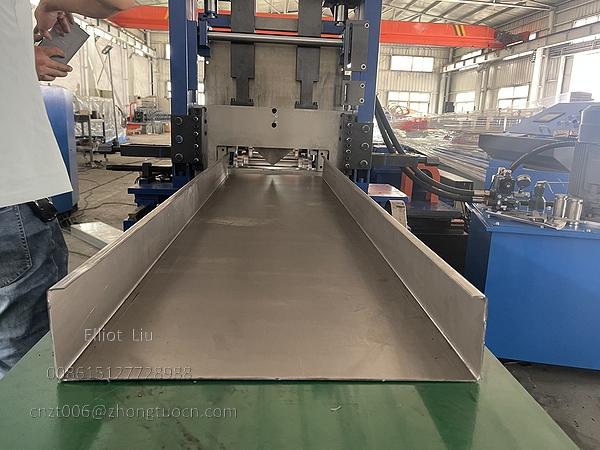

The decoiler adjusts its uncoiling speed based on the main machine speed. The leveling rollers flatten the coil. The punching system makes holes as the sheet moves through. The forming section uses 20 roller stations to gradually bend the profile to its final shape. The cutting unit shears the profile at the programmed length. The finished pieces travel down the conveyor belt and stack on the receiving table. These six stations form a continuous flow. No stops in between. No manual handling. That reduces the errors that come with too much human intervention.

Core Technical Strengths

You don't need to worry about springback when forming thick material. This machine resists springback through three factors. The cast steel frame and H beam base provide rigidity. The 20 forming stations spread the deformation gradually. The GCr15 quenched rollers hold their dimensions over time. Together these three elements form a complete springback control system.

The control system uses a Taiwan made PLC and touchscreen with a Japanese Omron encoder. The interface supports Chinese and English. You enter the length and hole spacing, and the line runs. The main machine has two emergency stop buttons for quick shutdown if something goes wrong.

Width adjustment runs on three 1.5 kW motors. You can switch product widths without a long shutdown for manual adjustments. That reduces changeover time significantly.

Technical Specifications

Durability and Reliability

Roller material directly affects how long the machine lasts. GCr15 is a high carbon chromium bearing steel. It resists wear and responds well to quenching. The combination of quenching and precision machining keeps the rollers accurate over years of use. The 45# steel shaft balances strength, toughness, and cost. It remains the classic choice for transmission shafts in roll forming equipment.

The Cr12MoV blades offer both hardness and toughness. Cut quality determines whether the profile ends have burrs. The two blade sets mean you can swap in the spare immediately after wear, with no downtime waiting for replacements.

The machine comes with a full spare parts list: 2 meters of chain, 2 sprockets, a fuse, 2 encoder sets, the operation manual, and seal rings. Both the encoder and blades have duplicate spares. That attention to spare parts speaks to our focus on keeping your production running.

Export Delivery Support

Are you worried that a 13.5 ton machine might get damaged or delayed during international shipping? Packaging, lifting, ocean freight, customs clearance, and on site commissioning each require careful handling.

Cangzhou Zhongtuo ships to over 160 countries and regions. The company holds ISO9001, CE, CAS, and SGS certifications.

The company operates multiple independent websites and a 5,200 square meter showroom. For export orders, we provide full service support from packaging to overseas commissioning. Our technical team completes on site installation and commissioning after the machine arrives, making sure it runs reliably under local conditions.

If you are planning a new roll forming line, or if your current machine struggles with thick material precision, we are here to help. We can offer specific recommendations based on your material thickness, product profile, and output targets. There is no single right answer for equipment selection, but we can work together to find the machine that fits your needs best.
