Have you faced this situation. Workers get tired during night shifts. Some bundled channels come out loose, others come out too tight. Loose bundles fall apart during transport. Tight bundles get damaged on the edges. Your customers keep complaining.

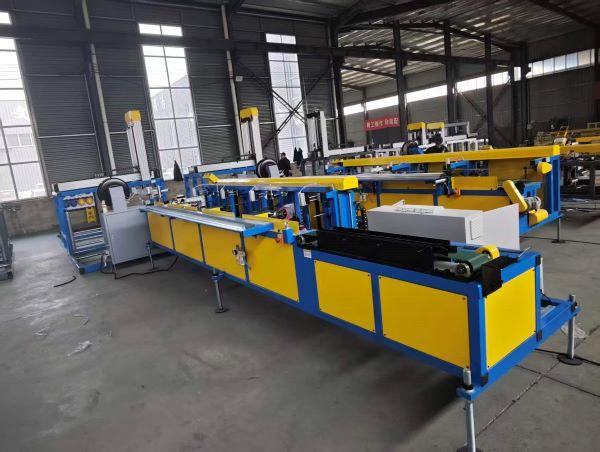

Light gauge steel channels are the hidden skeleton of drywall partitions and suspended ceilings. If bundling bends the channels or scratches the galvanized layer, rust will start within months after installation. Thestud channel automatic stacker machineuses servo motors and soft rubber clamping to make every bundle neat and consistent. It also fits multiple specifications. This equipment helps you achieve stable output.

Application Fields

Light gauge steel channels have a wide range of applications. The stud channel automatic stacker machine can handle the following finished product types:

• Drywall partition channels: for interior non load bearing walls in office buildings, hospitals, schools, and residential projects. These replace traditional masonry walls with faster construction and lighter dead load

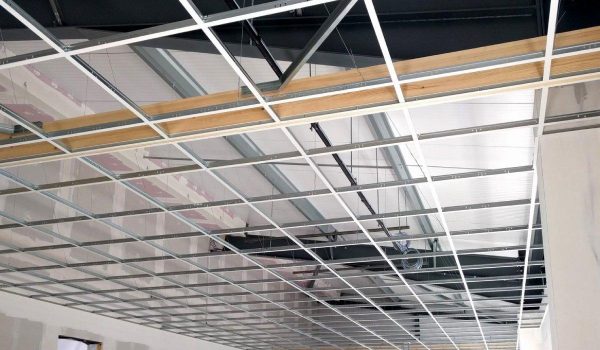

• Suspended ceiling channels: for ceiling systems in shopping malls, hotels, airports, and subway stations. These carry plasterboards or metal panels with excellent fire performance and easy access for utility lines
• Furring wall channels: for renovation projects or basement walls. These add channels and finish panels over existing walls to address moisture and insulation concerns
• Column cover and shaped channels: for decorative column cladding and curved or custom ceiling shapes. These provide flexible design options

Precise and Consistent Bundling Results

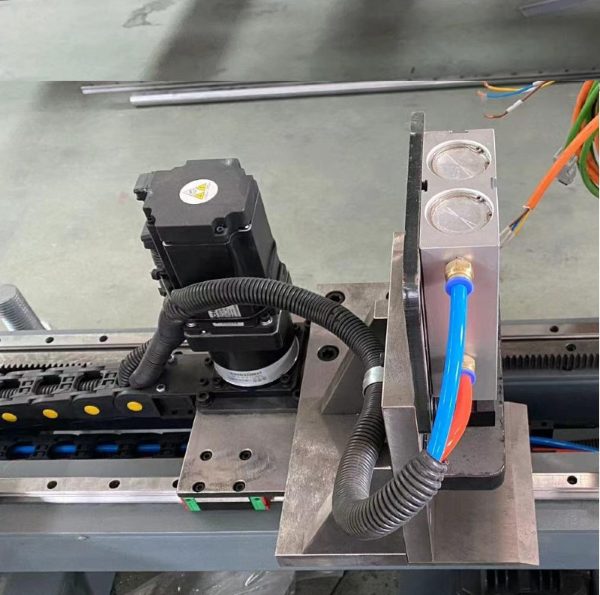

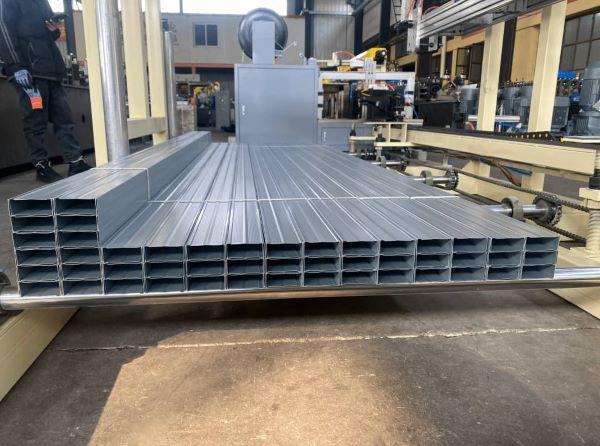

Each bundle holds 24 channels arranged in 4 layers, 3 columns, and 2 rows. The stud channel automatic stacker machine uses servo gear rack transmission on the pulling section. This provides precise position control and avoids the shifting or misalignment common with manual pulling.

Five servo motor systems control the buckle, lifting push table, PP tape wrapping, pulling, stacking translation, and stacking lifting. These servo systems work together to keep every channel in the correct position. This equipment ensures your products stay uniform starting from the bundling stage.

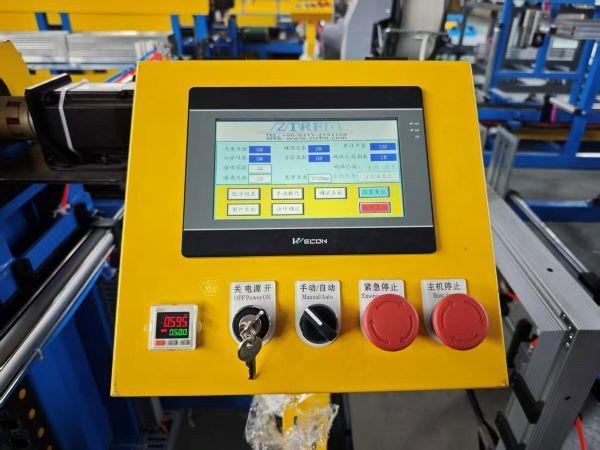

When you switch between different widths of partition channels or ceiling channels, the machine’s built in recipe storage system saves up to 50 channel types. After you call up a recipe, the servo systems adjust to the corresponding parameters automatically. You do not need to recalibrate the machine each time. Neat bundles make better use of container space and reduce transport damage.

Clamping Protection That Does Not Damage Channels

You might worry that the machine’s clamps will leave dents on the channels. The stud channel automatic stacker machine uses soft rubber wrapping on the clamping parts. The cylinder pressure is adjustable. Even 0.3mm thin channels will not get squeezed or deformed.

The galvanized layer is the channel’s rust protection. Once scratched, rust will appear within months in humid conditions. This equipment lets you bundle with confidence and keeps product surfaces intact. The stacking support plate uses a folded forming process instead of welding, so it will not crack or break.

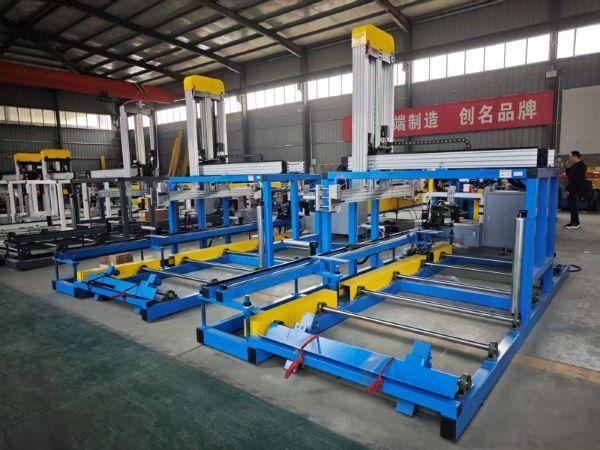

The base uses 120 by 80mm square tubes. Forklifts can enter from any direction and will not knock the bundles out of alignment. The heavy duty cable carrier ensures stability during long term high speed operation and suits round the clock production.

Technical Parameters

Industry Knowledge of Partition and Ceiling Channels

Light gauge steel channels are the invisible framework in building interiors, yet they determine the stability of walls and the safety of ceilings. Partition channels must support the weight of wall finish panels and also meet sound insulation and fire resistance requirements. Ceiling channels must carry plasterboards while leaving space for maintenance access and utility routing.

The stud channel automatic stacker machine handles these exact building materials. If bundling deforms the channels, they will not fit correctly into the floor and ceiling tracks. Partition verticality will exceed tolerance, and ceiling flatness will suffer. This equipment delivers your channels to the job site in good condition and provides reliable support for buildings.

Support for Your Production Line

Every channel production line is different. Your order specifications, plant layout, and capacity needs all have unique aspects. We can offer suggestions based on your actual situation, including recipe presets, air supply piping planning, and power connection solutions.

If you are currently concerned about inconsistent bundling quality, or if you want to learn how this stud channel automatic stacker machine fits your partition channel or ceiling channel products, please contact us anytime. We are happy to help you assess your requirements and find the right configuration for your needs.
