Non-Stop Cutting T Grid Roll Forming Machine | ±1.5mm Precision Ceiling Framing Line
Publish Time:2026-03-25 16:24

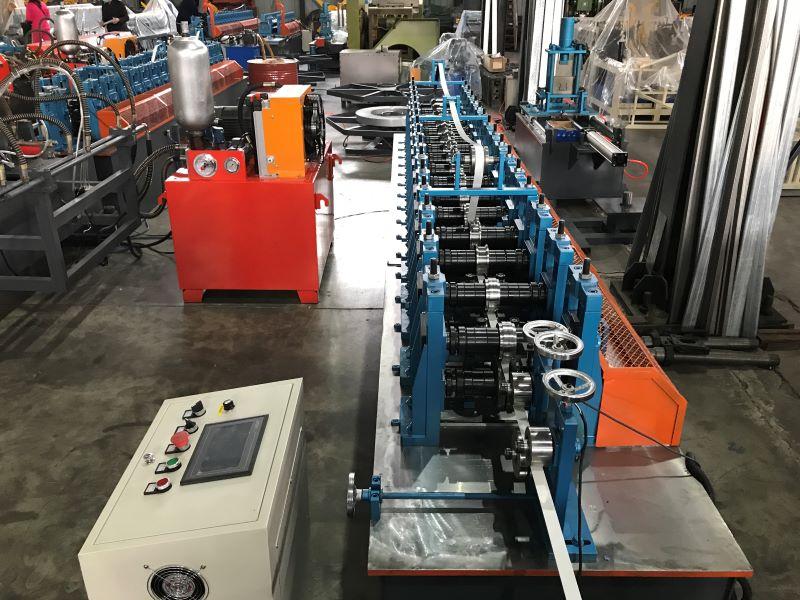

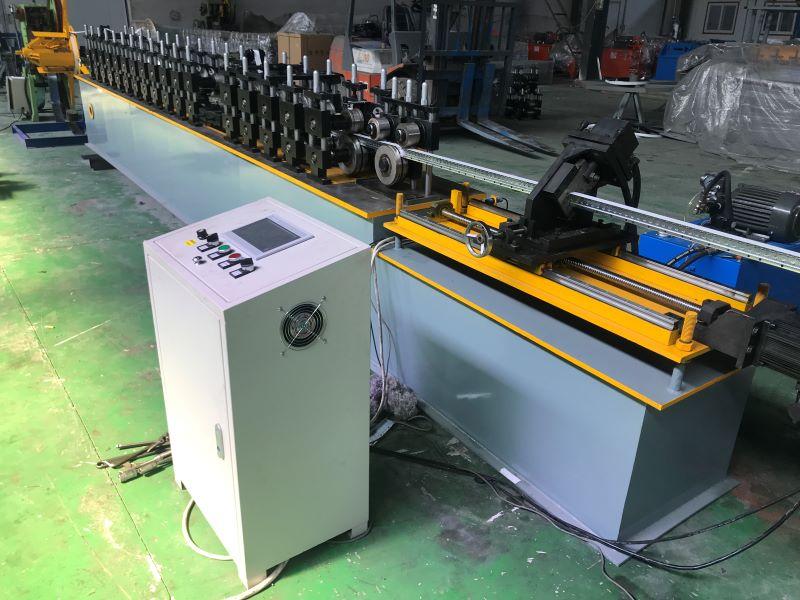

This T Grid Roll Forming Machine adopts an independent stand (cast steel) and 16 stations of rollers with quenched treatment, paired with two sets manual decoilers and a chain transmission system to ensure stable production with accuracy within ±1.5 mm. The core of this T Grid Roll Forming Machine features a servo tracking punching system, supporting non-stop cutting at 0-25 m per minute while synchronously realizing the logo pressing function for high efficiency.
Controlled by an intelligent PLC system with a touch screen (language: English and Chinese), this T Grid Roll Forming Machine provides automatic length & quantity measurement and multiple electrical protection functions. Its design integrates high-precision forming and high-speed non-stop cutting, making it a practical solution for optimizing production capacity and product value in various mass production scenarios.

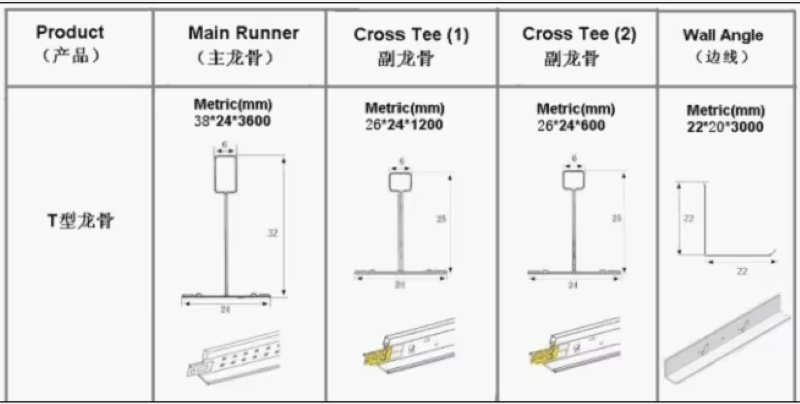

Diverse Finished Products Display
Main technical parameters
| Number of Forming Steps | 16 stations |
| Shaft Material | 45# steel (quenched treatment) |
| Shaft Outer Diameter | 40 mm (precision machined) |
| Roller Material | Cr12 (quenched treatment) |
| Transmission Type | Chain drive |
| Forming Speed | 0 - 25 m/min |
| Motor Power | 4 kW |
| Voltage Requirement | 380V, 50Hz, 3-phase |
| Structure Type | Independent stand (cast steel) |
Why Choose Our T Grid Roll Forming Machine
1. Full automatic and fast speed.
2. Low energy consuming, no matter from workforce or electricity.
3. Easy to operate, normally speaking one week then you can learn how to run it.
4. The main T grid made by our machine is beautiful in shape and solid when using.
