METAL ROLL FORMING MACHINE
Zhongtuo roll forming Systems is a "one-stop shop" for all your roll forming needs,enabling our customers to save time and money when buying roll forming machines,to help customers grow.

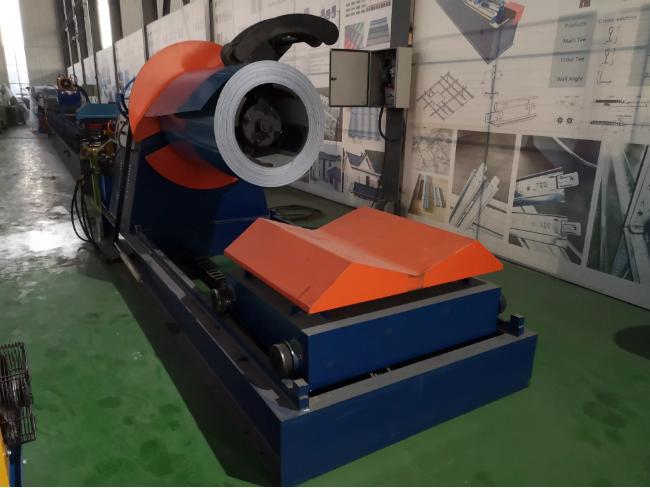

10 Ton Hydraulic roller former decoiler for roll forming machine
Thedecoilingmachineistheessentialequipmentoftherollformingline,itisusedtosipportthecoilsanddoinguncoiling.2)Itadoptsthehydraulicoilcy...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
The decoiling machine is the essential equipment of the roll forming line, it is used to sipport the coils and doing uncoiling.
2) It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped with the cantilever.
3) Motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.
4) The core can ensure the expand range φ450 of the coils innerdiameter.It will provide the rubber band to ensure the 550 mm diameter.
5) Carrying capacity:8 Ton, max coil width: 1250mm
Feeding speed: 0-40 m/min (adjustable) Driving motor power: 3 kw
Hydraulic motor power: 5.5 kw
6)Structure: welding by the steel plates and profiled bar.
7)The decoiler is equipped with the brake system, ground sensor, pressing arm and remote control
