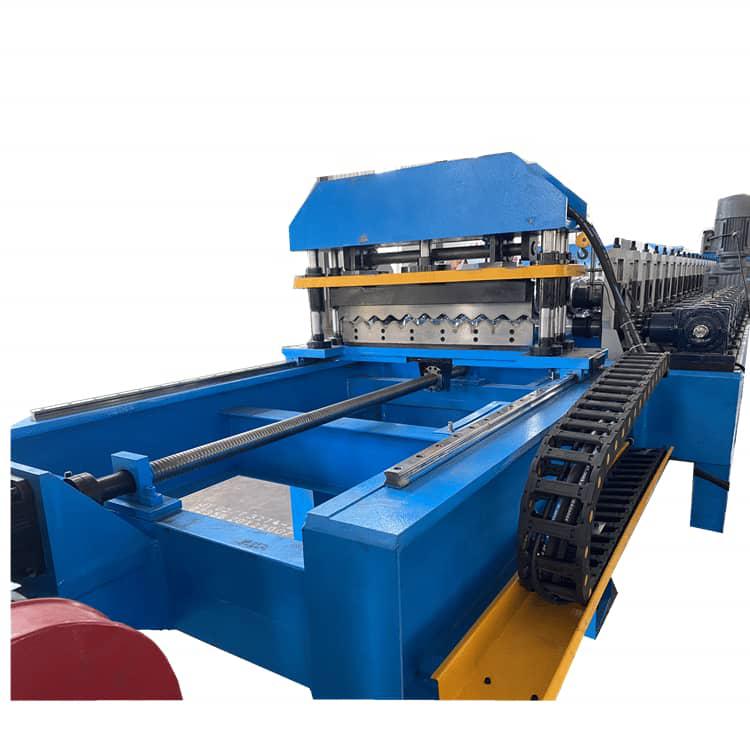

R101 Trapezoidal Metal Roof Sheet Roll Forming Machine
PopularTrapezoidalMetalRoofSheetRollFormingMachineinMexico,Costarica,Hondulas,Guatemala,Colombia……Feedingwidth1220mmforR101and914mmforR72
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content

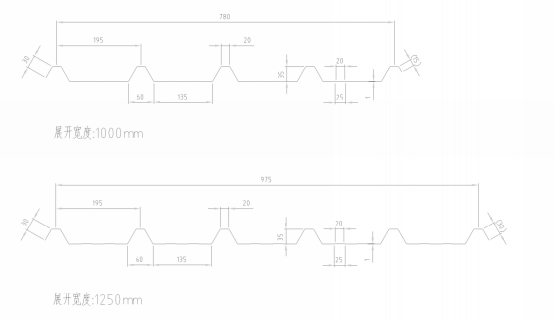

R101 Trapezoidal Sheet Forming Machine make trapezoidal roof sheet for Mexico market.
Feeding width 1220mm for R101 and 914mm for R72, ( only feed different width raw material, no need to change machine)
Thickness 0.3-0.7mm or gauge 23-30(to produce different thickness, no need to change machine)
Yield strength:235Mpa-550Mpa
Any length product can be manufacture on this roll forming machine.
Main components of roll forming machine

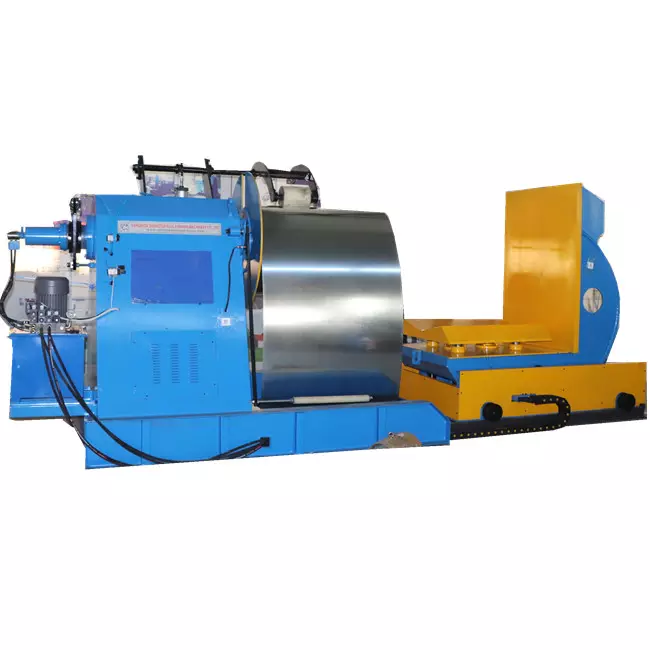

5 ton manual decoiler, forming machine with post cut, PLC controller , hydraulic station, run out table
Main features of forming machine
mitsubishi or siemens control system to automatical produce with high precision
21 roller stations to garantee the flat and precise of final r101 trapezoidal roof sheet
Forming machine weight about 8 tons
Easy installation
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 1220mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 22 |
| Diameter of forming rollers shafts | 80mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
