Fully automatic C & Z purline machine from 80 to 300  automatic changing sizes by PLC

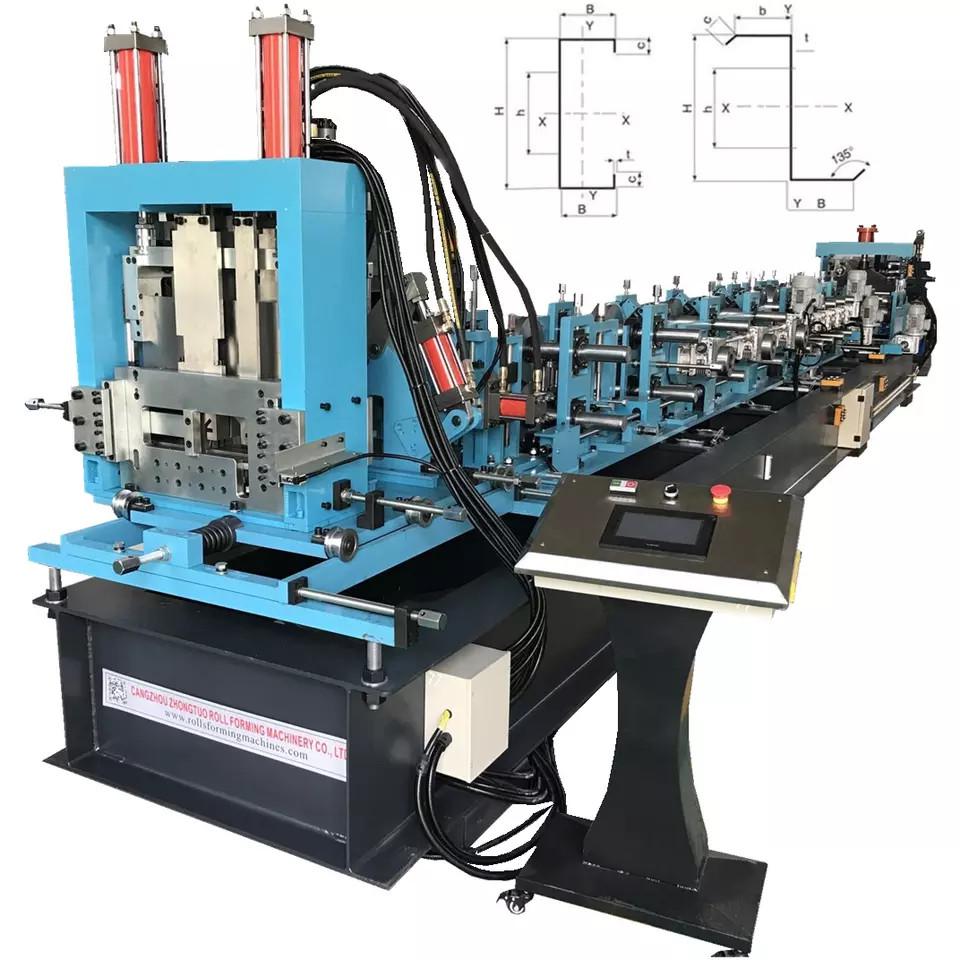

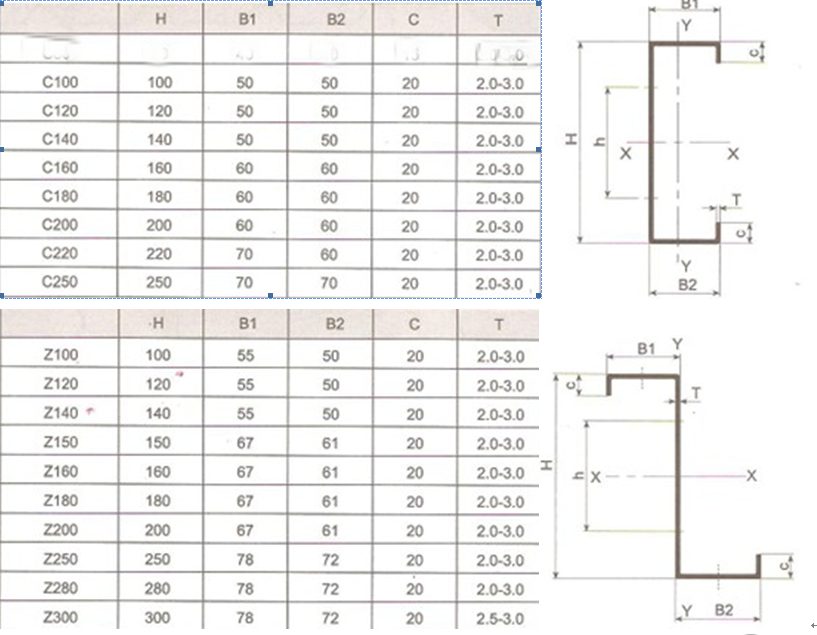

    Fully automatic C & Z purline machine from 80 to 300  automatic changing sizes rollers by PLC control. By this CZ purline machine, you can produce the C purline and Z purline in batch fully automatically.Nowadays structural C and Z purlins are for industrial buildings, garages, verandahs, and carports; anywhere that strong reliable steel framing is required. Manufactured from quality galvanised steel, this is a fully integrated system allowing for flexible design options. Based on the needs, we developed fully automatic CZ purline rolling forming machine. The following picture shows the size range and thickness range:

        For the Z purline, in the market, there are different types as the Z lips coner angle different. But by Zhongtuo CZ purline machine, it can produce those profiles easily. For making quotation accurately, we need your drawing profile and size range more accurate.Normally the CZ purline machine needs the plain or punched, which galvanised purlins are manufactured from high tensile steel for increased strength, reduced weight and a long serviceable life. All those punching on line could be made by this machine controlled by PLC system.

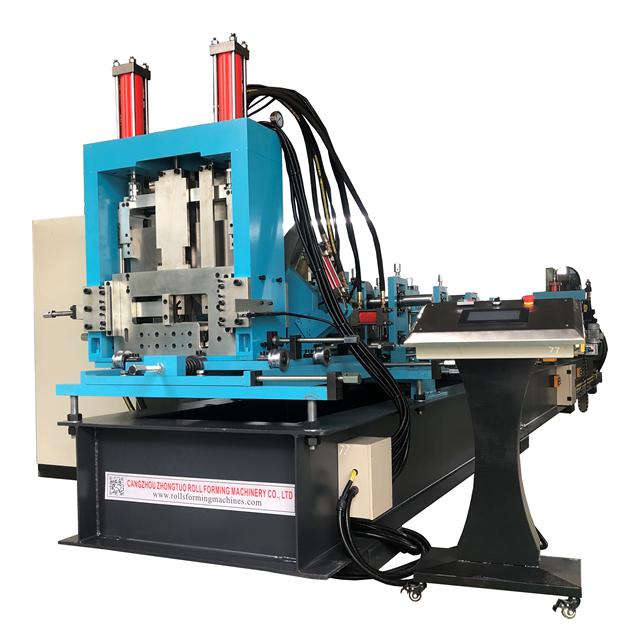

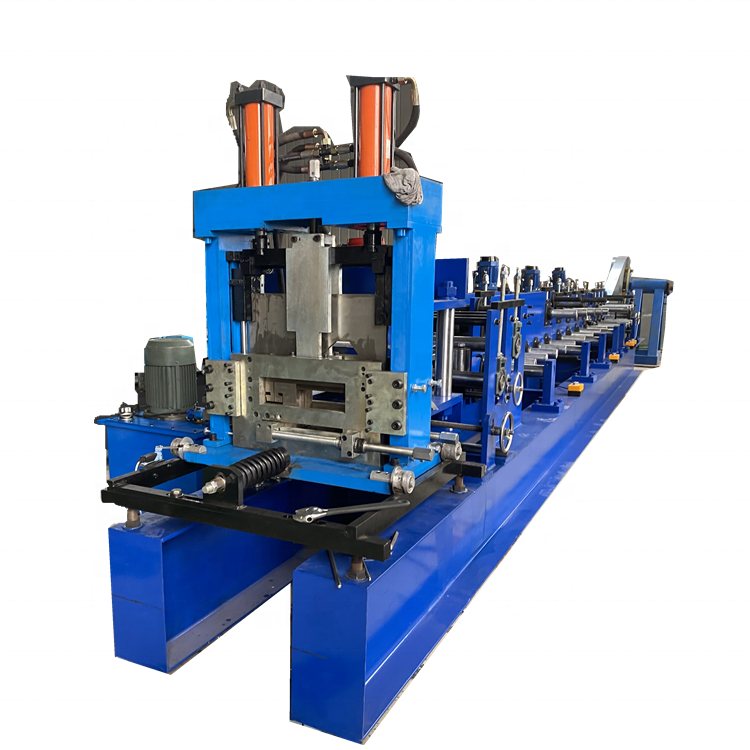

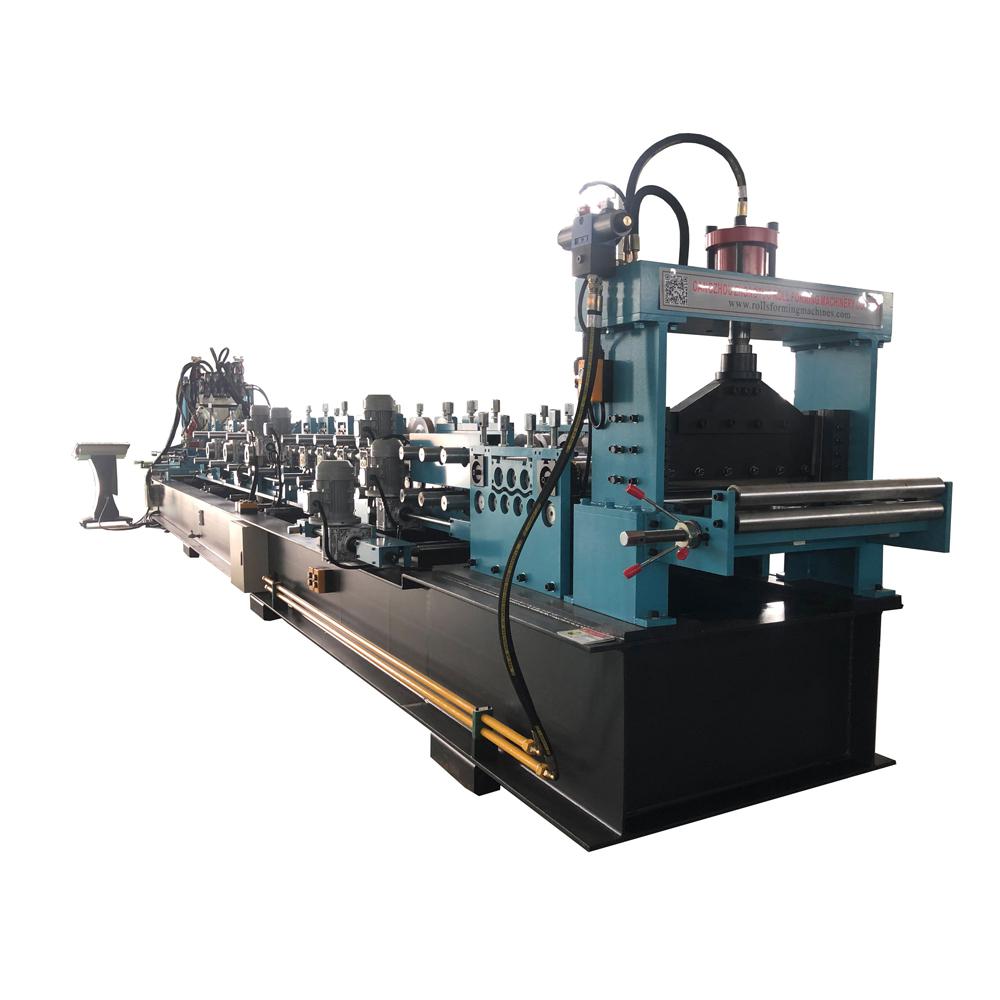

Here is the Fully automatic C & Z purline machine picture for your reference:

Features of CEE Purlin and ZEE Purlin rolling forming machine:

1. It offers a rapid change rollformer for allowing the operator to select a flange height change in minutes and not hours.

2. The web width change in an infinite range from 100mm up to 300mm fully automatic.

3. It supports produce purlin in pre-painted, in galvanized and also the use of Hot Rolled steel.

4. High accuracy with punching and high speed from uncoilers, as well as a wide range of hole punching systems for inline web and flange hole placement with high accuracy.

5. Automation of gapping the roll tooling for different thicknesses can be added so that your operator does not have to adjust the top shaft for material thickness changes.

Fully automatic C & Z purline machine more detail pictures for your reference:

 CZ purlin machine rollers

Brand: ZT    Original: China

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body framemade from 400# H type steel by welding

CZ purlin machine post cutter

Brand: ZT   Original: China

No need to change cutter for different size,

made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 30mm steel plate by welding

Pre-punching & Pre-cutting, stop to punch, stop to cut

hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

For C purline machine, Z purline machine, we have more options like

C purline manual adjustment rolling forming machine

Z purline manual adjustment rolling forming machine

C Z purline manual adjustment rolling forming machine

Single C purline fully automatic adjustment rolling forming machine

Single Z purline fully automatic adjustment rolling forming machine

As different options, machine cost will be different. If you need to know more information, please contact us at any time.
