Shaft of wall GH panel roll forming machine

Shaft of wall GH panel roll forming machine The Wall GH panel roll forming machine is designed for making the GH panel production in batch fully automatically.GH panel drawing profile for your reference:Work Flow of Wall GH Panel Roll Forming Machine:Decoiler---roll forming--- --shearing part---run out tableThe Wall GH Panel Roll Forming Machine is composed by the following elements:1.Decoiler It is used to support the steel coil and uncoil it in a turntable way. TheLoading capacityis3TTheUncoiling widthis 300mm. TheInner diameteris 450-550mm.2.Feeding and leveling This part will level coil to make sure it is neat clean and straight.3.Roll forming machineThe Sizeis 5300х1200х1400mm.The Wei...

   Inquire


Shaft of wall GH panel roll forming machine

The Wall GH panel roll forming machine is designed for making the GH panel production in batch fully automatically.

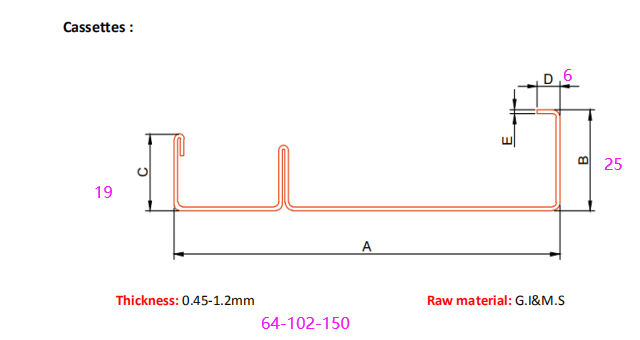

GH panel drawing profile for your reference:

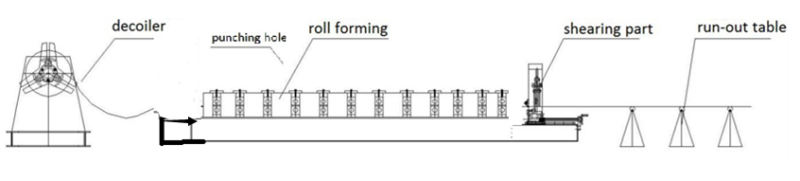

Work Flow of Wall GH Panel Roll Forming Machine:

Decoiler---roll forming--- --shearing part---run out table


The Wall GH Panel Roll Forming Machine is composed by the following elements:

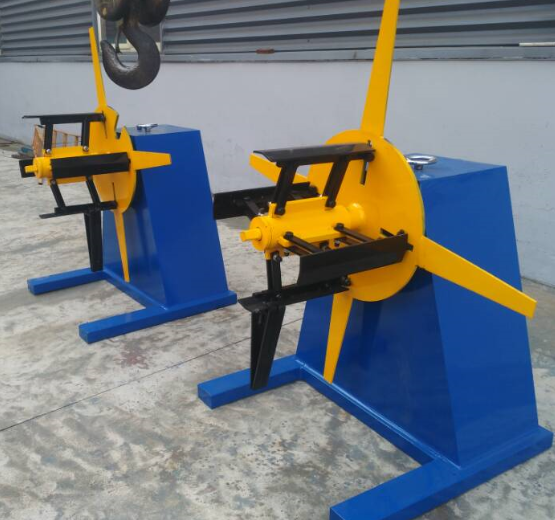

1.Decoiler

It is used to support the steel coil and uncoil it in a turntable way. The Loading capacity is 3T

The Uncoiling width is 300mm. The Inner diameter is 450-550mm.


2.Feeding and leveling

This part will level coil to make sure it is neat clean and straight.

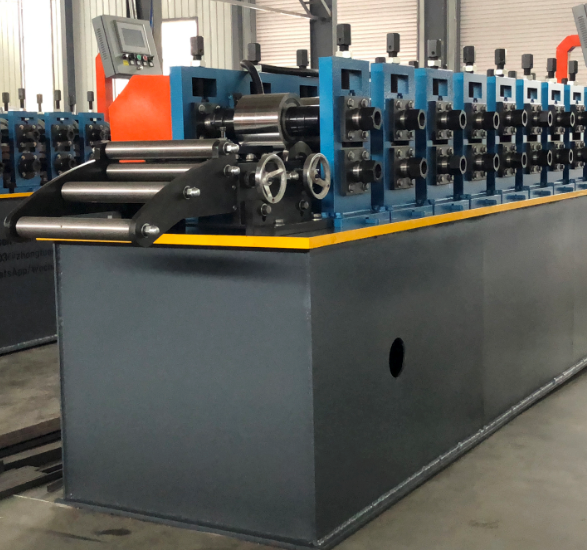

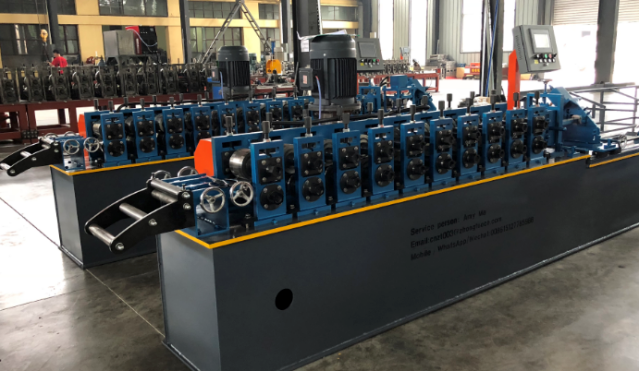

3.Roll forming machine

The Size is 5300х1200х1400mm.The Weight is 6.8 tons.The Voltage is 380V/50HZ3Phase(as customer’s request). The Roller fixer is Guide column. The machine Frame is middle plate welded

Memorial arch frame type

The Frame thickness is 25mm

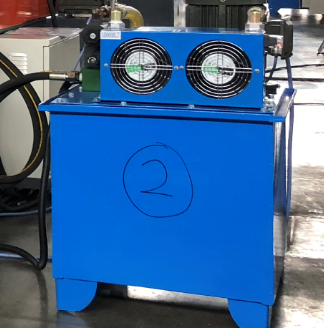

4.Hydraulic Station

The system includes a set of hydraulic tank, a set of hydraulic oil pump, and four hydraulic pipes. And two electromagnetism valves: one is for punching hole, one for cutting.

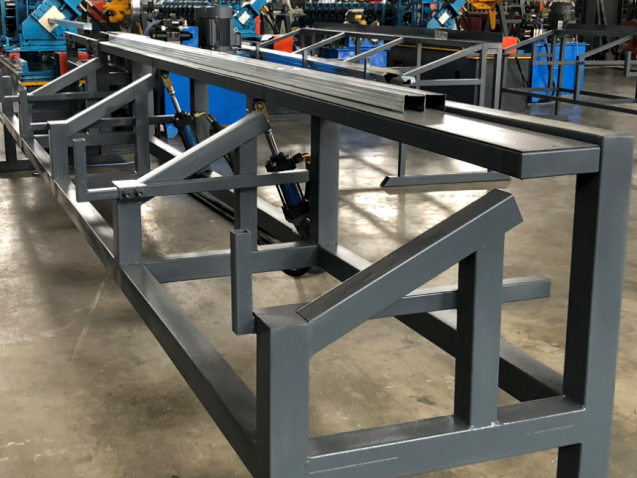

5.Run-out table

It adopts welded steel and supported roller to transmit the products.
