Galvanized Steel Peach Shape Post for Fence Rolling Forming Machine

Galvanized Steel Peach Shape Post for Fence Rolling Forming MachineMetal Fence Column Productrolling forming machine is designed to make the peach Shape Post, metal fence postin batch fully automatically.Peach shaped column fence is a new product. It is popular in developed countries such as the US, Japan and Korea,and has big features. It is beautiful, generous, limited by terrain and easy to install.It adopts high quality processing technology, and the surface of galvanized steel is treated with high adhesion and spray.At any height of the column, inserting the mesh into the predesigned grooves is a while that can not be disassembled bythe fence. Fast propulsion installation, no need for a...

   Inquire


Galvanized Steel Peach Shape Post for Fence Rolling Forming Machine

Metal Fence Column Product rolling forming machine is designed to make the peach Shape Post, metal fence post in batch fully automatically.Peach shaped column fence is a new product. It is popular in developed countries such as the US, Japan and Korea, and has big features. It is beautiful, generous, limited by terrain and easy to install. It adopts high quality processing technology, and the surface of galvanized steel is treated with high adhesion and spray. At any height of the column, inserting the mesh into the predesigned grooves is a while that can not be disassembled by the fence. Fast propulsion installation, no need for any accessories for various types.

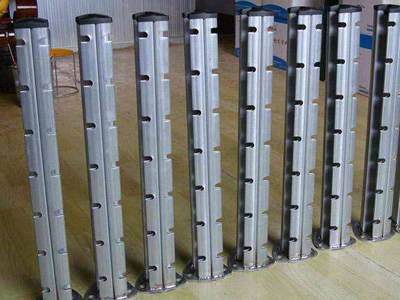

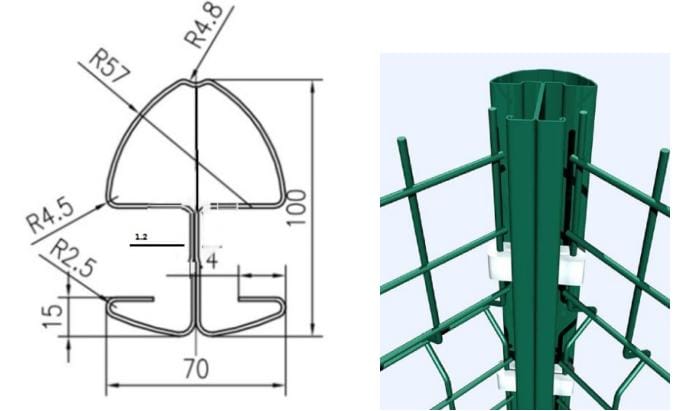

Here is the drawing profile and finished product pictures for your reference:

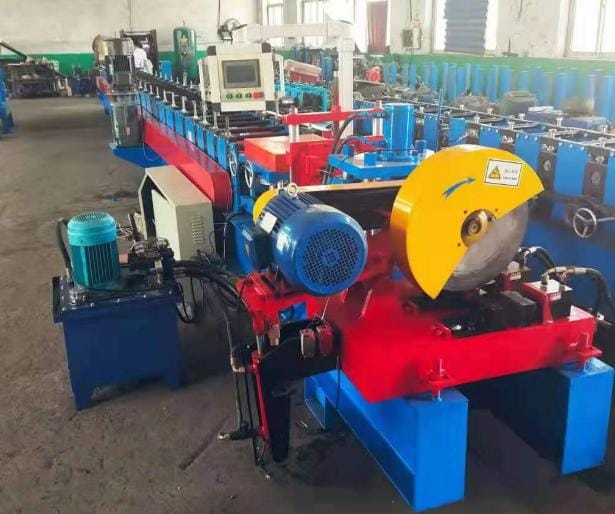

 Galvanized Steel Peach Shape Post for Fence Rolling Forming Machine:


Galvanized Steel Peach Shape Post for Fence Rolling Forming Machine Parameters for your reference:

Rolling forming machine

1.Roller station: 26 stations

2.Shaft material:45# steel   Outer diameter:90mm

3.Roller material:  Cr12Mov

4.Transport: Chain 5.Forming Speed: 0-8m/min

6.Motor:11kw

7.Machine frame: 280 H beam

8. Frame thickness: 20mm, middle plate frame

9.Voltage:380v,50Hz,3 phase or csutomize

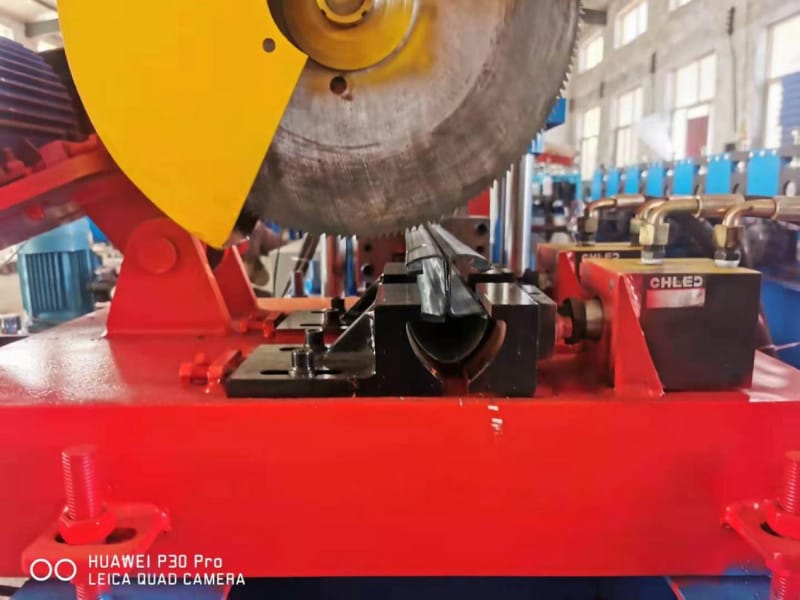

Shearing Part:

1)Flying and tracking cutting saw, the cutting saw will adjust the cutting speed and location according to the main machine speed. By this method, the machine working speed will be same as the main machine accordingly. The cutting plate we take the best material for cutting it in high speed and beautiful cutting scare.

2)The material of blade: Cr12MovHardening HRC 58-62℃

3)Length Tolerance:3m±1.5mm

4) Flying cutting saw, can make sure the perfect shape after shearing.

5) Note: this type shearing syste could support three sizes of pipes.

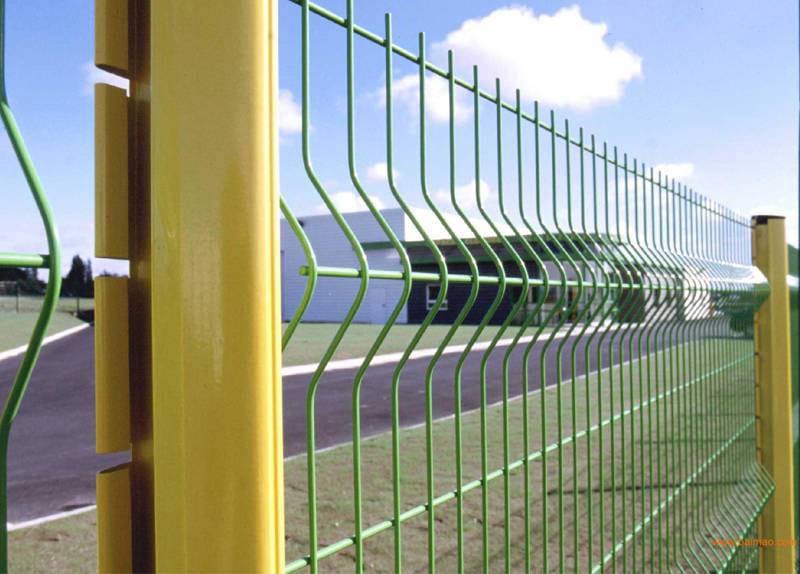

Galvanized Steel Peach Shape Post for Fence Using Area:



Galvanized Steel Peach Shape Post for Fence Rolling Forming Machine Working Videos for your reference:
