Fully Automatic Slitting Machine Line: Hydraulic Coil Slitting Machine for High-Speed Metal Cutting
Publish Time:2026-03-24 15:05

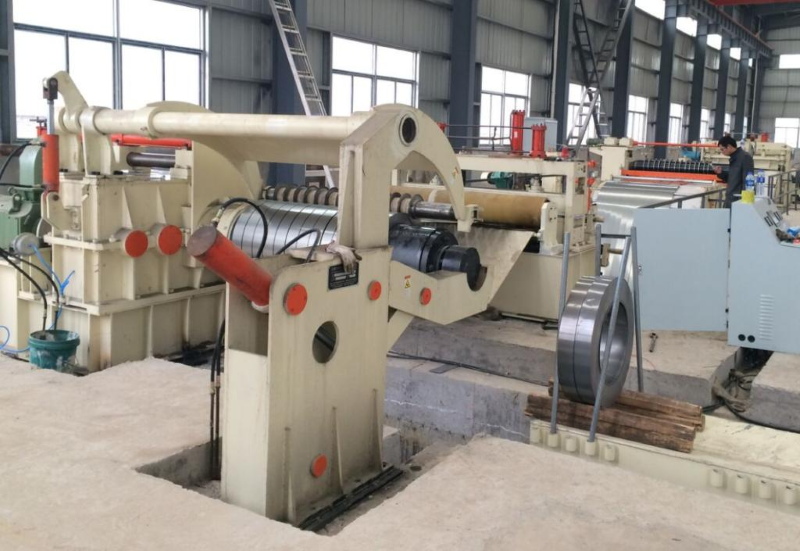

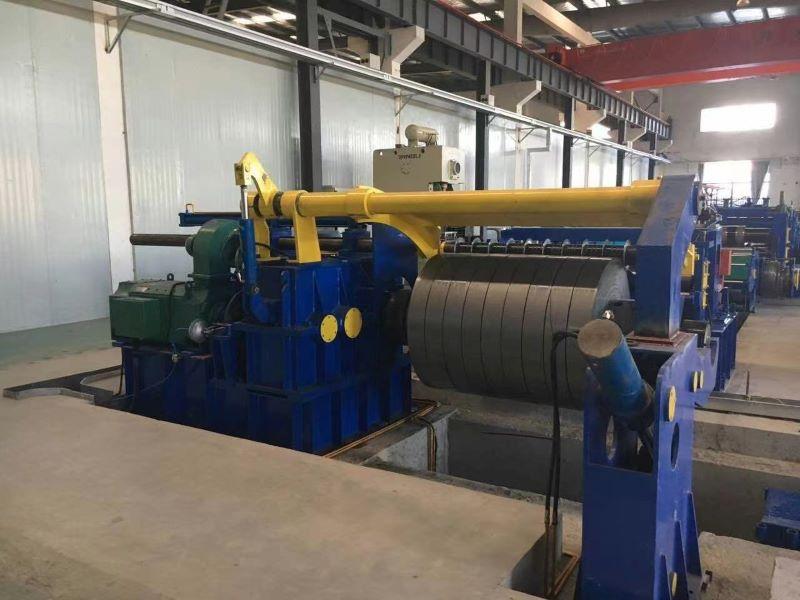

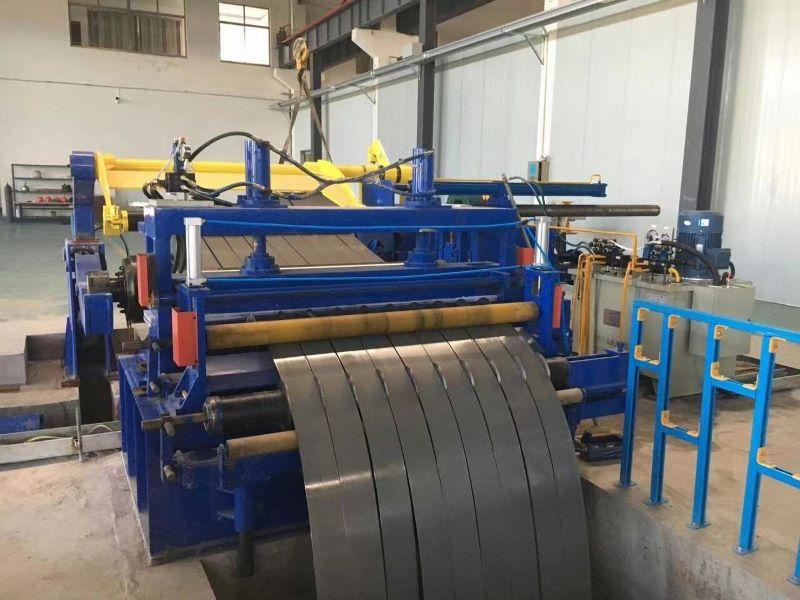

As a pivotal hub bridging upstream and downstream segments, the Hydraulic Slitting Line seamlessly connects massive master coils with specific narrow-strip requirements. Functioning as a versatile metal slitting line machine and coil slitting line machine, it serves the critical needs of precision manufacturing sectors.
Leveraging advantages like high speed and low energy consumption, this high speed slitting machine line transforms wide coils into standardized strips with smooth edges. Operating as a fully automatic slitting machine line for efficient slitting line cutting, it guarantees high-quality raw materials for industries such as automotive, power generation, and home appliances.
Main technical parameters
1.Steel Coil Parameters
| Material | CRS and GI |
| Tensile strength | δb≤450Mpa δS≤260Mpa |
| Steel thickness | 0.3-3.5mm |
| Steel width | 500-1600mm |
| Steel coil I.D | φ480-520 mm |
| Steel coil O.D | φ1600mm(max) |
| Steel coil weight | 15T(max) |
2.Slitter Parameters
| Knife pivot diameter | Ф220 mm |
| Knife pivot material | 40Cr |
| Blades specification | Φ220mmXφ340mmX15mm |
| Blade material | H13K |
3.Slit Parameter
| Max slit quantity | 5 pcs (3-3.5mm) 8 pcs (2mm) 15 pcs(1mm) 25 pcs(0.3mm) |
| Width precision | ≤±0.05mm |
4.Other Parameters
| Power | 380V/60Hz/3Ph |
| Line speed | 0-60m/min |
| Capacity | Around 220 Kw |
| Whole line Dimension | 23m(L)X8m(W) |
| Daily production capacity | Around 40T (for 8 hours) |
| Operator needed | 1 mechanical engineer ,2 common workers |
| Line direction | From right to left(Face to machine) |
💡 Why Choose Our Hydraulic Slitting Line
- The electrical control system lets you change the whole line speed easily and even feed the plate manually when needed.
- Our recoiler works with the divided strips to make sure the coil is tight and even, with adjustable tension and speed.
- The slitter has a side guide device to stop the strip from jumping, helping you get accurate cuts for any strip thickness.
- We check everything from design to manufacturing and services carefully before the machine leaves our factory.
Please scan the image below or contact us directly via the details provided:
