Solar Panel Mounting Bracket  struct channel Roll Forming Machine

Solar Panel Mounting Bracket struct channel Roll Forming Machine is designed for making the solar panel sheet production in batch fully automatically.

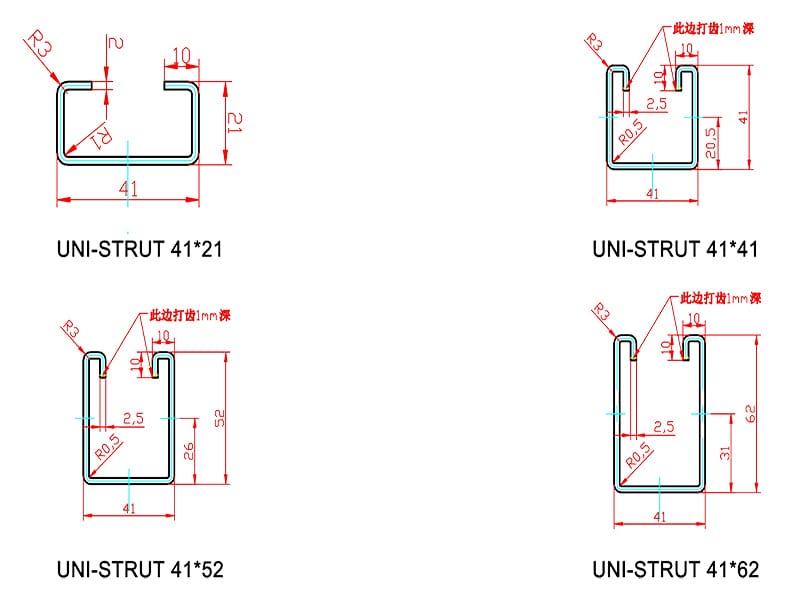

The solar panel drawing profile for your reference :

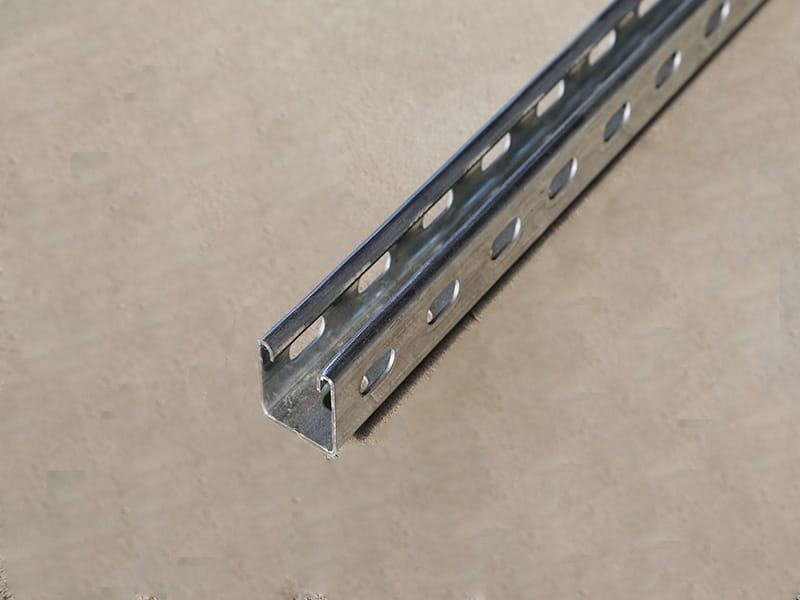

Finished product profile:

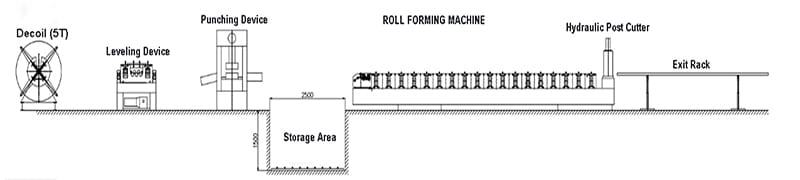

The work flow of the solar panel mounting bracket struct channelroll forming machine:

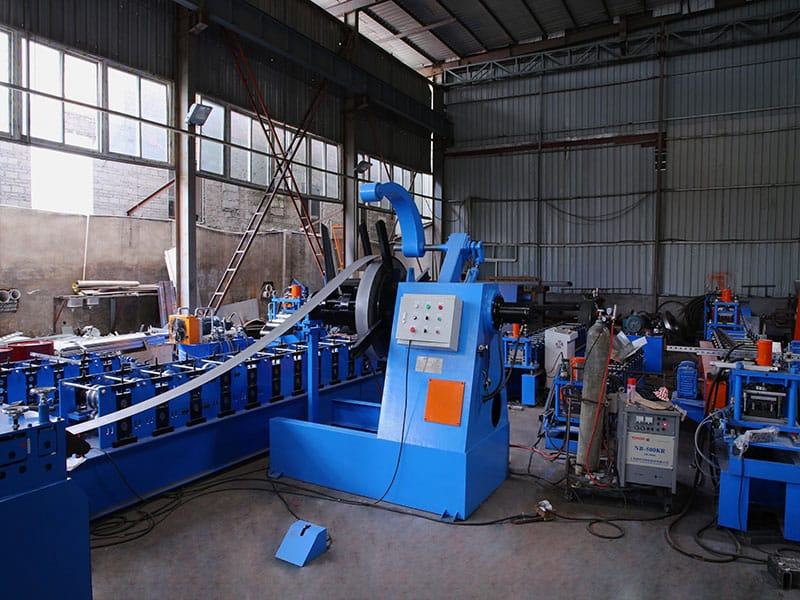

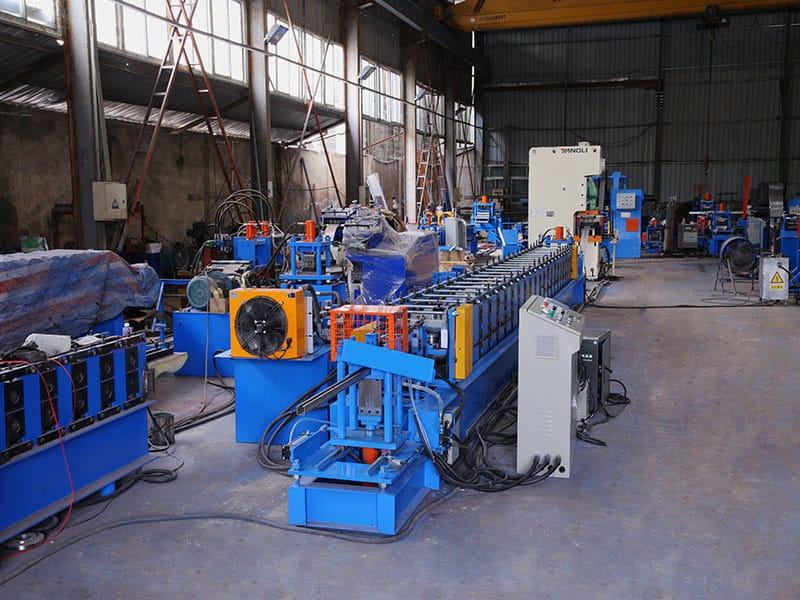

Based on the customer requirements and our experience, we design the solar panel mounting bracket struct channelRoll Forming Machine like following picture:

The solar panel mounting bracketstruct channel Roll Forming Machine is composed by the following elements:

1. 5 Ton Hydraulic Decoiler: one set

Hydraulic control steel coil inner bore shrinkage and stop

Max.feeding width:600mm

Coil lD Range:508±30mm,Outside Diameter:1500mm

Max capacity:5ton，motor:3KW, frequency speed control

Oil pump motor:3KW

Add automatic feeding power and self-stop device

With Hydraulic Pressure Arm Device

2. Leveling Device

Up Three down Four totally seven roller leveling device

With feeding material guide, body frame made from H450 type steel by welding

Shafts manufactured from 45# steel,Quenching and tempering heat treatment,

hard chrome plating.Diameter=φ90mm,precision machined

Motor power:3KW

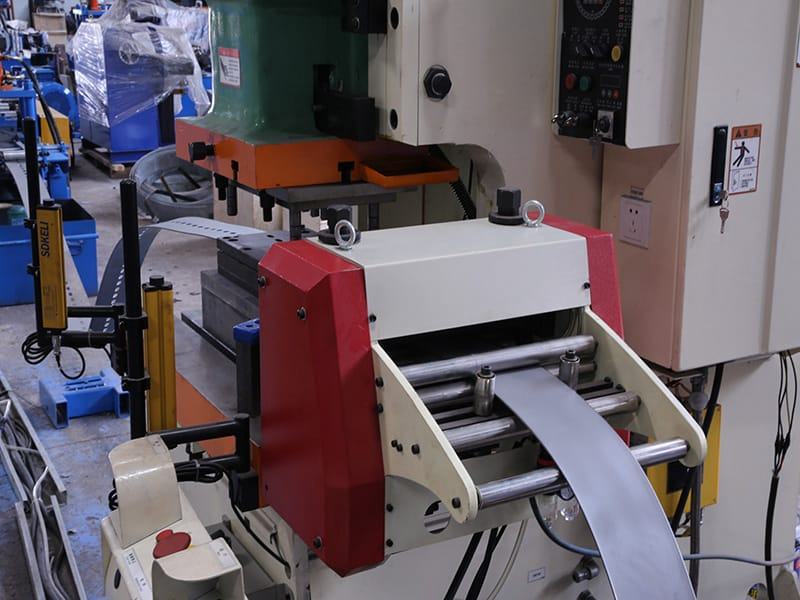

3. Servo Drive &Punching Machine

63 Tons HIGH SPEED punching machine before roll forming, equip with one set of punching model. Punching machine four sides with safety cover and one side with open the door. By PLC system control.

Material sending by the Servo motor for punching more accuracy,servo motor power :3 KW

2. Main Machine

With feeding Guide,Body frame made from H400 type steel by welding

Side wall thickness: Q235 t18mm;Tie rod:φ22 Galvanized

Rollers manufactured from Bearing steel GCr15(=EN31 steel), precision

machined,hard Chrome Coated;with thickness 0.04mm,surface with mirrortreatment(for longer life and anti-rust);Shafts manufactured from 45#steel,Quenching and tempering heat treatment,hard chrome

plating.Diameter=80mm,precision machined

Gear & chain drive about 22-step to form

Main Motor(Polaroid brand)=15KW ,Frequency speed control

3. Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design,no blanking

Hydraulic motor: 5.5KW

Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life),Heat treatment to HRC58-62 degree

The cutting power is provided by the main engine Independent hydraulic

Station
