roll forming machine for Solar Panel Mounting Structure
The GI strut channel can be fastened to the side of the home to allow the solar panel to be placed at the most advantageous angle. For those who would require the GI strut channel machine. we provide affordable options. Purchase today and invest in a better future of your family, community, and the planet as a whole. If you have any questions, please contact us at for further details.
Technical Parameters of Solar mounting structure strut channel machine
1. Material thickness range:1.5-2.5mm
feeding width: 90-230mm
2. Main motor power: 22 k w
3. Forming speed:8 m/min
4. Shearing method: Hydraulic shearing.
5. Hydraulic station power:11 KW
6. Quantity of rollers:24 rollers
7. Shaft Material and diameter: 80 mm, material is 45# forge steel
8.Material Of machine body: 25mm 45# steel
9.Tolerance: +-1.5mm
10. Transmission method: By double chains
11.Material of forming rollers: GCR15 steel, coated with chromed treatment
12.Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃
13.Voltage: 380V/ 3phase/ 50 Hz (as request)
Control Cabinet
PLC : Delta
Touch Screen:Siemens
Encoder: Schneider/Mitsubishi
Plug: Aviation plug
Botton: Schneider
cooling systerm: Fans
Solar mounting structure strut channel

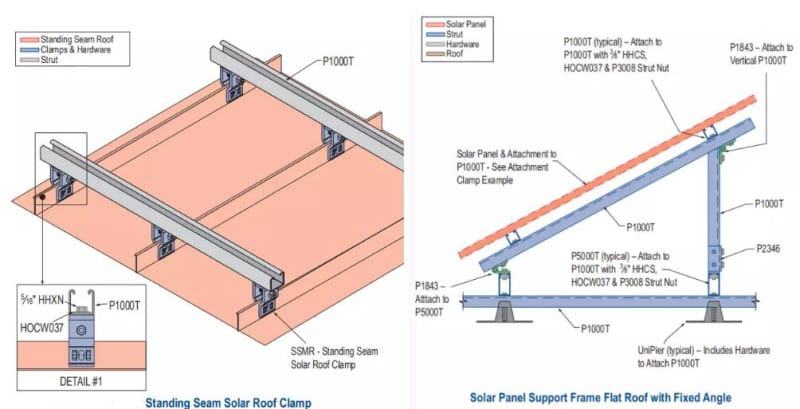

Installation of Solar mounting structure strut channel
