When a customer comes with an order and asks about equipment, the first question is usually: can your perforated cable tray machine handle this thickness? The answer depends on comparing your order requirements with the confirmed machine configuration.

What Is Perforated Cable Tray and What This Machine Produces

Perforated cable trays are cable support structures with regular holes on the bottom or side walls. The holes help with heat dissipation, drainage, and cable fixation. A cable tray making machine produces these trays.

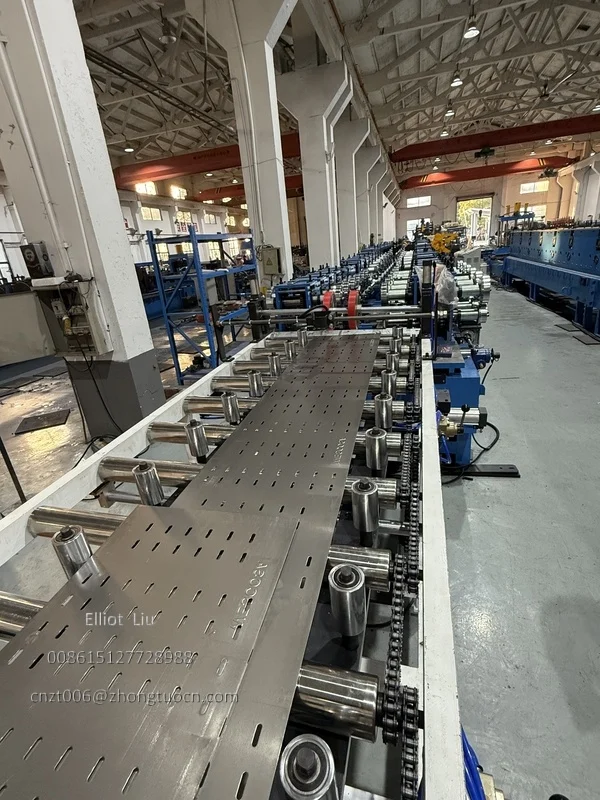

The production process starts from steel coil and goes through uncoiling, leveling, servo feeding, punching, cutting, and forming. The finished product comes out as a complete tray section.

Applications: Where the Products from This Machine Are Used

These trays are produced on a perforated

tray machine for use in data centers, telecommunications, industrial plants, and commercial buildings.

Different projects have different requirements for tray specifications, materials, and thickness. The configuration of a cable tray forming machine can be discussed based on actual order requirements.

Parameters for Order Matching

The following parameters are from a confirmed machine configuration and serve as a reference for order matching:

Parameters: Machine Configuration

These parameters represent a confirmed configuration of a perforated cable tray machine. Different order requirements may require different configurations. Machine configuration confirmation is required for orders outside these confirmed ranges.

Can a 1.0 to 1.2mm Order Match This Machine

The confirmed processing thickness for this machine configuration is 1.0 to 1.2mm.

If your order thickness falls within this range, the machine configuration aligns with your requirement.

If your order thickness is outside this range, the machine may require a different configuration. Machine configuration confirmation is required before making a judgment.

Thickness is the first condition to check, but it is not the only one. Material, width, and finished product specifications also need to be compared against the confirmed machine parameters.

Overall Order Matching

After checking thickness and material, also compare:

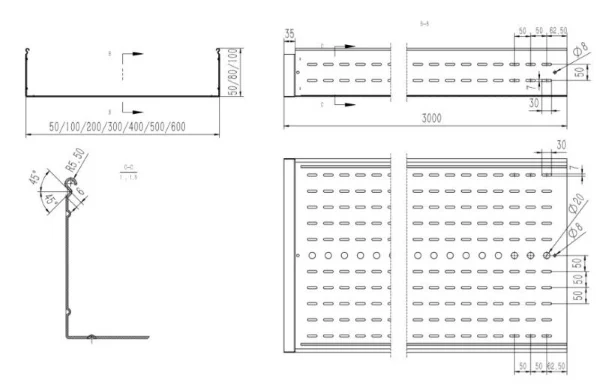

• Finished product specification against 100×50 to 800×100mm

• Coil width against 200 to 1050mm

• Precision requirements against ±1.5mm and 90°±2°

Only when all conditions match can the machine configuration meet your order requirements. Provide your order drawings and material information so the supplier can confirm the configuration.

Machine Advantages: Value of This Configuration

• Continuous production: from steel coil to finished product in one pass

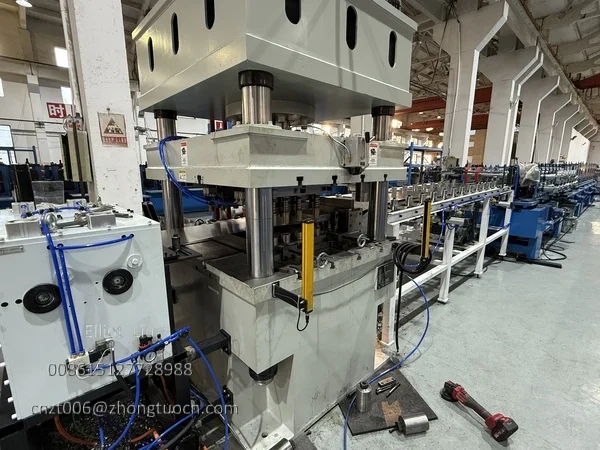

• In line punching and shearing: punching and cutting completed at the same station

• Servo feeding: controlled material feeding for the punching process

• PLC control: parameters adjusted via touchscreen

• Confirmed tolerances: length and width ±1.5mm, angle 90°±2°

Confirm Your Order Requirements

Provide the following information so the supplier can confirm whether the perforated cable tray machine matches your order:

• Order sheet thickness

• Order material type

• Finished product specification

• Coil width

• Planned output

Each order has different requirements. Confirm the machine configuration before ordering to ensure it matches your production needs.
