Are you researching cable tray production methods and wondering what it takes to turn a steel coil into a finished product? You might worry that the process is too complex, that the equipment won't perform well, or that the finished trays won't meet size specifications or install properly.

A perforated cable tray forming machine combines uncoiling, leveling, punching, forming, cutting, and discharging into one line. Steel coils go in one end and finished trays come out the other. No manual handling between stations. No repeated positioning.

Applications – Where Cable Trays Are Used

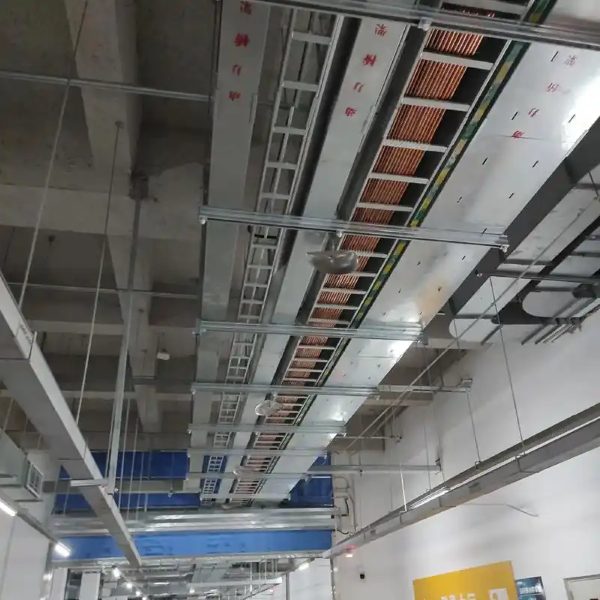

Cable trays are rigid structural systems that support and protect cables for power distribution, communication, and control wiring. Common application areas include:

• Data centers

• Power plants and substations

• Industrial factories

• Commercial buildings

These application areas require different tray sizes and specifications. Manufacturers need production equipment that can handle varied order requirements efficiently. A cable tray production line provides the flexibility to meet these diverse needs.

Key Advantages of a perforated cable tray forming machine

Continuous production. The line runs from uncoiling to finished output without stopping. Steel goes in, trays come out.

Inline punching system. Punching and forming happen at the same station. Hole positions stay consistent without secondary processing.

Multi-pass forming. Each roller pass applies a small amount of deformation. This reduces stress on the material and keeps finished dimensions stable.

PLC control. The system runs automatically. One operator can manage the entire line.

Adjustable width. The equipment produces multiple sizes without changing tooling. This covers a range of order specifications.

Raw Materials for Cable Tray Manufacturing

Three material types are commonly used for cable tray production.

• Galvanized steel

• Stainless steel

• Aluminum

This tray forming machine handles strip thickness from 0.5 to 2.0 mm and strip width from 150 to 850 mm for all three materials.

Cable Tray Production Process and How the Machine Works

Complete Cable Tray Manufacturing Process

The production line processes steel coils into finished trays through the following sequence:

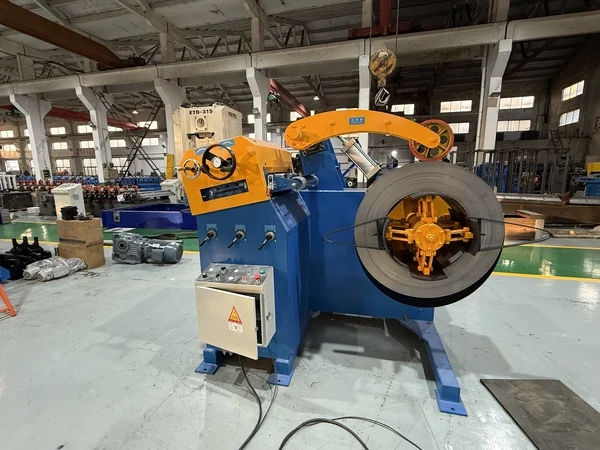

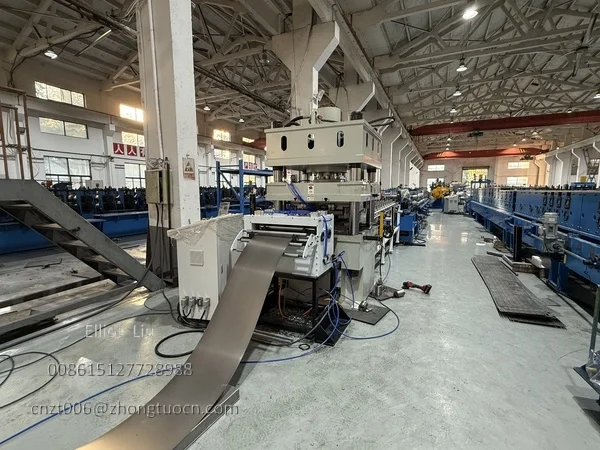

Decoiler → Servo feeding unit → Punch press (punching and cutting) → Conveying platform → Roll forming → Finished product output

All stations run automatically without manual handling between them. The steel coil goes through uncoiling, feeding, inline punching and cutting, conveying, and multi-pass roll forming before coming out as finished trays. This cable tray roll forming machine ensures consistent output across all production runs.

How a perforated cable tray forming machine works

Continuous production: the steel strip moves through all stations without stopping

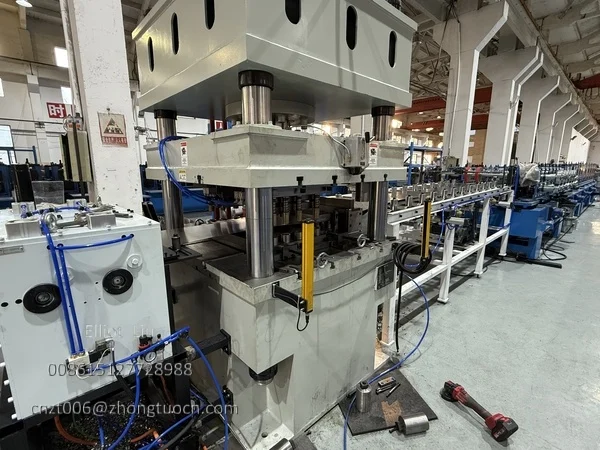

Automatic punching: punching and cutting happen at the same station

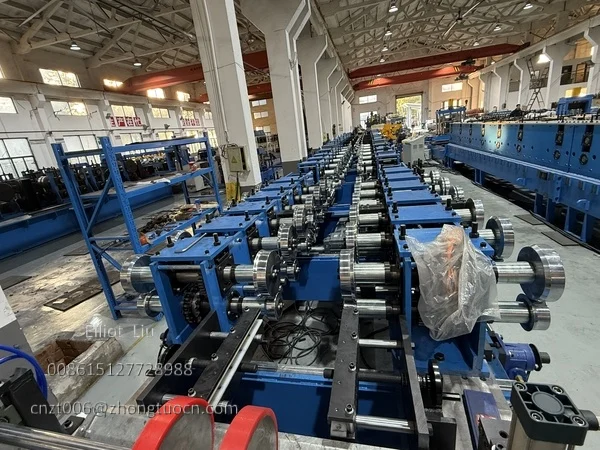

Roll forming: multiple roller passes gradually bend the flat strip into a U shaped profile

PLC control: the system runs automatically with adjustable parameters for size changes

Technical Specifications with Equipment Components

The following parameters come from the actual machine configuration.

The parameters above can be adjusted based on customer requirements. This cable tray roll machine offers configuration flexibility for different production needs.

Common Production Challenges and How Automation Addresses Them

Traditional tray production separates operations: flat sheets, outsourced punching, then bending. Each step needs different equipment and workers. Misalignment causes installation issues.

A cable tray production line integrates all steps in one pass. This reduces handling and waste. The adjustable width feature removes the need for separate molds for each size. This roll forming machine cable tray setup delivers consistent quality while minimizing manual intervention. Share your requirements and we will give you a solution.
